What does a pre charged pressure tank do

The pre-charge tank function ensures a minimum pressure. A designer will typically determine this based on building height, minimum pressure needed at each fixture, or what will result in the greatest system protection.

How do pre charged pressure tanks work?

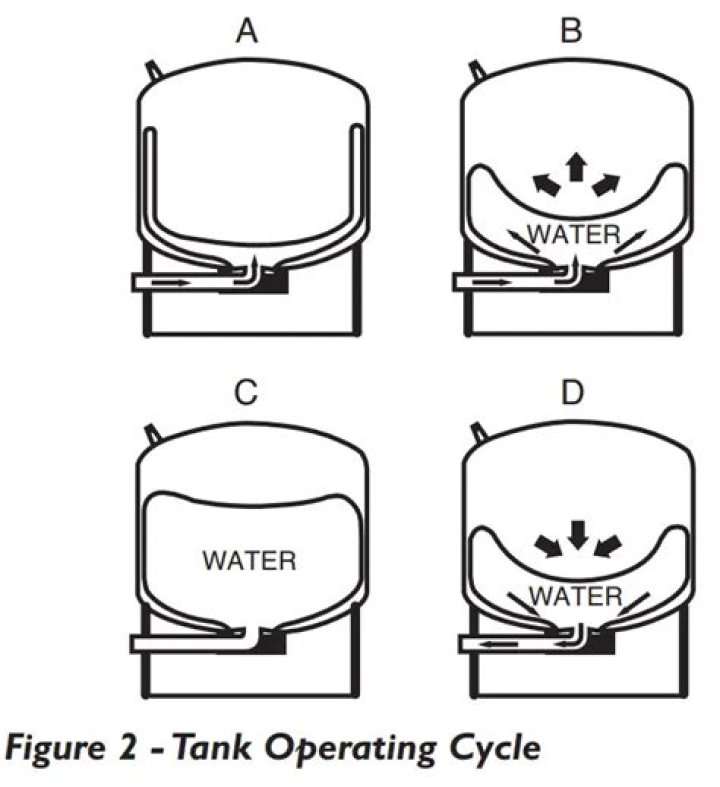

A “pre-charged” tank has a separate air bladder within the tank. It typically has about 35 PSI air pressure in it when delivered (think of a tire inner tube inside the tank. When all plumbed into your water system, your well pump will deliver water to the tank. The water will Squeeze” this bladder as it fills the tank.

What happens if pressure tank pressure is low?

If tank pressure drops, the bladder may have a tear or hole in it. A tank is waterlogged if it is completely filled with water or has too much water to function correctly. Waterlogged bladder pressure tanks contribute to the following problems : The pump motor cycles – turns on and off – too often.

What is the purpose of pressure tank?

A pressure tank creates water pressure by using compressed air to bear down on the water. When a valve is opened, water is pushed out by the compressed air in the tank. The water is pushed throughout the plumbing in the house until the pressure drops to a preset low on your pressure switch.

Do pressure tanks come pre pressurized?

Pressure tanks use compressed air to create water pressure within the tank. A pressure tank is constructed with an air chamber or bladder and comes with a pressure pre-charge. As the tank fills up with water, the weight of the water will begin to compress the air.

Is a pressure tank necessary?

Possible Pressure Tank Problems A pressure tank is important because it keeps water pressure at a constant level. It also keeps the water and air separated. Without these features the water pump would turn on and off quickly – a problem caused cycling – which can quickly burn out the pump motor.

What does pre charge pressure mean?

The pre-charge pressure is set to equal the cold-water static or no flow condition. For example, if the supply line pressure is 60 psi, the pre-charge within the expansion tank should be set to 60 psi. As water flows, the flow pressure drops below static pressure.

What PSI should pressure tank be?

Your well tank’s pressure should be set at 2 psi below the pressure switch’s cut-on point. This differs depending on your tank’s pressure settings. Most well tanks come set at 30/50. The cut-on pressure for the well pump is 30 psi, so the pressure of the tank should have a pressure of 28 psi.

How do you know if your bladder tank is bad?

You can check the gauge down at the bottom and if you’re running water of any sort and that pressure is bouncing up to your top, which is 60 PSI (usually), down to a 40, and it’s doing that a lot and its very frequent, then usually that is a bad tank.

Can you add air to a water pressure tank?

Pump air into the water pressure tank while watching the water tank pressure gauge. We recommend starting by adding just 5-10 psi of air into the tank. If you have a bicycle pump you can simply clip the pump business-end onto this valve and pump air into the tank without going through any other rigmarole.

Article first time published on

What causes a well to lose water pressure?

The cause could be clogged pipes or a clogged well casing from a buildup of sediment and minerals. It could also be an improperly placed well pump. If the pump is placed too close to the top of the well’s water level, it will reduce water flow.

How do you know if your pressure tank is waterlogged?

You should also check a bladder tank to determine if it’s waterlogged. A tank is waterlogged if it is completely filled with water or has too much water to function correctly.

Is 70 psi too high for water pressure?

How High Is Too High? The ideal water pressure level is between 50-70 PSI. If your water pressure goes above 70 PSI (even occasionally), you should install a pressure regulator to your main water line.

What is the purpose of bladder tank?

A bladder tank is a large, flexible container used to store many types of liquids. When maximum capacity is reached, the bladder tank takes the form of a large pillow, hence it is also called a pillow tank.

How long does a bladder tank last?

It is a type of tank containing pressurized air and water separated by a membrane (bladder) and pre-charged with air at the factory. On average, a bladder pressure tank lasts 5–7 years.

Is a 20 gallon pressure tank big enough?

A 20 GPM pump needs a tank with 20 to 40 gallons of storage. Almost 2/3s or more of a tanks volume is filled with compressed air, it takes a very large tank to hold 10 to 40 gallons of water. The higher the pressure switch setting, the less water volume a tank can store.

How do you fix a water pressure bladder tank?

1. Turn off the power to the pump. …
2. Attach a garden hose to the drain on the tank. …
3. Open the valve and drain all the water out of it. …
4. Shut the valve. …
5. Flip the breaker or switch to turn the power back on to the pump.
6. Listen to the pump.

What is the difference between an expansion tank and a pressure tank?

The most significant difference between expansion and pressure tanks is their functionality. An expansion tank handles water expansion and provides protection for water valves and heaters. On the other side, the pressure tank lengthens the lifespan of the pump.

What happens when expansion tank fails?

Oftenthe diaphragm dividing the two systems will fail, causing the two systems to become one. When this happens, the expansion tank turns into a “dead leg” that will eventually cause damage and premature failure to your water heater.

How does a bladder expansion tank work?

A bladder expansion tank is a system which is used for heating and cooling purposes by absorbing the expansion force. It uses compressed air to adjust with the pressure changes by eliminating or accepting the water volume changes as it expands or contracts due to heating and cooling.

Can you install a well without a pressure tank?

Not really. You can do that if you only turn on the pump when you’re consuming water. You don’t want the pump running if no water is moving. You’ll wear it out.

Why does my pressure tank keep turning on and off?

Short cycling of a water pump which is defined at SHORT CYCLING WATER PUMP means that the water pump or “well pump” turns on and off too rapidly or too frequently when water is being run in the building. … The most-common cause of pump short-cycling is loss of air in the water pressure tank.

Can a well not have a pressure tank?

Yes they can operate without a pressure tank but doing so will wear out the pump much quicker with the on and off cycling. They do install buried pressure tanks, for various reasons, which is possibly what you have.

How often should a pressure tank cycle?

Normal well pump operation with a pressure tank will give a water volume draw-down cycle of 30 seconds to 1-2 minutes for a typical water pressure tank, or much longer if larger water pressure tanks or water storage tanks are installed.

What is normal water pressure for a house with a well?

Normal well water pressure should fall between 40 and 60 psi, so if your pressure is outside the normal range, adjust the pressure switch.

What happens if my water pressure is too high?

This is a serious concern—water pressure that’s too high is difficult to contain, and could leak to plumbing leaks, worn seals, and damaged fixtures. It could even shorten the lifespan of your appliances that depend on a water connection like your washing machine, ice maker, dishwasher, and more.

What size water pressure tank do I need for my well?

General Rule of Thumb for Sizing a Pressure Tank 0-10 GPM: 1 gallon of drawdown per 1 GPM of flow. 10-20 GPM: 1.5 gallons of drawdown per 1 GPM of flow.

When should I add air to my pressure tank?

Release or add air as necessary to make the pressure 2 psi below the pressure switch pump cut-in setting. For example, if you have a pressure switch setting of 30/50 psi, you pressure measured at the top of the tank should read 28 psi. Air can be added with a compressor or bicycle pump.

What is the difference between a 30 50 and a 40 60 pressure switch?

a 30-50 switch turns on at 30lbs pressure and turns off at 50. and like wise the 40-60 turns the pump on at 40lbs and off at 60. If your pump only has a maximum head pressure of 50lbs the 40-60 will not work for you because the will not be able to reach 60lbs and the pump will never shout off.

How deep should a well be for drinking water?

For drinking water wells it’s best to be at least 100 feet deep so that surface contaminants cannot enter the well. The average well depth for private homes is between 100 to 800 feet [2]. You may need a deeper or shallower well if your area has different geology than another region of the country.

How do I increase well water pressure?

The simplest way to increase your well water pressure is to adjust the pressure switch on your pressure tank. Pressure tanks have both “cut-on” and “cut-off” pressure settings. When the water pressure in your tank drops below the cut-on level, the pressure switch activates and increases the pressure in the tank.
