What gauge wire is 12 3

The designation 12/2 indicates AWG 12 wire with two conductors (AC hot and AC neutral), 12/3 indicates AWG 12 wire with three conductors (two AC hot and AC neutral). Both designations also typically include a smaller bare copper earth ground conductor.

What gauge wire is 12 3? - Google Search

Cable TypeNM-BWire Size12 AWG# of Conductors3 Conductors w/ GroundConductor MaterialBare CopperAmpacity20

What is a 12-3 wire for?

ROMEX® 12/3 wire is used in buildings for circuits that use higher amperage than the standard 20 amps. Most people are not familiar with this type of wire because it is used to hook up heavy-draw appliances such as water heaters and central air conditioning.

What gauge wire is 12-2?

“12-2” means 12 gauge, two insulated current carrying wires, plus a bare ground. 12-2 wire usually has a black, white and bare ground wire.

What is the difference between 12-2 and 12/3 gauge wire?

A 12-2 Romex will have a black(hot) and a white(neutral) wire as well as an unsheathed copper wire for ground. A 12-3 Romex will have a black(hot), red(hot), white(neutral), and bare copper. The red on a 12-3 is used for three-way light switches which are covered later.

Can you use 12 3 wire lights?

12/3 is used for things like 3 way light switches, but that would not normally connect to the circuit breaker. 12/2 and 12/3 both usually have a bare ground wire as well.

How thick is 12 3 Romex?

Amps20Insulation Thickness0.015″Jacket MaterialNylonJacket Thickness0.004″Length50 ft

What color is 12 gauge wire?

Yellow color-coded cable sheathing encloses 12-gauge wires. Yellow 12-gauge cable is typically used for 20-amp circuits that power general household outlets used for a variety of plug-in appliances.

Can I mix 12 gauge and 14 gauge wire?

Can you mix 12 gauge and 14 gauge wire? – Quora. If we are speaking of the US the answer is yes however, even if the supply is 12AWG, the breaker must be replaced with a 15 Amp breaker becuase the 14 awg wire is the smaller load carrying conductor.

How do I know if my wire is 12 or 14 gauge?

Here’s a simple visual. Twelve gauge is about the thickness of a nickel, and 14-gauge is about the thickness of a dime. Also, look at the breaker for the circuit in question to see if it’s a 15-amp or a 20-amp breaker. A 20-amp circuit requires wire that’s 12-gauge or larger.

Article first time published on

Can you use 12 3 wire for a dryer?

It’s fine for the dryer. The washer was paid for on 12/2. A 220v/30 Amp Dryer circuit would use 10/3 with ground.

How many amps will 12/3 wire carry?

50 Foot of 12/3 SJOOW bulk electrical cable. Rated for 20 Amps, 300 max volts.

What is 3 wire Romex used for?

Three-wire Romex can be used to power two separate circuits that share the neutral. For example, here the black wire feeds a receptacle circuit, while the red feeds a lighting circuit. Although multiwire branch circuits are permitted by code in certain cases, the author doesn’t recommend them for residential wiring.

What type of wire is Romex?

Romex Cables Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC). NM and NMC conductors are composed of two or more insulated conductors contained in a non-metallic sheath.

What is 4 wire Romex used for?

Electrical junction box with multiple circuits. Connecting a 4-wire and a 3-wire circuit at a junction box is used to connect two 120-volt circuits to one 240-volt line. This configuration is used most often for large lighting arrays.

How much does 12/3 Romex weigh?

Weight: 26.75 lbs.

What is the difference between white and yellow Romex?

For example, white sheathing means that the inner wires are 14-gauge and yellow sheathing indicates that they are 12-gauge. … The National Electrical Code (NEC) says that white or gray must be used for neutral conductors and that bare copper or green wires must be used as ground wires.

How many receptacles can be on a 20 amp circuit?

The answer to the question how many outlets on a 20 amp circuit is ten outlets. Always comply with the 80% circuit and breaker load rule, allowing a maximum load of 1.5 amps per receptacle. Remember that your circuit, wire sizes, and outlets must be compatible to avoid overheating and electrical hazards.

How far can you run 12/3 gauge wire on a 20 amp circuit?

After these distances, the circuit will go over the recommended 3% voltage drop. You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.

Can I use 12 gauge wire for lights?

If you’re wiring a circuit on which there are both lights and outlets, or you just aren’t sure which wire gauge to use, you can’t go wrong by choosing a 12-gauge wire. It’s not quite as flexible as a 14-gauge wire, and it costs a bit more, but it’s always a safe choice on a 15- or 20-amp circuit.

What is the difference between 12/3 and 14 3 wire?

16/3 is a common size used for household appliances such as vacuum cleaners. 14/3 is often used for heavy duty extension cords. 12/3 would only be used for industrial purposes. Most kitchen appliances and many other home equipments are double insulated and don’t need a ground wire, so they have a 16/2 cord.

What happens if you use 14 gauge wire on a 20 amp circuit?

Originally Answered: What happens if you use a 14 gauge wire on a 20 amp circuit? 14 gauge wire is rated for 15 Amps. A 20Amp breaker/fuse would risk fire. The wire gets hot enough to melt the insulation and start fire.

Can you run 12 gauge wire on a 15 amp breaker?

Because it has even less chance of overheating, 12-gauge wire is also acceptable on a 15-amp circuit.

How do I know what size wire I have?

Look at the insulation on the cable. Search for text written on the insulation. The last numbers in each string of text represent the AWG of the wire.

How do I know what gauge wire to use?

To determine what gauge wire you need, consider the carrying capacity and the amount of current the wire needs to conduct (measured in amperage or amps). Wire gauge is directly related to how many amps you need to run through it. The distance you need the wire to go can also impact the gauge of wire you need.

What is the color code for 3 phase wiring?

Phase 3 – Phase 3 wiring should be yellow. Neutral – Neutral wires should be grey. Ground – Ground wiring should be green, or green with a yellow stripe.

What is a 14 3 wire used for?

14–3 cable (14 AWG–3 insulated conductors) allows you to have two separate hot conductors sharing the same neutral. This is generally required for three- and four-way switches, but I also prefer to use it for the last leg of a circuit from the switch to the fixture.

Which is bigger 12 or 14 gauge wire?

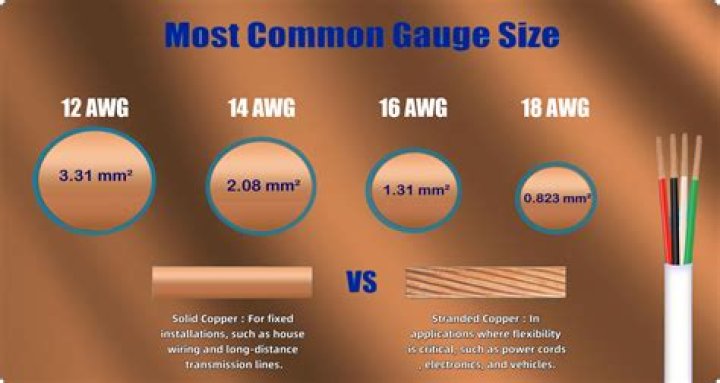

The diameter of 12 AWG wire is 0.0808 inches, while 14 AWG is 0.0641 inches. The thickness of 12 AWG wire is 26% more than the thickness of 14 AWG wire.

Is it OK to splice Romex?

It must be noted that while it is possible to splice different types of Romex wire—12/2 to 12/3, for instance—you should never splice together wires of a different gauge. … Overloading a wire with more than its intended amperage could cause it to overheat, melt, and possibly catch fire.

Can you pull Romex through PVC conduit?

7 Answers. Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

What gauge wire do I need to wire an electric stove?

The power demand of ranges varies depending on the rating of the appliance, but in most cases, a 50-amp 240-volt circuit is required, wired with #6-gauge wire. Smaller ranges may require a 40-amp circuit, wired with #8-gauge wire.
