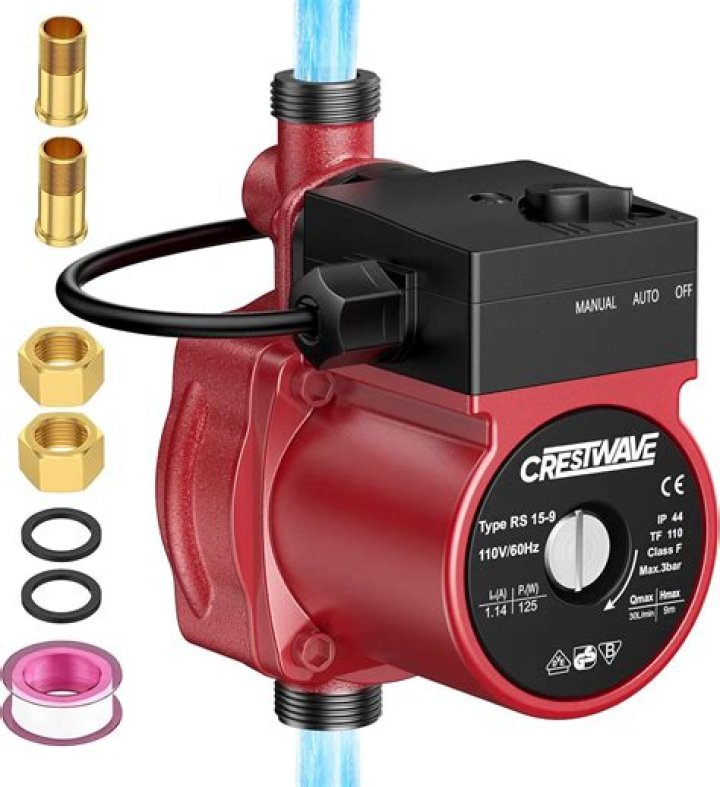

What is a boiler circulating pump

A circulating pump is a water pump that moves hot water around your heating system. The water travels from your boiler through to the pipes that feed your radiators, towel rails, and hot water cylinder. The water then flows back to the boiler to maintain a constant flow of heated water around your home.

What happens if circulator pump fails?

Circulator Pump Malfunctions Water will still circulate through the boiler’s system via convection should the pump break… but it will be very weak. This will result in a drop in heating power, and when you notice it you should immediately call for repairs.

How do I know if my boiler circulator pump is bad?

1. The water flow pipe isn’t hot despite the pump running.
2. A water leak coming from the pump.
3. The pump is making unusual noises.
4. The pump casing feels hot.
5. Some or all of your radiators aren’t heating up.
6. You have no hot water.

What is the difference between a pump and a circulator?

So is an oil pump on an oil burner. … When those machines start, you expect to get a pressure on the outlet side of the pump that’s greater than the pressure on the inlet side of the pump. A circulator is different because it’s working within a closed, pressurized hydronic system.

How much does it cost to replace a boiler circulator pump?

Replacing a failed circulator pump can cost as little as $400 or as much as $750 or more for the parts and labor at the time of publication. Cost of just the circulator pump itself falls in the range of $100 to $300 depending on the model your system needs.

How long does a circulating pump last?

How long does a circulating pump last? If your central heating system is installed correctly and maintained regularly, you can expect this pump to last for a very long time. Usually, they keep going for well over ten years, and some last for 20 years or more.

Do circulator pumps push or pull?

The circulating pump consists of two main parts, the pump and the motor. … The pump pulls water in through the inlet and pushes it out through the outlet. Typically, there will be an arrow on the casing to identify the direction of flow so you know which is the inlet and outlet.

How do you check if a circulating pump is working?

To determine whether your pump is working, gently place your hand on the pump. You should feel aslight vibration and the pump should be warm to the touch if it has power. What is causing it? If your boiler has power, but your pump does not, it could be due to an issue with the wiring or the fuse.

Does a circulator pump increase water pressure?

The circulators in the system should be located so they are “pumping away” from the expansion tank. … The reason is the circulator is not pushing or pulling the water around the system, but rather it is circulating the water through the system. The circulator does not create pressure, only pressure differential.

How much does a circulation pump cost?

The price tag of a hot water recirculation pump is around $200 and most can be installed by the consumer but some require a plumber. In addition to this fixed cost, there are two variable costs to consider, the energy used by the pump, and the additional water heating required.

Article first time published on

Why is my boiler dripping water?

Corroded pipes, high pressure and loose joints are all common causes of a boiler leaking water. If your boiler was only installed recently, the leak could be down to poor installation. Should you spot even the slightest leak, contact a heating engineer right away.

Should circulation pump be on all the time?

However, we don’t know whether your boiler is designed to maintain a minimum core temperature or not. If so then you absolutely shouldn’t run the system circulator all the time since it would perpetually heat your house by forcing the boiler on to maintain the core temperature.

What are circulation pumps used for?

Circulating pumps are often used to circulate domestic hot water so that a faucet will provide hot water instantly upon demand, or (more conserving of energy) a short time after a user’s request for hot water.

Where do you put the circulator pump on a boiler?

From a water flow point of view, a circulating pump can be placed in the boiler feed or the boiler return.

Why does my circulator pump make noise?

The air in the system leads to noise. … The pumps may be oversized for the system in question. To fix this, throttle the pressure-side valves until the noises are eliminated. The water in the system is boiling because the pump is undersized.

How does a heating circulator work?

The circulator pump contains an electric-powered impeller motor that removes the hot water from the tank to circulate through the pipes to the baseboard heaters or radiators. At the same time, the pump draws in cold water to start the heating cycle.

How do I increase water pressure in my pipes?

Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.

What can cause low water pressure in the house?

• Your Water Supplier is Experiencing an Issue. …
• Your City Has Changed Its Regulations. …
• The Main House Shutoff Valve Isn’t Open All the Way. …
• The Water Meter Valve Isn’t Open All the Way. …
• The Pressure Regulator is Failing. …
• The Pipes Are Clogged. …
• The Pipes Are Corroded.

How do you test a heating circulation pump?

1. Step 1: Find the Pump. …
2. Step 2: Visibly inspect the pump for damage. …
3. Step 3: Turn off the power supply. …
4. Step 4: Loosen the silver plate. …
5. Step 5: Remove the silver plate. …
6. Step 6: Check if the pump shaft has seized. …
7. Step 7: Turn the power back on. …
8. Step 8: Bleed the system.

Why is my boiler not circulating hot water?

Air trapped during bleeding the radiator CAUSE: Another cause of hot water radiators not circulating could be trapped air. If you have recently bled your radiator, then chances are that some air may have trapped inside. This trapped air could be leading to the circulation problem.

Why is the overflow pipe from boiler dripping?

Your boiler’s overflow pipe may leak water if: The boiler has built up too much pressure due to the expansion vessel failing or losing its charge. The pressure relief valve is not seated correctly, causing water to pass by it.

What number should boiler pressure be on?

The ideal pressure for your boiler is usually between 1 and 2 bars, but it’s possible it could go up to 2.5 bars when your heating is on. Check the boiler manual to find out exactly what it should be for your boiler make and model. If the boiler pressure is below 1, that means low pressure.

How do I release the water pressure from my boiler?

1. Switch off your boiler and wait for the heating system to cool.
2. Identify and check the boiler pressure gauge.
3. If it’s above 2 bars, you’ll need to reduce the pressure.
4. Ensure the filling loop or relief valve is tightly closed.

Why does my boiler pump keep running?

In the past, we’ve seen pumps constantly running due to: Faulty PCBs (the circuit board on the boiler). Pump overrun stat is faulty. The mid position valve is sticking (this can be lubricated with WD40).

Why is my boiler still running when thermostat is off?

Water valves open and close to allow or prevent hot water from flowing through your water heating system. … When this occurs, hot water will keep flowing through your boilers even if your timer is turned off.
