What is a characteristic of single mode fiber optic cable

Single Mode fiber optic cable has a small diametral core that allows only one mode of light to propagate. Because of this, the number of light reflections created as the light passes through the core decreases, lowering attenuation and creating the ability for the signal to travel further.

What are characteristics of fiber optic cable choose two?

• It is not affected by EMI or RFI.
• Each pair of cables is wrapped in metallic foil.
• It combines the technique of cancellation, shielding, and twisting to protect data.
• It typically contains 4 pairs of fiber-optic wires.

Which characteristics describe advantages of fiber networking?

• Secure Communication: Fiber optic cabling is considered one of the most secure means of communication. …
• Electromagnetic Compatibility: Fiber optic cabling is resistant to many of the outside forces that degrade copper cabling. …
• Speed: …
• Distance:

What are single mode optical Fibre used for?

Single-mode fiber is a common type of optical fiber that is used to transmit over longer distances. It is one of the two optical fiber types, the other being multi-mode fiber. A single-mode fiber is a single glass fiber strand used to transmit a single mode or ray of light.

What are characteristic features of satellite Internet connections?

Which of the following answers refers to an international standard for high-speed data communications over fiber-optic media?SONETWhat are the characteristic features of satellite Internet connections?Signal latency Interference (weather dependent) Low connection speed

What is the meaning of single mode?

Single Mode (SM) and Multimode (MM) are the names given to two competing designs of optical fiber based on how many paths of light are transmitted along the fiber core – single mode, meaning “one path”, or multimode, meaning “more than one path.” A mode can be described as a “path” or “ray” of light in the core of the …

What is single mode fiber type?

In optical fiber technology, single mode fiber (SMF) or monomode fiber, is an optical fiber that is designed for the transmission of a single ray or mode of light as a carrier to propagate at a time.

What are the characteristics of optical fiber cable What are the advantages and disadvantages of optical fiber?

• Bandwidth is higher than copper cables.
• Less power loss and allows data transmission for longer distances.
• The optical cable is resistance for electromagnetic interference.
• The size of the fiber cable is 4.5 times better than copper wires and.

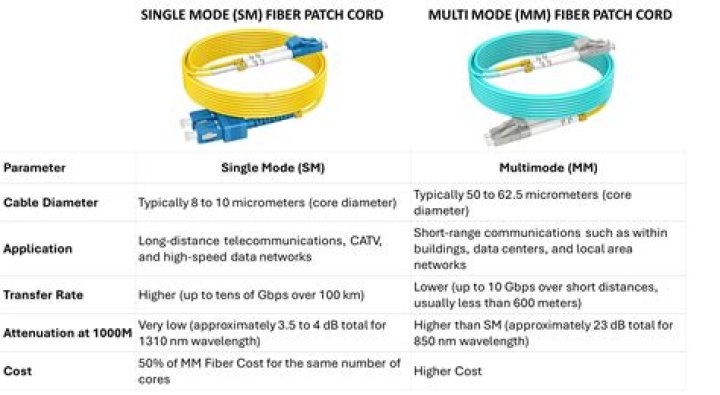

What is the difference between single mode fiber and multimode fiber?

single mode fiber is designed to propagate a single light mode whereas multimode supports multiple simultaneous light modes. This difference impacts bandwidth, signal transmission distance and signal stability which we’ll explore later.

What is the difference between single mode cables and multi mode cables?

The main difference between singlemode and multimode fiber patch cables is the size of their respective cores. Singlemode cables have a core of 8 to 10 microns. … In multimode cables, the larger core gathers more light compared to singlemode, and this light reflects off the core and allows more signals to be transmitted.

Article first time published on

What are the advantages of optical fiber cables?

• Better bandwidth. Fibre optic cables have much greater bandwidth than metal cables. …
• Higher bandwidth means faster speed. …
• Longer transmission distances. …
• Greater flexibility. …
• Improved latency. …
• Stronger security.

What is fiber connection internet?

Fiber-optic internet, commonly called fiber internet or simply “fiber,” is a broadband connection that can reach speeds of up to 940 Megabits per second (Mbps), with low lag time. The technology uses fiber-optic cable, which amazingly can send data as fast as about 70% the speed of light.

What's better fiber-optic or satellite?

Fiber-optic Internet offers a much higher bandwidth capacity than satellite or broadband. Fiber-optic Internet offers greater reliability, as fiber cabling is much stronger than copper cables and is more resistant to weather conditions, fire hazards, power outages and electromagnetic interference.

What is cable DSL?

DSL stands for digital subscriber line. It is a type of connection that transmits data over a telephone network through a telephone cable. DSL is the most popular connection in the world. … Unlike cable, DSL bandwidth is not shared. But on the downside, DSL internet speeds are affected by how far you are from your ISP.

What color is single mode fiber?

Fiber optic cable jacket colors can make it fast and simple to recognize exactly which type of cable you are dealing with. For example, the color yellow clearly identifies a single mode cable, while orange indicates multimode.

How many strands does single mode fiber have?

Single Mode fiber is a single strand of glass fiber with a diameter of 8.3 to 10 microns that has one mode of transmission.

Is single mode fiber bidirectional?

Understanding Single Strand Fiber Transmission Single strand fiber transmission use a single strand of glass (optical fiber) to send data in both directions, namely bidirectional (BiDi) transmission.

Why single mode fiber are used in commercial communication systems?

Designed for long-distance communication, a single mode fiber cable allows light signals to travel more than 10 miles, a much longer distance than multimode. Single mode fiber also accommodates much higher bandwidths than multimode.

Why single mode fiber is used for long distance communication?

Single Mode fibers are used for high speed data transmission over long distances. They are less susceptible to attenuation than multimode fibers.

What wavelength is single mode fiber?

There are three main wavelengths used for fiber optics—850 nm and 1300 nm for multi-mode and 1550 nm for single-mode (1310 nm is also a single-mode wavelength, but is less popular).

What is the difference between single mode fiber and multimode fibers quizlet?

What is the difference between single mode and multimode cables? Multimode fiber has a relatively large light carrying core, usually 62.5 microns or larger in diameter. … Single-mode fiber has a small light carrying core of 8 to 10 microns in diameter.

What are 7 advantages of fiber optics?

• Greater Bandwidth. Copper cables were originally designed for voice transmission and have a limited bandwidth. …
• Faster Speeds. …
• Longer Distances. …
• Better Reliability. …
• Thinner and Sturdier. …
• More Flexibility for the Future. …
• Lower Total Cost of Ownership.

What is difference between fiber and cable?

The difference between cable and fiber is that cable is sent over copper TV lines, while fiber is made of plastic and designed specifically for internet service. … Cable TV lines (cable). Cable internet reaches your home through the same coaxial cables that your TV service likely uses.

How does fiber optic cable work?

How Do Fiber Optics Work? Light travels down a fiber optic cable by bouncing off the walls of the cable repeatedly. Each light particle (photon) bounces down the pipe with continued internal mirror-like reflection. The light beam travels down the core of the cable.

What is fiber optic cable made of?

Fiber optic cable is made of many thin strands of coated glass fibers. Each measures about eight microns – that’s smaller than a strand of human hair. Digitized information is “coded,” or placed on to light pulses for transmission.

How is fiber optic cable installed?

Fiber optic cable may be installed indoors or outdoors using several different installation processes. Outdoor cable may be direct buried, pulled or blown into conduit or innerduct, or installed aerially between poles.

What are the 3 types of internet?

• Mobile. Many cell phone and smartphone providers offer voice plans with Internet access. …
• WiFi Hotspots. …
• Dial-Up. …
• Broadband. …
• DSL. …
• Cable. …
• Satellite. …
• ISDN.

What is the fastest type of internet?

Fiber-optic internet is the fastest type of internet. Across the US, fiber internet providers ranked highest in our speed analysis. Cable internet also made a good showing among the fastest internet service providers in the US.

Which connection is best for internet?

The best type of internet is fiber-optic internet because it’s extremely efficient, reliable, and fast. In most cases, fiber tops out at 1,000 Mbps for both download and upload speeds.

What is the difference between fiber and DSL?

It’s simple — fiber is fast. While DSL uses copper phone lines to transmit data, fiber uses ultra-thin glass strands that carry light instead of electricity. Since light can travel very quickly through the fiber-optic cables, fiber connection can see gigabit speeds 100x faster than DSL.

What is difference between DSL and cable?

DSL and cable internet are different in how they deliver internet to your home. DSL internet runs through standard phone lines that are wired into your home. Cable goes through the cable lines. There is more bandwidth with cable, so cable is usually faster.
