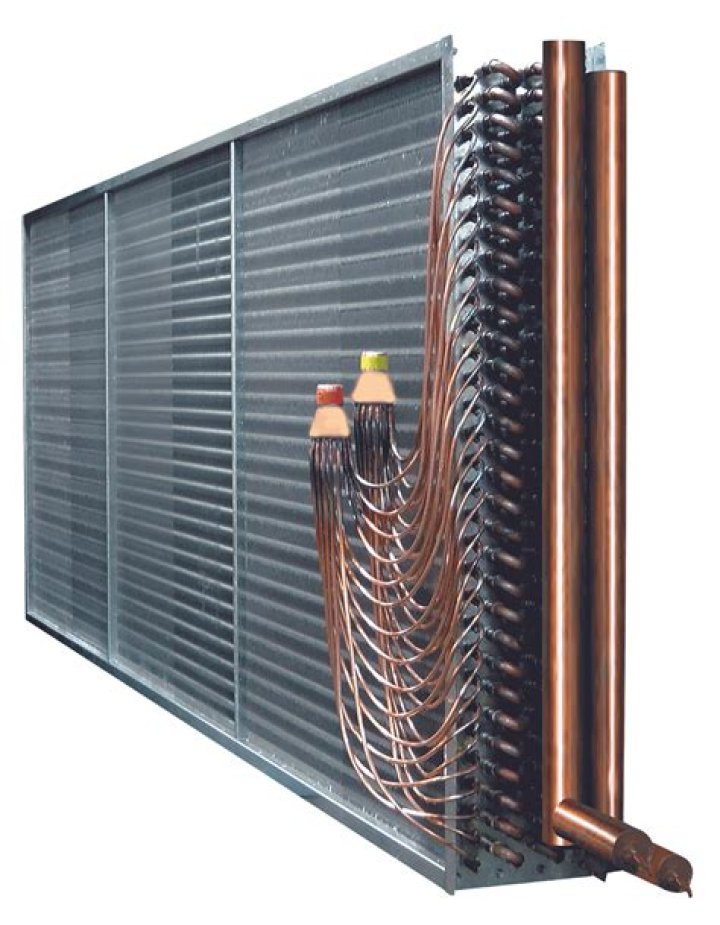

What is a flooded evaporator coil
Rachel Hunter
Published Feb 13, 2026
A flooded evaporator is the opposite of the starved coil. Too much refrigerant is passed through the evaporator coils, resulting in unexpanded liquid passing onto the suction line and into the compressor.
What would the symptoms of a flooded evaporator be?
A telltale sign that a compressor’s crankcase is being flooded with refrigerant will be a cold, frosted, or sweaty crankcase. You may also see foaming oil in the sight glass with a low oil level. Higher-than-normal current draws also will be present.
What causes the evaporator to flood?
Compressor floodback is a common cause of HVAC/R system failure. Floodback occurs when uncontrolled liquid refrigerant enters the compressor during system operation. In an HVAC/R system, the refrigerant exits the evaporator and enters the compressor in a vapor state.
What does flooded evaporator mean?
Flooded evaporators: Typically used in large applications, they come in several types and technologies but essentially, a flooded evaporator is a container for liquid refrigerant. It becomes cold because of evaporation of the refrigerant as it boils off and exits.What is an advantage of a flooded evaporator?
Characteristics of flooded systems. An advantage of flooded evaporators is that the potential problem of poor refrigerant distribution in the evaporator is reduced. The refrigerant is 100% liquid, and a liquid stream is much better distributed between the channels compared with the two-phase mixture of DX systems.
What is a flooded chiller?
The flooded evaporator is a device which is used to control and maintain the required level of liquid refrigerant in evaporator and this evaporator is used to store the liquid refrigerant with the help of a drum. Flooded evaporator helps to run the refrigeration system cleanly by maintaining the constant liquid level.
What is the difference between a flooded and a dry type evaporator?
The main difference between dry and flooded evaporators is that the flooded evaporator is full of liquid refrigerant. … The dry evaporator design is the most common: the liquid refrigerant enters and flows through the evaporator and is slowly boiled off (evaporated), leaving the evaporator as a vapor.
How can flooded starts be prevented?
How can flooded starts be prevented? install a crankcase heater or pump-down solenoiD.What are the application of flooded evaporator?
Flooded evaporators for air condition- ing and process cooling applications where the primary driving force is energy efficiency improvement, es- pecially at part load conditions.
What are symptoms of a dirty coil?- Air Conditioning Loses Cooling Capacity. …
- Air Conditioning Runs Longer. …
- Coil Develops Frost During Operation. …
- Have an HVAC Professional Clean Your Coils.
What is a flooded start?
Liquid: Flooded starts are described as the compressor starting with liquid refrigerant present within the shell or body of the compressor. To understand how this liquid refrigerant becomes present in the compressor, we must first understand how refrigerant migrates.
What is a flooded condenser?
Flooded condensers are the prime tower pressure-control methods for total condensers that generate only liquid products, and although these control methods can be troublesome, a good understanding of their principles will help achieve improved, trouble-free operations Pressure is the most important variable for …
What is the correct superheat for a flooded evaporator?
When ambient air temp (Outside air temp) is 75-85 degrees the superheat should be 12-15 degrees, if the ambient temperature is 85 degrees or over the superheat should be 8-12 degrees. 5. If superheat is low then flooding the evaporator. Note: Do not adjust charge yet.
How does a flooded evaporator work?
In the flooded evaporators, a pool of refrigerant in the shell is submerging the tubes to a set level. The refrigerant pool in the shell behaves as a flywheel, allowing the control of the flooded evaporator to successfully track the varying load of a batch process. …
What are some typical problems on the liquid side of a liquid cooling evaporator?
Moisture from the air freezes onto the evaporator coils (the cooling coils in the freezer) and forms an insulating barrier to heat transfer. Airflow also decreases as the passages narrow due to ice buildup. Each evaporator has a defrost cycle to melt frost/ice that has built up on the evaporator coils.
What are the types of evaporator?
- Natural/forced circulation evaporator.
- Falling film evaporator.
- Rising film (Long Tube Vertical) evaporator.
- Climbing and falling-film plate evaporator.
- Multiple-effect evaporators.
- Agitated thin film evaporators.
- Problems.
- Marine use.
Which type of evaporator is used in household refrigerators?
The household fridges use plate surface evaporators. The coil is attached to the plate in the form of an evaporator. The internal and external surface of the finned evaporators are made of the same copper coil.
How an evaporator can dehumidify the air?
When air passes through an evaporator, its temperature is reduced below the dewpoint temperature, causing moisture to condense out of the air. That moisture is the humidity in an occupied space.
What difference is there between handling Zeotropes and Azeotropes?
What difference is there between handling zeotropes and azeotropes? Zeotropes must leave the cylinder as a liquid but azeotropes may leave the cylinder as either a liquid or a vapor. A general definition of refrigerant is: … By evaporating from a liquid to a vapor.
Why is the evaporator used?
Explanation: Evaporator is used to convert liquid refrigerant into vapor refrigerant by absorbing heat. The liquid coming from the expansion valve is converted into vapor and forwarded to the compressor for compression. Evaporator gives the refrigeration effect.
What is used to control the level of liquid refrigerant in a flooded evaporator?
A front valve is used as a throttling device which maintains a constant liquid level in the evaporator. Due to the heat supplied by the substance to be cooled, the liquid refrigerant vaporizes and so the liquid level falls down. The float valve opens admit more liquid and thus maintains a constant liquid level.
What is shell and tube evaporator?
The main function of Shell & Tube Type Evaporator is to act as a heat exchanger in a vessel form. This is mainly done to cool closed circuit for re-circulating fluid flow. … The refrigerants passed through the expansion device that passed into tubes and evaporates to produce a cooling effect.
For which of the following actions is the last part of the evaporator used?
For which of the following actions is the last part of the evaporator used? Heat flows from the product into the evaporator because: The evaporator is at a lower temperature than the product. How can a technician verify that a condenser and evaporator are an AHRI match?
What causes a bearing washout?
A cleaning of the compressor’s bearing surfaces, which causes lack of lubrication. It is usually caused by liquid refrigerant mixing with the compressor’s crankcase oil due to liquid floodback or migration.
Which one of the following is not a suitable application of evaporators?
Explanation: Heating is not a possible application of evaporators, whereas it is usually used for concentrating solutions as a feed to crystallization, re-evaporation of compressed liquids, refrigeration applications, and generation of vapours for process applications.
What is the difference between flooding and slugging?
What is the difference between flooding and slugging? Flooding is a little liquid refrigerant reaching the compressor; slugging is a lot of liquid refrigerant reaching the compressor all at once.
What would a teardown show if there was a lack of oil?
What would a teardown show if there was lack of oil? All rods and bearings worn or scored. What causes flooding and slugging? Compressor running too slow to pump vapor.
What kind of damage do high compression ratios cause?
The greater the vertical distance between points #2 and #4, the higher the compression ratio, which means that low suction pressure or high head pressure may result in higher compression ratios, poor compressor cooling, lower efficiency, and lower capacity.
How often should evaporator coils be cleaned?
To minimize energy usage and reduce utility costs, the A/C coils should be cleaned at least once a year. It is estimated that dirty evaporator and condenser coils can increase the energy usage of your air conditioning system by over 30 percent.
How do you clean evaporator coils without removing them?
Use a compressed air canister. One of the best ways to get the dirt and other debris out is to use compressed air. Blow the air into the coil to loosen the dirt. If there’s stubborn dirt, though, you might need to put the nozzle close to the bottom of the debris, along its side.
How do you test an evaporator coil?
Checking the evaporator coil A visual check of the evaporator coil often requires you to work in a tight space as you remove panels from the furnace or blower cabinet, and use a flashlight to see inside the coil assembly. Even then, you may not be able to make a thorough and accurate examination of the coil.
