What is a GFCI protected circuit

The ground-fault circuit interrupter

How do you know if a circuit is GFCI protected?

A GFCI receptacle is easily recognizable. Simply look for the test and reset button on the face of the outlet. When installed, any electrical device that is plugged in will be protected in the case of a ground fault. This also includes any electrical outlets that are connected on the same line.

What is a GFCI outlet and where is one needed?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

What does it mean to be GFCI protected?

A GFI, or GFCI – Ground Fault Circuit Interrupter device protects us from receiving electric shocks from faults in the electrical devices we use in our home. … The list of areas requiring GFCI protection has increased with every code revision.

Which outlets need to be GFCI protected?

The NEC mandates GFCI protection in many areas of the home: bathrooms, garages, outdoor receptacles, crawl spaces, basements, kitchens and anything within six feet of a sink or water source. While that may seem like a lot, the entirety of a home is not covered.

What causes a GFCI to trip?

Most often, when a GFCI “trips” it is the result of a faulty appliance plugged into the outlet or an outlet down circuit. … Simply push the TEST button to turn power off to the circuit which should cause the RESET button to pop up. You will need to hit RESET to turn the GFCI back on.

How many outlets can one GFCI protect?

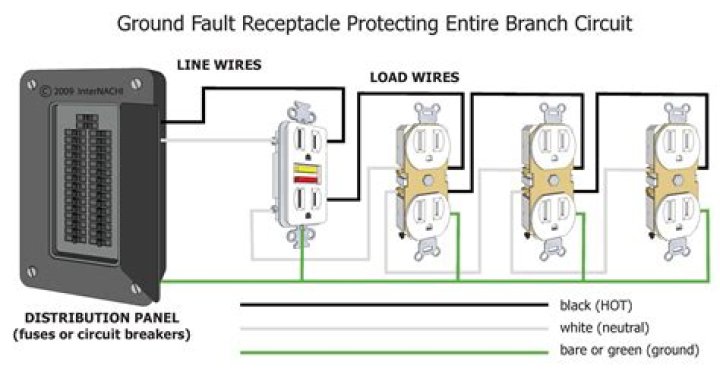

There’s no limit. A standard GFCI will protect up to 20 amps, drawn from any combination of receptacles, either the built-in one or any number of additional ones connected to its load terminals.

Can you install a GFCI without a ground?

A GFCI without ground wire isn’t ideal, but it’s better than a 2-prong outlet. A GFCI outlet will work without a ground wire and it’s legal. If the outlet shorts out for any reason, it will still trip for safety, even without ground. …

Can you replace a regular outlet with a GFCI?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. While it’s common to find GFCI outlets in bathrooms and kitchens, there are GFCI outlet requirements.

Will a GFCI trip before a breaker?

They’ll both trip When you go to reset the receptacle, it will be dead. You will need to go down to the basement to reset the GFCI breaker, and then, the GFCI outlet will have a chance of being reset.

Article first time published on

Can I install a GFCI outlet myself?

After you have removed the old outlet, you can begin replacing it with the new GFCI outlet. Using your needle nosed pliers or wire cutter, make sure the wires are straight and able to be put into the new GFCI outlet. As you begin, turn the outlet over. … You only want to be rewiring your GFCI outlet into the line screws.

Do I really need a GFCI outlet?

The NEC requires GFCIs on all exterior and bathroom receptacles (another term for outlets). GFCIs are also required on all receptacles serving kitchen countertops. … In bedrooms, living rooms, and other areas where water fixtures are not found, regular outlets are fine—and they are still installed in today’s new homes.

Do I really need a GFCI?

GFCIs are required by the National Electric Code (NEC) in all kitchens, bathrooms, crawl spaces, unfinished basements, garages, and outdoor receptacle locations. Outdoor outlets also require special boxes and covers. In addition, outdoor receptacles must be equipped with a weatherproof cover approved for damp areas.

Do you need GFCI in kitchen?

In kitchens, all outlets that serve countertop surfaces should be equipped with GFCI outlet protection. That would include any outlets on walls, behind wet areas (sinks, etc.) that have features such as countertop breakfast bars (open counter surfaces above sinks used to sit at on the opposite side).

Do all bathroom outlets need to be GFCI?

Bathrooms – All bathroom receptacles should have GFCI outlets installed. … Any outlets within six feet of this sink (and the dedicated washing machine outlet) should be equipped with GFCI outlets. Outside – All outlets installed outside of your home should be GFCI outlets.

Do AC condensers need GFCI protection?

This new expansion extends to hardwired equipment as well, except for snow-melting equipment and lighting outlets. This means that the condenser unit for an air conditioner needs to be GFCI protected, too.

Can you put 2 GFCI on the same circuit?

To save money, you can put in a single GFCI and then wire additional standard outlets to the “LOAD” output from the single GFCI. … This provides the same protection as having a GFCI at each location.

Does power go to line or load on GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

How do I know if my GFCI outlet is bad?

Look for GFCIs in bathrooms, kitchens, basements, garages and on the home’s exterior. …
If the GFCI won’t reset or the button doesn’t pop out when you press the “test” button, there may be no power to the GFCI or you may have a bad GFCI.

How long does a GFCI outlet last?

Electrical safety check All GFCI outlets have one little-known flaw: their circuitry eventually wears out, usually after about 10 years, at which point they no longer function properly.

When should a GFCI trip?

It takes only 5 mA (0.005 A) of current leakage from the hot wire to the ground to cause a GFCI to trip. A small amount of leakage current may be difficult to avoid in some normal circuits.

How much does it cost to replace a GFCI outlet?

The national average materials cost to install a gfci outlet is $19.71 per receptacle, with a range between $17.68 to $21.74. The total price for labor and materials per receptacle is $154.04, coming in between $140.26 to $167.83.

Do all GFCI outlets have a reset button?

It’s easy! All GFCI outlets have a reset button (typically red) in the upper center of the outlet. Find the GFCI outlet near the outlet that tripped. You will be able to tell the problem outlet because the red reset button will have popped out.

What happens if GFCI is not grounded?

If this “short circuit” occurs and there is no ground wire present, the current could find its way to ground through other building components in the wall, potentially causing a fire. Or, if you were to touch the plug at an inopportune time, the current could find its way to ground through your body, causing a shock.

What happens if a light switch doesn't have a ground wire?

Grounding light switches have become commonplace, used as a preventative safety measure. It is perfectly legal to wire a light switch without the inclusion of a ground.

How do you install a GFCI in an older house?

Take off the cover plate and unscrew the outlet from the box. Disconnect the wires and remove the old outlet. At the back of the GFCI are screw terminals marked “load” and “line.” The single screw at the bottom is the grounding screw. Attach both the black and white wires to the screw terminals on the line side.

Can a extension cord cause GFCI to trip?

Excessive lengths of temporary wiring or long extension cords can cause ground fault leakage current to flow by captive and inductive coupling. The combined leakage current can exceed 5 ma, causing the GFCI to trip.

How do I stop my GFCI tripping?

Make sure to protect the outlet with a hermetic or waterproof cover. If there’s water in the GFCI, trip the breaker and use a blow dryer to dry out the receptacle box. Once the outlet is completely dry, reset the GFCI. Unplug everything from the outlet and see if the GFCI stops tripping.

Will a GFCI trip on overload?

A GFCI (Ground Fault Circuit Interrupter) device only trips when there is a difference between the amount of current leaving it and the amount returning to it. So a GFCI receptacle outlet does not trip due to an overloaded circuit. …

Do you need an electrician to install an outlet?

While an electrical outlet may seem like a basic device, it’s best installed by a licensed electrician. An electrician can ensure your outlet is installed according to code, walk you through any additional requirements of your project, and pull any needed permits from your local authority.
