What is a rabbet door frame

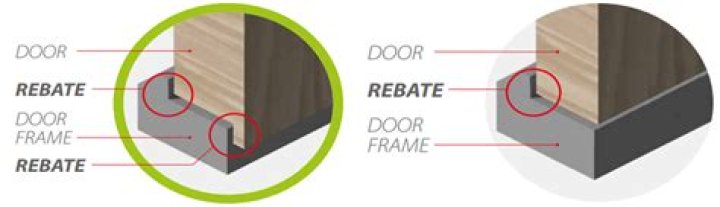

In woodworking terminology, a rabbet is a step-shaped recess cut along the edge or into the face of a piece of wood. The term “rabbet” is applied to hollow metal frames as well, and describes the part of the frame where the door sits when it is in the closed position.

What is the rabbit of a door?

A rabbet (American English) or rebate (British English) is a recess or groove cut into the edge of a piece of machinable material, usually wood. When viewed in cross-section, a rabbet is two-sided and open to the edge or end of the surface into which it is cut.

Which type of door frame is best?

Aluminum makes for an excellent door frame material. It is durable, resists the elements, and it is light enough to use as a sliding or swinging door. With modern advancements, it is even more energy efficient than aluminum door systems in the past.

What is a rabbit jamb?

A rabbeted jamb is milled into a wood door frame or made as part of a metal door frame. A stopped jamb is a wooden door frame with a seperate strip of wood nailed to it to stop the door from swinging through the frame. Rabbetted jambs are generally found on exterior doors and stopped jambs on interior doors.

What is a rabbet and dado joint?

A rabbet is like a dado that’s missing a side. It’s essentially a notch cut into the edge of a board or piece of plywood. You can cut dadoes, grooves and rabbets in many different ways.

What is a double rabbet jamb?

DRC | Double Rabbet Door Jamb Allow for two doors to be hung in the fire-rated Jamb creating a modern look for interconnecting hotel rooms. The system is complemented by a range of hardware to suit different applications.

What are the disadvantages of a rabbet joint?

1. Its strength is completely dependent on a 45 degree end-grain to end-grain glue joint, which is much weaker than gluing side grain to side grain. 2. It is difficult to make eight perfect 45 degree cuts while also making two pairs of sides that are exactly the same length.

What does double rabbeted mean?

While most companies do not have a solution for this, we have a double rabbeted jamb system that decreases the airflow on the side of the frame. It allows the door to be closer to the side of the frame, reducing the gap.

What is a split jamb interior door?

Split-jamb doors are a lot like conventional prehung doors, but they have a two-piece jamb joined with a tongue and groove. The joint, which is hidden by the stop, allows both sides of the jamb to be cased at the millwork shop. The jamb can be separated when it’s time to install the door.

What is a door jamb vs door frame?

Many people confuse a door jamb and a door frame. A simple way to remember it is that a door jamb is part of a door frame. The flat surface that runs vertically up either side of the door frame is the jamb.

Article first time published on

What is a standard door jamb size?

For interior doors, a door jamb’s size is 4 ⅝-inches in-depth – this is the standard size for a door jamb. With this depth, you’ll get ⅛-inch extra to accommodate for walls that may be a little thicker than the standard.

Which wood is better for door frame?

Sal wood: The Sal wood is considered to be one of the most strongest as well as heaviest type of wooden material that can be used for creating doors and window frames. It is around 50% on the harder part and 30% on the heavier part thus making it the strongest when compared to teak wood.

Which door frame is better for bathroom?

Aluminium doors are the best for bathrooms. Although wooden doors and steel doors look quite elegant and great, they are not as practical as their aluminium counterparts.

Are MDF door frames any good?

Generally speaking, timber is seen as a strong, sturdy material whilst MDF is the cheap and weak alternative. … However, advancements in technology mean that MDF is becoming a “solid” contender amongst doorframe manufacturing, making it a reliable and cost-effective alternative to its natural wood counterpart.

What would you use a rabbet joint for?

A rabbet is basically just a groove or a dado on the edge of your wood piece that creates a lip. That lip can then fit snuggly into a groove. The rabbet joint is incredibly useful for furniture construction that uses panels, such as a small dresser. It’s also very useful for cabinet construction.

When would you use a rabbet joint?

The rabbet joint is used primarily to set backboards onto the back of a case piece or to accommodate the glass on a mirror frame.

What do rabbet joints look like?

A rabbet joint looks like two stairs carved into the edge of a workpiece. These “stairs” are then joined together at a 90-degree angle.

What are advantages of a butt joint?

The advantage is that it is a joint which can be quickly and efficiently made, which may be beneficial when the desire is to get a project finished. Butt joints can also be used as a form of temporary joinery while a project is underway, and removed later.

What are the advantages of wood joints or joinery in carpentry?

The purpose of wood joints is to provide strength, flexibility, toughness, appearance etc. to the project. So, your joints should offer these characteristics. Some wood joints use fasteners, adhesives, or bindings while others use only the wood elements.

How many degrees is a Mitre joint?

A mitre joint (often miter in American English) is a joint made by cutting each of two parts to be joined, across the main surface, usually at a 45° angle, to form a corner, usually to form a 90° angle, though it can comprise any angle greater than 0 degrees.

What is meant by split jamb?

Split-jamb doors have a two-piece jamb that is separated lengthwise and sandwiches the wall between the two pieces. When installing, set the unhinged side in the room with the hinge-stop side in the opening track. The casing is already attached to split-jamb doors, so tack a nail through the casing near the top.

What is a flat jamb?

Flat Jamb. A four-sided jamb surface where a separate wood stop may be applied. Also referred to as a one-piece jamb.

What is the difference between a flat jamb and a split jamb?

Flat Jamb: These are used in a more traditional install. The jambs are solid and once you install them you must then hang the trim on both sides. Flat Jambs are more stable in the long run than split jambs but do add to the cost of both materials and labor.

What are the different types of door jambs?

Interior door frame components are typically made from pine, poplar, or other wood species. Jambs generally come in two styles: rabbeted and plain.

Do split jamb doors come with trim?

How to Install Split-Jamb Interior Doors. Split-jamb prehung doors work well in situations where the rough frame is wider than a standard opening. They feature jambs that are split in half lengthwise and the trim casing is already attached to each edge of the jamb, so no mitering is necessary.

What is a door leg?

1. Door jamb. … The word “jamb” comes from the French word jambe, which means “leg” – and door jambs are sometimes also called the “legs”. One source of confusion is the part of the frame above the door, which is sometimes erroneously referred to as the “top jamb”.

What do you call the frame around a door?

What Is an Architrave? The architrave (sometimes also referred to as jamb casing) is part of the door casing and refers to the decorative trim that sits around the door frame.

What is the wall above a door called?

In architecture, a transom is a transverse horizontal structural beam or bar, or a crosspiece separating a door from a window above it. This contrasts with a mullion, a vertical structural member.

How much wider Should a door jamb be than the door?

A basic rule of thumb is to make the rough opening 2 inches wider and 2 1/2 inches taller than the door.

How do I know my jamb size?

Measure from the door frame to where the drywall starts, this is your casing, the measurement of the size trim you will put around the door. You will need to measure this on the outside and the inside, and they may be different measurements.

How wide is a 2x4 door jamb?

The minimum door jamb width required is 4 ½ inches. 2×4 width: 3 ½ inches.
