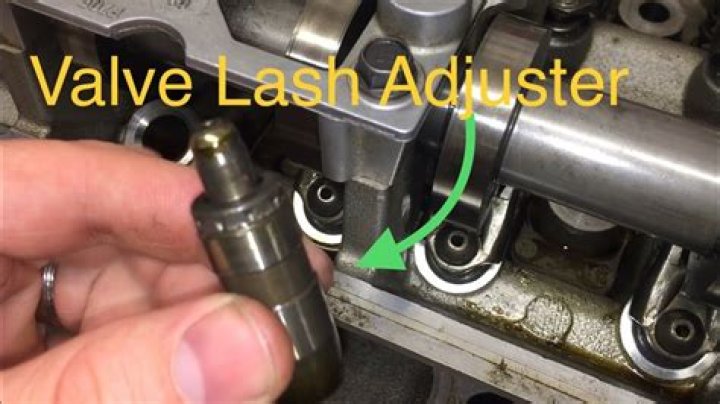

What is a valve lash adjuster

A hydraulic tappet, also known as a hydraulic valve lifter or hydraulic lash adjuster, is a device for maintaining zero valve clearance in an internal combustion engine. Conventional solid valve lifters require regular adjusting to maintain a small clearance between the valve and its rocker or cam follower.

What does lashing valves mean?

Valve Lash or Valve Clearance is the gap between the Rocker Arms and the valve tappet. … This lower section is where the cam profile is designed to gently open and close the valve. If you have too much valve lash, you eliminate the more “gentle” sections and are basically “slamming” the valve open and closed.

What is the purpose of a valve adjustment?

The purpose of a valve adjustment is to bring the clearance between the tip of valve stem and the camshaft lobe or rocker arm back in to the specified clearance that was determined by the design engineer.

Can valve lash be adjusted?

When all of the intake valves have been set to the proper valve lash, you can adjust the exhaust valves. Utilizing the same procedure as with the intake valves, you need to turn the engine over until the intake pushrod moves all the way up and rotates just past maximum lift. Now the exhaust valve can be adjusted.

How do hydraulic valve lash adjusters work?

Intentionally these HLAs (Hydraulic lash adjusters) are designed to let oil flow in between the inner and outer plunger assembly in only one direction. … � This reverse pressure tries to force the oil between the inner and outer plunger back out the hole in the center of the inner plunger.

Why do you need valve lash?

Valve lash is intended to provide the greatest amount of valve opening on the high point of the camshaft lobe and assure that the valve is tightly closed on the low segment of the camshaft lobe. Valve lash adjustment is necessary maintenance for engines without hydraulic valve lifters.

Is valve lash bad?

Too much or too little valve clearance can result in poor performance or a rough idle because the engine can’t “breathe” normally and operate at peak efficiency. Too much clearance means the valves will likely clatter and, over the long term, cause damage to the valves, camshaft lobes or rocker arms.

How much does a valve adjustment cost?

Between $246 and $336 is the average cost of a valve adjustment. The labor costs are between $220 and $278 while the parts cost between $26 and $58.

Can valve lash cause misfire?

Bad valve adjustment can totally cause misfire.

Does valve lash increase or decrease when hot?

The lash number that cam manufacturers supply will be the “hot lash,” which is the ideal lash after the engine is at operating temperature. The lash can change several thousandths of an inch between when it is at room temperature and when everything is warmed up properly.

Article first time published on

How does valve lash affect performance?

Since the valve cannot move until all the running clearance (valve lash) has been taken up, the amount of valve lash you use affects the engine’s performance. … This makes the camshaft “look” bigger to the engine, because of a slight increase of actual running duration and lift.

What are the symptoms of a bad valve adjustment?

This rough idling is caused by the valve opening late, choking off fuel. Stalling after a cold start is common. In other cases, you may hear a loud rattling noise as the valve knocks against the side of the shaft. Since some symptoms often disappear after the car warms up, they’re easier to ignore.

How do I know if my valves are lash?

To determine the valve lash, subtract the squish from the desired valve opening lift. The cam in the graph is for a flathead, using squish of 0.002″ the valve lash should be 0.0127″ or 0.013″. The exhaust could be set a couple thousandths larger to allow for thermal expansion.

What does it sound like when your lifters are bad?

The most obvious symptom of a faulty hydraulic lifter is the noise it creates in your car’s engine. … Instead of a knock or ping, a faulty hydraulic lifter will usually make a sound more reminiscent of a tapping sound.

What is HLA in diesel engine?

As. heavy duty diesel engines advance, manufacturers have begun. experimenting with hydraulic lash adjusters (HLA) in their. valvetrains.

How long does a valve adjustment take?

Registered. Pros bill for half an hour to an hour. If you haven’t done it before it’s going to take you longer than 20/45 minutes.

What happens if valve lash is to tight?

If the lash is too tight, the intake valve may hang open. Some engines have the valve-lash adjustment on the pushrod, like this early Hemi. Here’s a rocker arm with the adjustment on the pushrod end. “You can also burn a valve if it’s not fully seated,” adds Godbold.

Will a valve adjustment increase compression?

No. A compression test is used to measure the sealing in the cylinder, both through the valves and the rings. You cannot confer anything through a compression test as to the adjustment of the valves, because it doesn’t relate to that.

How does valve lash change over time?

So, over time the original clearances, between the valve stems become bigger (with exhaust valves, the clearance can become tighter). That often leads to a clattering noise, that a driver might not notice over time; because it increases gradually.

How often should you do a valve adjustment?

On pre-2006 models, they recommend a valve adjustment at 110,000 miles. And for newer ones, they recommend just listening for noise and adjusting when necessary.

Can tight valves cause no start?

yes it can. usually when you adjust there loose.

Can a bad valve cover gasket cause a misfire?

A leaking valve cover gasket can cause a misfire if oil is leaking into the spark plug wells. … But a leaking valve cover can cause smoke, bad smells and even fire, so it is in your best interest to take care of it right away.

Can bad valve adjustment cause smoke?

NO. Oil can get into the combustion chamber two ways: Past the rings or the valve stem seals. If the smoke is visible during acceleration it is getting past the rings.

What is included in a valve job?

A valve job removes the cylinder head from the engine so the valves, guides, and seats can be refurbished to restore compression and oil control. When an engine has 80,000 or more miles on it, a valve job may be required.

Can I drive with bad valves?

Unfortunately, yes you can do more damage by continuing to drive with damaged valves. … Damaging the catalyst can cause it to break apart internally, leading to plugging up the exhaust and causing an even more severe loss of power, which will make the car very difficult to drive.

Is a valve job necessary?

Valve jobs are necessary when the seats are worn to the point that there is no longer a proper seal between the seat and the valve. By re-facing the seats and/or valves, the proper seal is re-established.

Does valve clearance affect timing?

The valve’s duration (the time the valve is open) will therefore be greater if the clearance is tighter (it opens sooner and closes later), and reduced if it’s looser (opens later and closes sooner). … This has a direct effect on engine performance.

Is it better to have valves loose or tight?

loose is always better. WHy? Cause as the valve wears into the seat, it will tighten up the specs to the cam. Yes, but the primary reason is that they get longer when they’re hot.

What does valve clearance mean?

What are valve clearances? Valve clearances on motorcycle and car engines effectively relate to the gap between the top of the valve stem and the cam that operates it. The inlet valves in the engine open to allow air and fuel into the cylinder, while the exhaust valves let the burnt gases out.
