What is an interlock switch

The interlock consists of one or more switches that prevent both main power and generator power from powering the dwelling simultaneously. … Most interlock devices for electrical systems employ a mechanical device to manage the movement of circuit breakers.

What is the function of interlock switches?

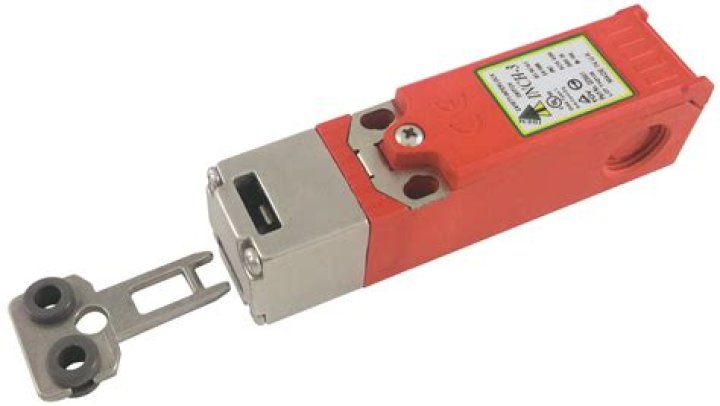

Safety interlock switches are used as interlock devices that can prevent machine operation or startup in an unsafe situation, such as when a door or guard is open. Interlock devices with a locking function can also prevent doors or guards from being opened while the machine is in operation.

What is the difference between a transfer switch and an interlock?

Compared to a transfer switch, which is limited to a particular number of circuits, an interlock kit allows you to run power from a generator to any circuit within the electrical panel. … That way, your customer knows which circuit breakers to turn off or keep on during an outage.

What is the meaning of interlock switch?

A switch (usually a micro switch) which shuts off power to components (motors and lamps for example) if the machine is opened. This is to prevent injury if someone inadvertently attempts to open the machine. Also described as “safety switch.” (

What is interlock wiring?

To interconnect the motor circuit in such a way, in which the second motor will not start until the first one run likewise the third one motor will not run unless the second one run and so on. This kind of motor circuit connection is called interlocking.

What is interlock in P&ID?

Interlock: An Interlock is in essence a ‘self resetting’ Trip. … Once a device or devices have been forced to a pre-determined state by the action of an Interlock they will remain in that state until the initiating cause returns to a ‘healthy’ condition, the Interlock will then be automatically removed.

How does an interlock relay work?

A relay composed of two or more coils, each with its own armature and associated contacts, so arranged that movement of one armature or the energizing of its coil is dependent on the position of the other armature.

How do you hook up a generator to a house without a transfer switch?

1. Step 1: Create a Place for the Outlet Utility Box.
2. Step 2: Drill a Hole for Running Your Generator Cables to the Outlet.
3. Step 3: Install the Waterproof Box Outside Your Wall.
4. Step 4: Connect the Wire Into the Outlet.
5. Step 5: Connect Generator to Outlet and Test it.

Where can interlock switches be found?

• Light Bulbs, Lamps & Tubes(1670)
• Light Fittings(1396)
• Torches & Inspection Lamps(457)

Are interlock switches safe?

When an interlock switch is properly installed, it prevents the generator circuit breaker and the main circuit breaker from both being on at the same time. An interlock kit is a safe and cost-effective way to ensure you’re using a portable generator safely.

Article first time published on

Why do you need a circuit breaker interlock?

The function of the racking mechanism interlock is to prevent the breaker from moving from the connection position before the breaker is in the open position. … Racking interlocks prevent a circuit breaker from being connected to energized bus in the closed position.

What are the three types of interlock?

There are three types of interlocks: – mechanical, – electrical, – logical.

What is interlock in a car?

What is an ignition interlock device (IID)? An IID is a small, handheld breathalyzer for car ignitions that’s installed to prevent users from being able to start their vehicle after drinking alcohol. Sometimes they’re referred to as car breathalyzers, or as a breath alcohol ignition interlock device (BAIID).

What is the difference between an interlock and a permissive?

A Permissive is something that must take place BEFORE another action or sequence of actions can be undertaken. An Interlock is something that takes place as a RESULT of or as PART of another another action or sequence.

What is a hardwired interlock?

Hard Wired Interlock is an interlock accomplished by electro-relays and/or wires that is not accomplished through a Programmable Electronic System. ( Refers to the Software Interlock)

What is valve interlock?

A valve interlock is a trapped key lock assembly which locks the valve in one or two positions – open and/or closed – with one key trapped within the lock assembly and one key free. It’s about controlling the sequence of events, conducting different valve process activities.

What are interlock dreads?

Interlocking Dreadlocks is a maintenance method which involves pulling the end of the dreadlock back through the base of the root. This method tightens each dreadlock by twisting the hair at the base of the dreadlock. It is also known as “root flipping” or “latch hooking dreads”.

What is interlock driveway?

Interlock driveways create a unique, beautiful entrance to a home; much more eye-catching than traditional asphalt. The most affordable material used for interlock driveways is concrete pavers. … Concrete pavers also have the advantage of being available in a wide variety of colors, textures and patterns.

Can you unlock interlock dreads?

Removing Dreadlocks in hair that has been interlocked from root to tip is almost always the easiest to comb out. … In some cases all you have to do is cut the last inch of the dreadlock and the rest will come out with ease.

How much does it cost to interlock dreads?

You also have the option of interlocking your hair subsequently. Prices will vary depending on hair length and thickness, but it tends to be less than $100 to start in my experience.

Does interlocking damage hair?

Potentially Damaging. There is a specific technique that is used with interlocking and when it is not executed proficiently it can produce holes in the locs which can lead to breakage and thinning. Also, if the correct amount of tension is not used, this can cause locs to thin at the roots or trigger traction alopecia.

Can you run a generator without a transfer switch?

“It’s not only less safe to run a generator without a transfer switch, but you’ll limit the devices that your generator can power,” says Dave Trezza, who oversees generator testing for Consumer Reports.

Do you have to turn off your main breaker when using a generator?

You typically will need to turn the circuit breaker off and turn the fuel valve on before starting it up. Give the machine a few minutes to warm up, then flip the circuit breaker on. Use long, heavy-duty extension cords made for outdoor use to connect appliances to the generator one by one so as not to overload it.

Does a portable generator need a transfer switch?

However, portable generators don’t strictly need a transfer switch, but it is usually a good idea. The biggest benefit of having a transfer switch in a residential setting is that you gain the ability to power things up via your circuit breaker panel instead of having to use extension cords.

How do you run a interlock generator?

1. Turn Main circuit breaker “OFF”
2. Turn “OFF” all branch circuit breakers.
3. Slide interlock plate.
4. Turn GENERATOR breaker “ON”
5. Connect and start.
6. Turn “ON” essential circuits.

Where do you put a generator in a storm?

Do not place generators inside of any structure including garages, carports and sheds. Instead, place the generator at least 20 feet away from your home, down-wind away from open doors, windows and vents. Before refueling, turn the generator off and allow it to cool for 15-20 minutes.

Can a generator be plugged into a wall outlet?

A generator should not be plugged into a wall socket. While it is physically possible to do so, there are substantial risks involved. Not only is it illegal in some areas, but permanent damage could also be done to the home’s electrical system by way of backfeeding.

How far should a generator be from a house?

Always place the generator at least 20 feet from the house with the engine exhaust directed away from windows and doors.

Are interlocks legal?

Generator interlock kits are legal in most parts of the US if they are approved by the UL under their standard UL 67. The interlock kits you install should have the UL listing otherwise they may be objected upon by electrical inspectors.

Do generator interlock kits meet code?

They take next to no time to install, physically prevent the utility main being on at the same time as the generator breaker, and the inspectors seem happy with them (they meet code, so they better!)
