What is Circle of Confusion in photography

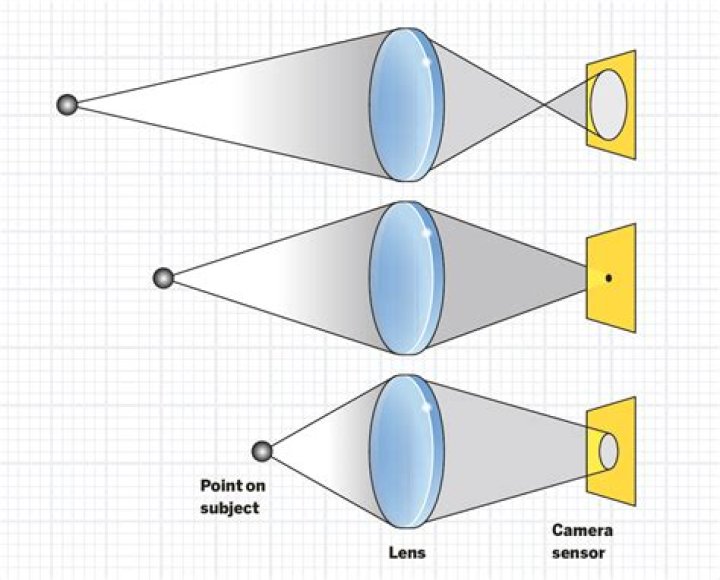

In photography, the circle of confusion (CoC) describes a point of light directed onto a camera’s focal plane by the lens. Depending on the camera’s aperture, depth of focus, and field of view, the diameter of this dot of light might be extremely narrow when it hits the camera sensor, or it might be wider.

What is circle of least confusion explain?

physics. : the minimum cross section of a symmetrical bundle of rays that have no common focus because of spherical aberration.

In which lens circles of confusion are most prominent?

Q.Circles of confusion are most prominent inB.zoom lensC.fisheye lensD.none of theseAnswer» a. mirror lens

What are the circles called in photography?

What is circle of confusion. To recap, the circle of confusion is the measurement of where a point of light grows to a circle that can see in a final image. If you have a camera, you can experience this concept by racking your lens’ focus ring and seeing how a light source becomes out of focus.

Where is the circle of least confusion?

noun Optics. the smallest cross section in a beam of paraxial rays, lying in the plane of least spherical aberration.

What is a blur circle?

The image formed by a lens system, on its focal surface, of a point source object. The size of the blur circle will be dictated by the precision of the lens and the state of focus; i.e., the blur can be caused by aberrations, defocusing and manufacturing defects.

What does the ISO value represent?

The higher the ISO rating, the greater the film’s ability to capture images taken in low light. High ISO film was called fast film—it required a shorter exposure than a low ISO film. For digital photography, ISO refers to the sensitivity—the signal gain—of the camera’s sensor.

What is circle of least diffusion?

Circle of least confusion/diffusion: The smallest cross-section of a blur circle between the two focal lines formed by the astigmatic lens. Also defined as “At the dioptric midpoint of focal lines the cross-section of sturm’s Conoid appears as a circular patch of light rays with best overall focus.”

What is circle of least confusion in Optometry?

The Circle of Least Confusion is the midpoint between the two primary focal lines of a sphero-cylindrical lens. An example of a time when the spherical equivalent power is used is when an individual with a low amount of astigmatism is being prescribed a spherical contact lens.

What is Max image circle?

The image circle limits the maximum sensor size for which a lens can be used. An image circle of 6mm limits the use to maximum sensor to 1/3″. An image circle of 8mm limits the use to maximum sensor to 1/2″.

Article first time published on

What determines the image circle of a lens?

For a given focal length the angle of view will determine what we call lens image circle. … A camera maker can use instead a smaller portion of it making the film or digital sensor smaller than image circle.

How do I find the image of a circle?

Use focal length f as your adjacent leg, and half the coverage degrees as the adjacent angle phi, then image circle c = 2 f tan(phi).

What is a mirror lens?

Mirrored lenses are sunglass lenses with a reflective optical coating (“mirror coating” or “flash coating”), creating small one-way mirrors for the wearer. Mirrored sunglasses come in a variety of lens colors, though lighter tints are often used to compensate for the darkness the mirror coating creates.

What is the angle of view on a fisheye lens?

The angle of view of a fisheye lens is usually between 100 and 180 degrees while the focal lengths depend on the film format they are designed for. Mass-produced fisheye lenses for photography first appeared in the early 1960s and are generally used for their unique, distorted appearance.

Which of the following are the main factors in determining how large the circle of confusion appears to our eyes?

Although print size and viewing distance influence how large the circle of confusion appears to our eyes, aperture and focusing distance are the two main factors that determine how big the circle of confusion will be on your camera’s sensor.

How is Circle of Confusion calculated in photography?

To calculate the diameter of the circle of confusion in the image plane for an out-of-focus subject, one method is to first calculate the diameter of the blur circle in a virtual image in the object plane, which is simply done using similar triangles, and then multiply by the magnification of the system, which is …

What is Sphere of confusion?

The sphere of confusion (SoC) is defined as the mini- mum spherical volume covering all possible locations of an infinitely small object at.

What is aperture measured by?

Aperture is measured in f-stops. What is an F-Stop? An f-stop (or f-number) is the ratio of the lens focal length divided by the diameter of the entrance pupil of the aperture. As such, an f-stop represents the relative aperture of a lens; it is basically a way to normalize the aperture setting across different lenses.

What is aperture in photography?

What is aperture in photography? Aperture refers to the opening of a lens’s diaphragm through which light passes. … Lower f/stops give more exposure because they represent the larger apertures, while the higher f/stops give less exposure because they represent smaller apertures.

What is S in camera?

The S-mode (Shutter Priority mode) is a mode which allows you to set the shutter speed as you like. In this mode, the camera automatically sets the aperture (f-number) and ISO sensitivity to shoot a well-exposed photograph.

What does the aperture do?

Aperture is a hole in the lens that controls how much light gets into your camera. It’s one important element of the exposure triangle, along with ISO and shutter speed. Aperture also affects your depth of field, which is defined by the level of clarity or blurriness of certain elements within a photo.

How does blur circle end?

No explanation, the film ends abruptly with Jill saying hello to Katie, the daughter. Those are only a few of the questions and questionable writing involved in this movie.

What is Blur disc diameter?

When the eye is defocused for any reason, the diameter of the blur disc may be used as a first approximation to estimate effects on visual acuity. … The angular or perceived diameter of this disc is then found by calculation of the angular subtense of the retinal blur disc measured at the back nodal point.

What is the blur circle on the retina?

When the optical system of an eye is mis-focused on an object, the image of any single point of light is uniformly spread out across a small area of retinal surface. … Given that the shape of the pupil in the normal human eye is circular, the image is a circular region called a ‘blur circle’ or ‘blur disk’.

What is shallow depth of field?

Shallow depth of field is achieved by shooting photographs with a low f-number, or f-stop — from 1.4 to about 5.6 — to let in more light. This puts your plane of focus between a few inches and a few feet. Depending on your subject and area of focus point, you can blur the foreground or background of your image.

What is depth of field in photography?

As a result, depth of field (DoF) is the distance between the nearest and furthest elements in a scene that appear to be “acceptably sharp” in an image. The distance between the camera and the first element that is considered to be acceptably sharp is called DoF near limit.

What is the interval of Sturm?

In optical terms the region between the two focal lines is known as the interval of Sturm. In geometrical terms the space bounded by the rays within the interval of Sturm is known as the conoid of Sturm, named after the Swiss-born mathematician Jacques-Charles-François Sturm (1803-55).

How do cylindrical lenses work?

A cylindrical lens is a lens which focuses light into a line instead of a point, as a spherical lens would. … The lens converges or diverges the image in the direction perpendicular to this line, and leaves it unaltered in the direction parallel to its cylinder’s axis (in the tangent plane).

What is hyperfocal distance in photography?

The hyperfocal distance is the distance between the camera and a point in your scene at which everything from half the distance to that point and beyond to infinity will be acceptably sharp.

What is with the rule astigmatism?

With-the-rule astigmatism means that the EYE is steeper in the vertical meridian (more plus). To correct this astigmatism in a pair of eyeglasses, one would need to add more plus to the horizontal meridian or add more minus to the vertical meridian. The MERIDIAN of a positive cylinder lens would be at 180 degrees.

Why are camera round but pictures are square?

In short, cameras produce rectangular pictures because the sensor is rectangular; the illuminated area is circular and some light is wasted off the edges of the sensor. In film cameras the sensor is the film, which is stored in a roll as tape, and making the frames bigger so they catch all the light would waste film.
