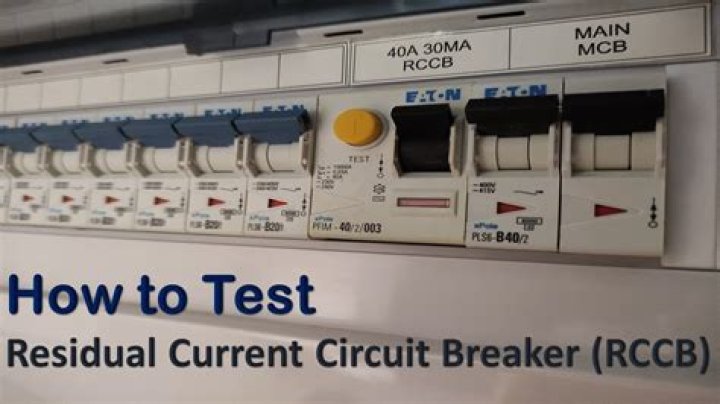

What is circuit breaker with test button

The GFI breaker is designed with a test button incorporated into the breaker itself. Pushing the test button should trip the breaker. … The test button actually shorts the neutral wire feeding the circuit to the neutral bus in the electrical panel creating a ground fault that should trip the breaker.

What does test button on circuit breaker do?

The GFI breaker is designed with a test button incorporated into the breaker itself. Pushing the test button should trip the breaker. … The test button actually shorts the neutral wire feeding the circuit to the neutral bus in the electrical panel creating a ground fault that should trip the breaker.

Should I press the test button on a breaker?

You can also consider testing your circuit breaker by pressing the test button. This will cause the circuit breaker to turn off. If the breaker doesn’t trip, it isn’t working correctly, so you need to replace it. Otherwise, you can repeat the process of resetting the breaker to turn it on.

What is the blue test button on a circuit breaker?

Recalls. Square D (blue buttoned) AFCI’s are actually called out for Recall due to consistent failure. Check for recall. A tell-tale sign is if you panel is branded with Square D, and you have blue buttons on your AFCI breakers.

What are the signs of a bad breaker?

Won’t Stay in Reset Mode. If the breaker doesn’t stay in “reset” mode, it may be short-circuiting. …
Notice a Burning Smell. …
It Feels Hot. …
Damage Is Visible To the Box or Outlets. …
Frequent Breaker Trips. …
It’s Old.

Can a breaker be bad and not trip?

If a circuit breaker doesn’t trip, it could lead to the main breaker tripping, or worse- extensive electrical damage or a fire. Can a circuit breaker be bad without tripping? Yes, a circuit breaker can be bad without tripping. Failure can occur with the breaker set to “on”.

What is the yellow test button on the circuit breaker?

If the breaker is made by Square D, which is the most popular brand of panels and breakers in the U.S., then the yellow test button indicates that it is a GFCI (Ground Fault Circuit Interrupter) breaker and a white button means the breaker is an CAFCI ( Combination Arc Fault Circuit Interrupter).

What is the white button on circuit breaker?

A yellow test button means it’s a GFCI (Ground Fault Circuit Interrupter) breaker, and a white button means the breaker is an CAFCI (Combination Arc Fault Circuit Interrupter).

How do you test a circuit breaker?

The most efficient way to test a circuit breaker is with a multimeter. A multimeter is a measuring instrument that works to combine several measurement functions in one unit. A multimeter can measure volts, amps, and ohms through outlets, fixtures, and breakers.

Can a circuit breaker reset itself?

Type 1 are auto resettable, and once tripped, will attempt to reset the circuit, or ‘cycle’, as the internal elements of the breaker cool down. Type 2 (trip and hold) are called modified reset, and will remain tripped until the power is removed from the breaker.

Article first time published on

What can cause a breaker to trip?

A circuit breaker will usually trip when there is an electrical fault that could cause damage to the circuit. This is usually an excess of current, a power surge or a faulty component.

Why does my circuit breaker keep popping?

Common reasons for your circuit breaker tripping are because of either a circuit overload, short circuit or a ground fault. … Your circuit breaker has tripped again. Sure, you can just reset the circuit breaker each time it trips.

How much does it cost to replace a circuit breaker?

The typical cost to replace a breaker box is $1,975. Most homeowners spend between $1,787 and $2,207 for this job. As you can see, it pays to get estimates from expert electricians. A low-amp sub-panel typically calls from $1,000 to $2,000, while a 200-amp panel upgrade can cost you up to $5,000.

How do you reset a circuit breaker with a yellow test button?

Start with pressing down on the “Reset” button.
Plug in a lamp and the light should be on.
Press down on the “Test” button and the light should go off.
Push the “Reset” button again and the light should be on.

How do you fix a tripped breaker that won't reset?

Unplug all appliances that are plugged into outlets on that circuit and turn off all the lights, then try the breaker again. If it stays on, plug the appliances back in one by one until it trips again, and service or discard the appliance that makes it trip. Check each appliance for overheating when you unplug it.

What if circuit breaker will not reset?

If the circuit breaker won’t reset and trips immediately, the problem might be a short circuit. … A short circuit can cause broken appliances, overheating, or even be a fire hazard. If you suspect a short circuit is the reason your circuit breaker keeps tripping, leave the breaker off and call a licensed electrician.

Can power go out without breaker tripping?

If one or more lights in your home have gone out and your circuit breaker isn’t tripped, what could the issue be? One culprit could be a GFCI (Ground Fault Circuit Interrupter) outlet that has tripped. … Other issues can include loose wiring or outlets. Over the years, wiring and screws can come loose.

How often do circuit breakers fail?

The sensors inside CAFCI, AFCI, or GFCI breakers typically fail in 15 to 20 years, at which point an electrician should replace the breaker. Testing of CAFCI, AFCI, and GFCI breakers should be performed monthly. Testing involves pressing the breaker’s TEST button and resetting the breaker when it trips.

How do you test a circuit breaker load?

Check the wattage (max power rating) on your device. …
Measure the voltage on the circuit you wish to install your electrical devices. …
Using the simple equation from above, calculate the amperage of your device (Watts = Amps x Volts). …
Repeat this step for every appliance that will be on the circuit.

Can a tripped breaker cause a fire?

When a circuit breaker trips, too much electricity is trying to move through the circuit at once, causing the circuit breaker to literally break the circuit. Too much electricity passing through a circuit can overheat the electrical wiring in your home or electrical devices, which can cause a fire or electrocution.
