What is clutch master cylinder

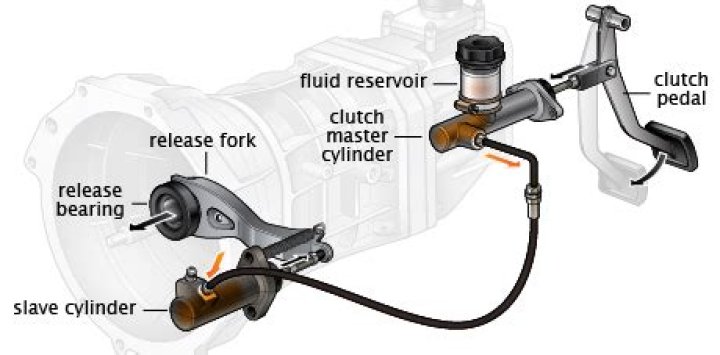

The clutch master cylinder is directly connected to the clutch pedal and serves as the portion of the hydraulic system that generates hydraulic pressure.

What is the function of clutch master cylinder?

The clutch master cylinder is what provides the necessary force to control the application of drivetrain power. Internal damage may occur, resulting in fluid leakage and improper hydraulic pressure. Do not allow dust, dirt, and debris to enter the cylinder or reservoir tank.

How much does it cost to replace a clutch master cylinder?

If having a professional replace your clutch master cylinder, expect to pay somewhere in the range of $180 to $420 total. Parts will usually cost $100 to $300. It shouldn’t take them more than an hour to replace the cylinder so you’re looking at $80 to $120 for labor in most cases.

What are the symptoms of a bad clutch master cylinder?

Low Clutch Fluid. No, we’re not yanking your chain; clutch fluid is a real thing. …
Soft or Spongy Clutch Pedal. …
Your Clutch Engages at a Different Point. …
Dark Clutch Fluid After Changing It. …
It’s Hard to Depress The Clutch. …
The Clutch Pedal Is Stuck to the Floor.

What happens when the clutch pedal and the piston in the clutch master cylinder move?

The clutch pedal pushes a rod connected to a piston inside of a master cylinder. … When you release the clutch pedal the fluid looses its pressure and the spring force of the pressure plate moves the bearing back allowing the disc to re-engage.

What causes clutch master cylinder failure?

If the fluid looks dirty or there isn’t enough fluid in the reservoir, then it will cause problems for your clutch master cylinder. The cylinder may get dirty if its inner seals are damaged or worn out, causing contamination of the fluid. This commonly takes place as the seals’ age and get older.

How do you tell if your clutch has gone?

Spongy, sticking, vibrating or loose clutch pedal when pressed.
Squeaking or grumbling noise when pressed.
Ability to rev the engine, but poor acceleration.
Difficulty shifting gear.

How long does clutch master cylinder last?

How to Protect Your Clutch Master Cylinder From Failing. Modern cars are made out of sturdy components that last for a long time, that’s why a CMC will last between 50,000 and 100,000 miles before it needs to be replaced.

Can a clutch master cylinder be repaired?

To repair the clutch master cylinder, it will first have to be removed. You will first need to remove the reservoir cap for the fluid container and drain the brake fluid to the minimum level. … Use a socket to remove these nuts and take out the clutch master cylinder.

How long does it take to change a clutch master cylinder?

It takes 8 hours to replace both cylinders.

Article first time published on

Do automatic cars have clutch master cylinder?

An automatic transmission does have a clutch system, but usually only a mechanic would refer to it as such. Your automatic transmission performs the same function as a manual transmission – it just does it a little differently.

How do I get the pressure back in my clutch?

Open the bleeder valve and allow the fluid to run out until it slows down, while your friend maintains pressure on the clutch pedal. When the fluid flow slows, while your friend still has pressure on the clutch pedal, close the bleeder valve. Let the clutch pedal back up and repeat the process.

How do you check a clutch master cylinder?

If the clutch fluid is low, look all over both master and slave cylinders and the pipe that connects them for signs of a leak. Pull back the lip of the dust cover on both cylinders. If there is hydraulic fluid inside the cover the piston seal is worn or damaged or the cylinder may be scored.

What can go wrong with a clutch?

Your master or slave cylinder might start to leak. There are two types of clutches—hydraulic and cable-operated. …
Your flywheel might become warped. …
Your clutch disc might be worn out. …
Your pressure plate might be worn out. …
Your throwout bearing might be worn out.

How long does clutch last?

Most clutches are designed to last approximately 60,000 miles before they need to be replaced. Some may need replacing at 30,000 and some others can keep going well over 100,000 miles, but this is fairly uncommon.

How much does it cost to get a new clutch?

The cost to repair a clutch can range between $500 to $2,500. It really depends on the car. Performance cars, exotic cars, and European cars are more expensive to replace the clutch than Japanese economy cars.

Can you drive a car with a bad clutch master cylinder?

Stuck Pedal When a master clutch cylinder goes bad, the clutch pedal will fall to the floor when pressed and will not rise again. When this happens, the driver will be unable to shift the car into any gear. The vehicle will not be drivable until the master clutch cylinder is replaced.

Do automatics last longer than manuals?

Longevity. In the all critical area of longevity, manual cars owners come out on top. When compared with their automatic cousins, most cars with manual transmission tend to last longer – a length of time that can sometimes translate to years.

Do you need to change clutch on automatic car?

Clutches, like other car parts, wear down over time. Manual transmission vehicles have to change between gears using a clutch pedal, while an automatic transmission car will shift gears by itself. In both cases, though, because of the friction created by the clutch, it will need replacing eventually.

Why is my clutch pedal on the floor?

Broken Clutch Cable: The most common reason to have a clutch pedal that goes all the way to the floor is a broken clutch cable. This is extremely common, particularly on older cars. … Low Fluid: If you have a hydraulic clutch, there are a couple of other things it could be. One is low fluid in the master/slave cylinder.

Why does my clutch pedal feel spongy?

SPONGY CLUTCH PEDAL If your clutch pedal feels soft or ‘spongy’ at any point as you press it to the floor, it’s a sign your clutch fluid is low. That spongy, inconsistent feeling is due to air in the clutch line from the master cylinder to the slave cylinder.

Why is my clutch losing pressure?

If it’s the clutch slave cylinder, it’ll build up pressure then slowly leak out. If it’s the lining, you’ll either see a squirt coming out and should see a small puddle somewhere, or it will leak the pressure slowly. There’s a lot of pressure in the system.
