What is metal spinning process

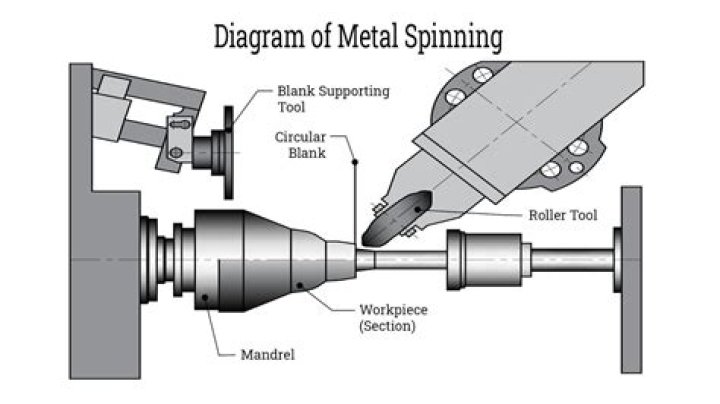

Metal spinning is a form of symmetrical metalworking where a flat circle, or circular, piece of metal is fitted into a hand lathe or CNC lathe. … A localized force utilizing a variety of rollers or tools is applied either by hand or by machine to gradually form the metal over a “chuck” or mandrel.

What is a metal spinning machine?

Metal spinning transforms a flat or preformed metal sheet into an axially symmetrical figure. A lathe machine is adapted for the metal spinning process. The components of a metal spinning lathe are the mandrel, roller, tailstock, headstock, spindle, and follower.

What are the advantages of metal spinning?

Cost savings are further enhanced from the inherent smooth finish that spinning produces, often eliminating the need for additional machining. Other advantages are very low tooling compared to stamping, as well as very short setup and changeover times. The process is also eco-friendly with less waste being produced.

What are the two types of metal spinning operations?

Metal spinning typically involves the forming of axisymmetric components over a rotating mandrel using rigid tools or rollers. There are three types of metal- spinning techniques that are practiced: manual (conventional) spinning (Ref 1, 2), power spin- ning (Ref 4–11), and tube spinning (Ref 7, 8).

What products are made from metal spinning?

• Stainless steel bowls.
• Satellite dishes.
• Brass instruments.
• Gas cylinders.

What is meant by hot spinning process?

“Hot spinning” involves spinning a piece of metal on a lathe while high heat from a torch is applied to the workpiece. Once heated, the metal is then shaped as the tool on the lathe presses against the heated surface forcing it to distort as it spins.

What is CNC metal spinning?

Also known as metal turning, metal spinning is a type of metalworking process that involves the use of a rotating machine — typically a CNC lathe — to deform metal over a pre-shaped mold. Unlike with other metal turning processes, however, it doesn’t strip away or otherwise remove any of the metal material.

What are the different instruments used for spinning?

The two hand-operated devices used for spinning are Takli and Charkha. Takli is an iron stick which is used to spin short fibers, cotton, cashmere, and silk.

Why spinning is called a flow turning process?

In the “flow-turning” process, thick gauge material is made to flow plastically by pressure rolling it in the same direction as the roller is travelling, so that a component is produced in which the wall thickness is much less than that of the original blank. This is a more automated process than metal spinning.

What is flow forming?

Flow Forming is an incremental metal-forming technique in which a disk or tube of metal is formed over a mandrel by one or more rollers using tremendous pressure. The roller deforms the workpiece, forcing it against the mandrel, both axially lengthening and radially thinning it.

Article first time published on

What is the limitation of the metal spinning process?

One disadvantage of metal spinning is that if a crack forms or the object is dented, it must be scrapped. Repairing the object is not cost-effective.

What is sheet metal bending process?

1.1 Sheet metal bending Bending is a forming operation in which a sheet metal is subjected to bending stress thereby a flat straight sheet is made into a curved sheet. The sheet gets plastically deformed without change in thickness. Die and punch are used for bending.

What is deep drawing process?

Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is thus a shape transformation process with material retention. … This is achieved by redrawing the part through a series of dies.

Which is the disadvantage of spinning process?

Size and Shape Limitations Due to the nature of the metal spinning process, its products are limited to those with concentric, axially symmetric shapes. Examples of shapes easily formed through spinning include hemispheres, cones, funnels, flanged covers, parabolas, stepped parts and dished heads.

What is explosive forming?

An explosive forming is one of the techniques to form a metal plate using high shock pressure from the explosion. An explosive releases its energy instantly so that an extremely high pressure with short duration occurs at the instance of explosion. … Because of this effect, the metal plate may stop its deformation.

What is spun stainless steel?

Stainless Steel Metal Spinning or Spin Forming 316 Stainless contains 18% chromium and 10% nickel with a slightly higher resistance to corrosion. This material has a price premium compared to 304 Stainless. … Spindustries works with stainless steel up to 48” diameter to 0.187” thick or 60” diameter to 0.075” thick.

What does spun copper mean?

Copper was one of the first metals to be spun and the tradition continues at Wenzel Metal Spinning. Copper is the perfect metal for spinning because it is very malleable and ductile; meaning copper is resistant to breaking or cracking during the metal spinning process.

How does shear spinning differ from spinning process?

Shear forming, also referred as shear spinning, is different from conventional metal spinning in that in this latter the area of the final component is approximately equal to that of the flat sheet metal blank and little or no reduction in the wall thickness occurs, whereas in shear forming a reduction of the wall …

Which property of metal is used for metal forming process?

In any forming operation, the material must be exposed to tension, compression, or both, i.e., bending. During the process, the metal does not lose its mass, only its form. In addition, to ensure success, metals used must have the necessary mechanical properties—the ability to stretch, compress, or bend.

What is tube spinning?

Tube spinning is an effective and stable method for manufacturing thin metal tubes, which are used as steel belts for precision conveyers, printing rollers in printers, elastic rolls in production lines for optical films and flexible solar panels and so forth.

Can metal be stretched?

One of the most basic ways to stretch sheet metal is by using planishing hammers. Ultimately, the sheet metal is firmly placed on a hard surface and is beaten using the planishing hammer, forcing the metal to compress and stretch.

What is spinning and flow turning?

Flow turning or spinning is the plastic deformation of metal to the shape of a rotating mandrel with forces applied by a tool or roller.

When was the metal lathe invented?

It is known as the mother of machine tools, as it was the first machine tool that led to the invention of other machine tools. The first fully documented, all-metal slide rest lathe was invented by Jacques de Vaucanson around 1751.

What are the different types of spinning wheels?

• Great Wheel. A well known version of the spindle wheel, is the Great Wheel. …
• Saxony Wheel. When most people think of spinning wheel, the Saxony style is the most familiar. …
• Castle Wheel. …
• Norwegian Wheel. …
• Modern Wheel. …
• The Charkha wheel.

What is art of spinning?

Spinning is an ancient textile art in which plant, animal or synthetic fibres are drawn out and twisted together to form yarn. For thousands of years, fibre was spun by hand using simple tools, the spindle and distaff. … Hand-spinning remains a popular handicraft.

What is cast wheel?

a wheel having on its circumference molds for receiving molten metal.

How does roll forming work?

A roll forming machine bends metal at room temperature using a number of stations where fixed rollers both guide the metal and make the necessary bends. As the strip of metal travels through the roll forming machine, each set of rollers bend the metal a little more than the previous station of rollers.

What is a rotary forged wheel?

ROTARY FORGED™ WHEELS by TSW are manufactured using a highly advanced production technique called rotary forging. The rim of the wheels is forged at high pressure while the wheel is spun at high speed. … The benefit is a much lighter weight than a regular cast wheel.

What is hydroforming process?

Hydroforming is a metal forming technology based on the application of pressurized liquid media to generate defined workpiece shapes from tubular materials or sheet metals.

What is K factor in bending?

K factor is a ratio between the distance from the neutral bend line to the inside bend radius and the material thickness. K factor uses the formula K factor = δ/T.

What is K factor in sheet metal bending?

In sheet metal, the K-factor is the ratio of the neutral axis to the material thickness. When a piece of metal is being formed, the inner portion of the bend compresses while the outer portion expands (see Figure 1).
