What is the cause of hysteresis loss

Hysteresis loss is caused by the magnetization and demagnetization of the core as current flows in the forward and reverse directions. As the magnetizing force (current) increases, the magnetic flux increases. … In order for the flux density to reach zero, the magnetizing force must be applied in the negative direction.

What is the hysteresis loss in physics?

Energy Loss due to Hysteresis Hysteresis loss is the term for this type of heat loss. Due to the continuous process of magnetization and demagnetization in transformers, energy is continuously lost in the form of heat, reducing the transformer’s efficiency.

What is hysteresis loss and eddy current loss?

The loss which occurs because of the eddy current is known as the eddy current loss. The eddy current induces because of the interaction of the variable magnetic field and conductor. The loss which occurs because of the reversal of the magnetising force is known as the hysteresis loss.

What does hysteresis cause in an AC machine?

Hysteresis can result in energy loss in the ferromagnetic cores of electric machines. This is because the alternating current changes its direction of flow constantly and therefore the direction of the magnetic field produced by them.

How can hysteresis loss be prevented?

Hysteresis losses can be reduced by using material that has less area of the hysteresis loop. Hence, high grade or silica steel can be used for designing the core within a transformer because it has extremely less area of the hysteresis loop.

What is hysteresis law?

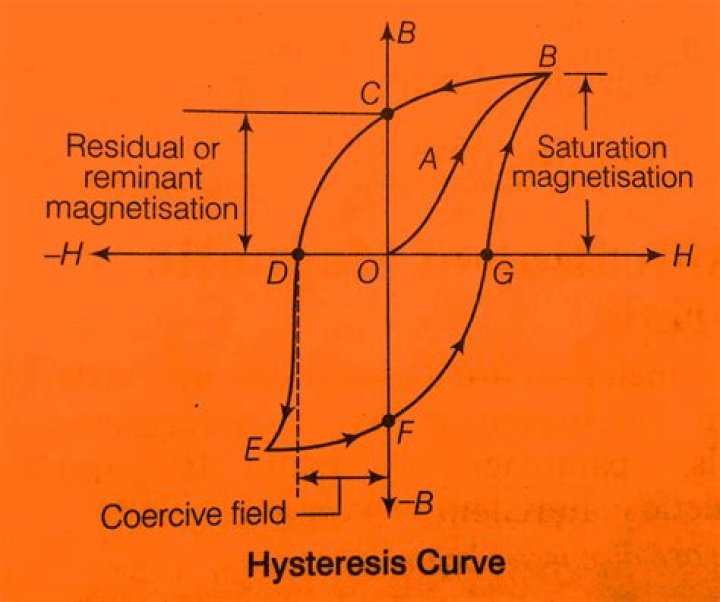

When a ferromagnetic material is magnetized in one direction, it will not relax back to zero magnetization when the imposed magnetizing field is removed. … The lack of retraceability of the magnetization curve is the property called hysteresis and it is related to the existence of magnetic domains in the material.

What is hysteresis loss in motor?

Definition: The work done by the magnetising force against the internal friction of the molecules of the magnet, produces heat. This energy which is wasted in the form of heat due to hysteresis is called Hysteresis Loss.

What is meant by hysteresis and hysteresis loss?

Energy Loss due to Hysteresis During the cycle of magnetization and demagnetization of magnetic substances, energy is spent and this is spent energy appears in the form of heat. This heat loss is known as hysteresis loss. The loss of energy per unit volume of the substance is equal to the area of the hysteresis curve.

What is the hysteresis loss at 100 Hz?

Frequency (f)Core losses (W)Case 140 Hz100Case 230 Hz72Case 350 HzRequired value

What is hysteresis loss in DC machine?

Hysteresis Loss in DC Machine The constant process of magnetic reversal in the armature, consume some amount of energy which is called hysteresis loss. The percentage of loss depends upon the quality and volume of the iron.

Article first time published on

How can hysteresis losses be reduced by eddy current?

Due to the constantly changing magnetic fields, there is a loss of current in the core. One easy solution for how to reduce eddy current losses in the transformer is to make the core by stacking thin sheets together. This will decrease the eddy current and hence the losses made by it too.

Does lamination reduce hysteresis loss?

Hysteresis is the loss of energy in the form of heat. If the core is not laminated, then due to the change in magnetic flux, here is some heat generated in the core. But due to the lack of lamination, the heat can be easily dissipated. But, if the core is laminated, then the energy is not lost due to hysteresis.

What is hysteresis in simple terms?

Hysteresis is something that happens with magnetic materials so that, if a varying magnetizing signal is applied, the resulting magnetism that is created follows the applied signal, but with a delay. … As a general term, hysteresis means a lag between input and output in a system upon a change in direction.

What is the formula for hysteresis loss?

The hysteresis loss per second is given by the equation[20]: Hysteresis loss, Ph= (Bmax)1.6f V joules per second (or) watts. Where, f: supply frequency in Hz, V: volume of core in cubic meters, η‟: hysteresis coefficient, Bmax: peak value of flux density in the core.

How does hysteresis loss depend on frequency?

Hysteresis loss is directly proportional to the frequency of the field, magnetic flux intensity, and volume of the material. Hysteresis loss does not depend on Neel’s temperature.

What happens for the energy loss as hysteresis loss?

…which is known as the hysteresis loss, in reversing the magnetization of the material is proportional to the area of the hysteresis loop. Therefore, cores of transformers are made of materials with narrow hysteresis loops so that little energy will be wasted in the form of heat.

What are the conditions under which hysteresis loss is observed?

Hysteresis losses are observed in multidomain ferro or ferrimagnetic NPs. The exposure to a magnetic field induces heat loss due to a phenomenon known as domain wall displacement [11]. Thus, this mechanism will be predominant in large (typically > 100 nm) blocked NPs. Relaxation losses are predominant in SPM NPs.

How can you increase the pulling strength of an electromagnet?

1. wrapping the coil around a piece of iron (such as an iron nail)
2. adding more turns to the coil.
3. increasing the current flowing through the coil.

What are iron losses?

Iron loss is an important loss component in the components that conduct flux, which changes with time. They are sometimes described as ‘core losses’. The two loss mechanisms are hysteresis and eddy current losses. Both of these increase with increasing flux density in the teeth and back iron.

How can we minimize hysteresis loss the magnetic material?

∴ The hysteresis loss in a given magnetic material may be decreased by decreasing maximum flux density established through it or by using magnetic material having low hysteresis coefficient.

How do hysteresis and eddy current loss depend on frequency?

Therefore, in a transformer, hysteresis and eddy current losses depend upon both maximum flux density and supply frequency. … Eddy current loss is directly proportional to supply frequency. Therefore, for dc source, frequency is zero and eddy current loss is also zero.

Which of the following methods is likely to result in reduction of hysteresis loss in a DC generator?

Which of the following methods is likely to result in reduction of hysteresis loss in a DC generator? Explanation: Providing laminations will work for reducing eddy current losses, but hysteresis loss is dependent on the material chosen. Thus, using different material for core of armature will definitely work.

What causes copper losses in a transformer?

Copper losses are due to the resistance of the wire in the primary and secondary windings and the current flowing through them. These losses can be reduced by using wire with large cross-sectional area in the manufacturing of the coils.

Which instrument is free from hysteresis error?

Detailed Solution. In dynamometer type instruments air core is used for both fixed coil and moving coil. Hence this instrument is almost free from or have minimum hysteresis and eddy current error.

What are the causes of loss of energy in a transformer How are they Minimised?

To minimize the resistance of windings, thick wires with considerably low resistance are used. The use of a shell style core will reduce flux loss. Furthermore, sound is emitted as a result of the core’s vibration, resulting in energy loss. The eddy current loss can be minimized by considering the laminated core.

What is BH curve?

The B-H curve is generally used to describe the nonlinear behavior of magnetization that a ferromagnetic material obtains in response to an applied magnetic field.

How can transformer loss be overcome?

1. Use of low resistance wire for the winding of the coil.
2. Heat loss due to eddy current can be reduced by the lamination of the iron core.
3. The heat generated can be kept to a minimum by using a magnetic material which has a low hysteresis loss.

How can we reduce flux loss?

Statement ( A ) : Flux leakage in a transformer can be minimized by winding the primary and secondary coils one over the other.

What is a hysteresis test?

The hysteresis loop tells us information about the magnetic properties of a material, showing the relationship between the induced magnetic flux density (B) and the applied magnetic force (H). … To thoroughly test a material, it is necessary to go negative in field.

Why core loss is constant in a transformer?

The reason behind core loss being constant is that hysteresis loss and eddy current loss both are dependent on the magnetic properties of the material used in the construction and design of the core of the transformer. So these losses are constant and do not depend on the value of load current.

What is the importance of BH curve?

The B-H curve is the curve characteristic of the magnetic properties of a material or element or alloy. It tells you how the material responds to an external magnetic field, and is a critical piece of information when designing magnetic circuits.
