What is the difference between a fuel pump and a fuel sending unit

The fuel sending unit located in the gas tank to measure the fuel tank level. Some sending units are attached to the fuel pump assembly, while others are stand-alone units, but both are made up of the same three components: a float, a metal rod/arm, and a variable resistor.

Can you drive with a bad fuel sending unit?

The sender float is designed to float on the surface of the fuel inside of the tank. … When the fuel sending unit has an issue it can cause the vehicle to experience issues with the fuel gauge, which can put the vehicle at risk of running out of fuel.

How do I know if my fuel sender is working?

To check the wire, disconnect it from both the sender and the “S” pin on back of the gauge. Set your multimeter to the Ohms scale and check the resistance within the wire. If there is no resistance (as close to zero Ohms as possible), the circuit is good and the sender is faulty.

Does a fuel pump come with a fuel level sensor?

Fuel pumps are powered by electricity and are connected to a vehicle’s electrical system. Like batteries — and alternators for that matter — fuel pumps have both a positive and negative terminal. In addition to power and ground wires, most fuel pumps modules also have a fuel level sender.

What's the difference between a fuel pump and a fuel pump assembly?

The fuel pump assembly in a vehicle is responsible for sending the required amount of fuel at the right pressure and time to the engine. … The fuel pump itself is the unit that pulls the fuel from the tank and pushes it into the fuel lines and eventually to the motor.

How much is a fuel pump replacement?

How Much Does Fuel Pump Replacement Cost? The average cost for a fuel pump replacement is between $220 and $1,062 depending on vehicle and age. Labor costs are estimated between $124 and $260, while parts are priced between $95 and $854. Estimates do not include taxes and fees.

How much does it cost to replace fuel sending unit?

Fuel Level Sending Unit Replacement Cost – RepairPal Estimate. Labor costs are estimated between $156 and $197 while parts are priced between $687 and $805. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.

What causes a fuel level sensor to go bad?

An inaccurate fuel tank reading is most commonly caused by the sending system which reads the fuel tank level and sends the reading to the gauge. Issues can also stem from a bad gauge, blown fuses, or corroded wiring.

Where is the fuel sensor located?

This sensor is usually located near the middle of the fuel rail and is linked to the engine control unit (ECU), which is the central computer of a vehicle.

How do I reset my fuel level sensor?

1. Turn the ignition switch to the “On” position.
2. Press the “Odo/Trip” button until the odometer is put into “ODO” mode.
3. Turn off the ignition.
4. Press and hold the “Odo/Trip” button. …
5. Release the “Odo/Trip” button.

Article first time published on

How do I test a fuel sender unit?

Make sure there is a good ground connection as well. To verify the fuel sending unit is receiving proper voltage, set the multimeter to 20 volts. With the battery turned on, back-probe the input connector on the sending unit and check for voltage. Refer to the Service Manual for proper voltage.

How does a fuel sending unit work?

The fuel sending unit has a float arm that sits in the liquid gas. When that arm moves up and down, it changes the resistance to ground on a variable resistor. That resistance is then translated and sent through the car’s wiring and electronics to determine where the needle or digital gauge is positioned.

What all comes with a fuel pump assembly?

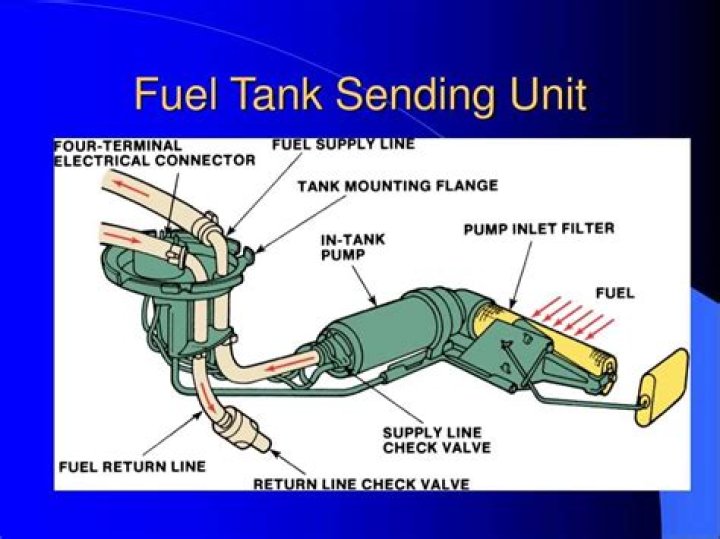

The complete fuel pump assembly might include a fuel gauge sending unit, a pressure regulator valve, a fuel tank pressure sensor, a pump intake strainer and/or the main fuel system filter, and of course the electric fuel pump. An electric fuel pump consists of two parts: a small brush-type DC motor and the pump itself.

How does a fuel pump assembly work?

The basic way your modern electrical fuel pump works is by utilizing a DC motor in the pump assembly which draws in the fuel sitting in your gas tank. From there, it sends it up the fuel line and into the fuel rail where it can be injected into a cylinder. It then mixes with air and a spark to create combustion.

What is the purpose of a fuel pump?

The fuel pump in your vehicle does exactly what it sounds like — it pumps fuel from the gas tank to the engine. There are some other steps in between, but we’ll get to those. Given the crucial role of the fuel pump in making your car move forward, it’s a car part you ought to know more about.

Where is the fuel gauge sending unit?

The sending unit is located in the fuel tank of the car. It consists of a float, usually made of foam, connected to a thin, metal rod. The end of the rod is mounted to a variable resistor.

How long does it take to replace a fuel sensor?

A professional mechanic would require roughly 5 hours. (If just the regulator is replaced that takes about 1 hour).

How many years does a fuel pump last?

Fuel pumps have been known to last for over 200,000 miles in some cases. After 100,000 miles, the failure of the pump is likely enough that if you are replacing a major part in the fuel system nearby, it may be advantageous to replace it at the same time.

Can you fix a fuel pump without replacing it?

Another possible solution relating to the concern of “how to fix a fuel pump without replacing it” is to apply some external pressure to the car. The main problem with the bad fuel pump is that it reduces the required pressure for the car’s operation and thus causes problems with its performance.

Is a fuel pump easy to replace?

Installing a fuel pump can be difficult – especially if you’ve got a full gas tank. Plus, because fuel is flammable, the task can be dangerous. … If you decide to replace the fuel pump yourself, make sure to take the necessary precautions and have a fire extinguisher on hand.

How many fuel sensors are in a car?

Your vehicle may have one, two, three or four sensors, depending on the engine type, make and model. You can tell your oxygen sensor is faulty by the following signs: Failure to pass the emissions test. A decrease in fuel mileage.

What controls the fuel pump?

When the key is turned on, the powertrain control module (PCM) closes the fuel pump relay, which activates the fuel pump for about three seconds to pressurize the fuel injectors. … When the engine starts, the CKP signals the PCM to keep the fuel pump and fuel delivery system running.

Can a bad battery cause fuel pump to not work?

The fuel pump can run slower if the battery is low. This causes low fuel pressure and a lean fuel condition. A low battery can prevent one or more injectors from opening, which can cause lean misfire and/or hard starting.

What are the symptoms of a bad fuel sending unit?

• Whining Noise From the Fuel Tank. If you notice a whining noise coming from the location of your fuel tank, the fuel pump is probably beginning to fail. …
• The Engine Sputters or Surges. …
• Trouble Starting the Car. …
• Loss of Power Under Load. …
• Reduced Gas Mileage. …
• Stalling at High Temperatures.

How can I check my fuel level without a gauge?

1. Check the manual. By checking your car’s manual, you can easily determine how much your gas tank could hold. …
2. Check the odometer. Check the odometer in order to determine how many miles you have traveled. …
3. Use a liquid dipstick.

How does a 2 wire fuel sender work?

It’s a small round plate with two wire connections. The sender changes resistance (ohms) variably as the float moves from full (up) to empty (down). Changes in resistance move the gauge needle. The sender uses two wires: black for the ground and pink for the sender, per American Boat and Yacht Council standards.

How does a one wire fuel sending unit work?

The fuel-sending unit is a potentiometer that is adjusted by a float attached to a rod exactly like the float in a toilet bowl. When the fuel in the tank drops in level, the arm with the attached float correspondingly drops, which changes the amount of resistance in the potentiometer.

Can a fuel pump fail suddenly?

Fuel pump failures tend to be sudden and unpredictable, with few symptoms to warn the motorist that trouble is brewing. And the higher the mileage on the vehicle, the greater the risk of a fuel pump failure.

How much is a sending unit?

A new fuel level sending unit can cost anywhere between $20 and $345.

How do you diagnose a bad fuel pump?

1. Whining Noise From the Fuel Tank. …
2. Difficulty Starting. …
3. Engine Sputtering. …
4. Stalling at High Temperatures. …
5. Loss of Power Under Stress. …
6. Car Surging. …
7. Low Gas Mileage. …
8. Car Will Not Start.

How can I start my car with a bad fuel pump?

So, one of the best tips to start a car with a bad fuel pump is to leave your car’s engine cool. When your car cools off, it allows the fuel pump to reset without the need for pressure. Also, it would be best if you neither let your car engine get too cool or get very hot.
