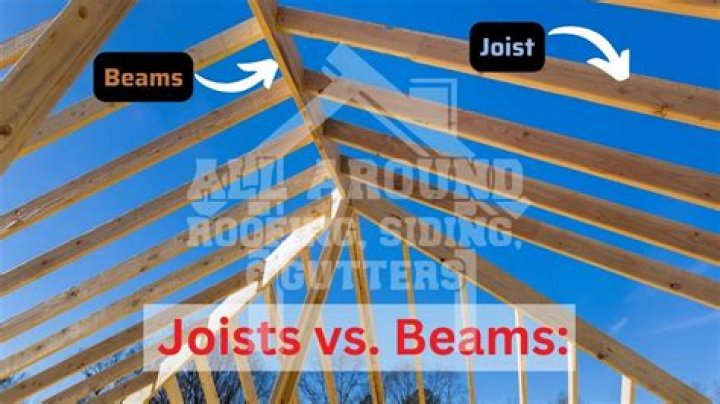

What is the difference between beam and joist

A beam is the main load-bearing structural element of a roof. It supports the weight of joists and other building elements. A joist is a horizontal member that generally runs across a building and is supported by a beam.

What's a joist beam?

A joist is a horizontal structural member used in framing to span an open space, often between beams that subsequently transfer loads to vertical members. When incorporated into a floor framing system, joists serve to provide stiffness to the subfloor sheathing, allowing it to function as a horizontal diaphragm.

What is the difference between a joist and a truss?

The joist supports the load which the floor is built to bear. A truss is used to support the roof.

Is joist a secondary beam?

The size of beam starts from 9 x 12 inches. Joists are supposed to provide secondary support. They are used to support a broad flat surface like ceiling or floor. Beams take and transfer the main structural loads coming over it, including the weight of joists.

Do joists need to be on top of beams?

You typically need to hang a joist if the top of it needs to be in the same plane as the beam that supports it. There are all sorts of reasons and conditions on jobs where this is necessary. … The best things to use to attach the joist hangers to the beam are structural screws or bolts.

What is difference between girder and beam?

The main difference between a girder and a beam is the size of the component. In general, workers in the construction industry refer to large beams as girders. … If it is the chief horizontal support in a structure, it is a girder, not a beam. If it is one of the smaller structural supports, it is a beam.

What are structural beams?

A structural beam is a component used in construction to add strength to any structure or design. Manufactured of steel, concrete or wood, the structural beam is typically used to span an open element of a structure, as well as to give support underneath a very heavy component of a structure.

What is the difference between beams and rafters?

is that beam is any large piece of timber or iron long in proportion to its thickness, and prepared for use while rafter is one of a series of sloped beams that extend from the ridge or hip to the downslope perimeter or eave, designed to support the roof deck and its associated loads or rafter can be a raftsman.

What are joists and bearers?

Bearers are the timber or steel that attaches directly to the stumps in the ground, that supports the deck of flooring structure. Joists are the timbers that then attach across the top of the bearers, after which the timber or particle board floor is then attached.

What is the purpose of joists?

Joists—the horizontal members that span two walls and/or beams—have to carry the weight of the walls, people, furniture, appliances and other stuff we place on them. When a load is applied to a joist, the wood fibers along the bottom edge go into tension and those along the top go into compression (Fig. A).

Article first time published on

Is a rafter a joist?

The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture.

What are beams and trusses?

Both a beam and a truss are designed to span a distance, generally in a lateral direction. A beam is more or less an element that is subjected to bending, axial and shear forces while a truss is a composite of different structural elements that generally only have axial forces.

Are I joists stronger than timber?

Are I joists stronger than timber? … They can span greater distances, and are considered to be 50% stiffer than dimensional timber under traditional frame spacing. Unlike timber, the strength of an I joist is not affected by cut holes that are used to run plumbing.

Can joist be flush with beam?

A flush or header beam is a structural member positioned at the same level as the joists and uses joist hangers for attachment just as you would at the ledger board. … Make sure you install your beams with the crown side up.

What are 3 types of beams?

• Continuous beams. A continuous beam is one that has two or more supports that reinforce the beam. …
• Simply supported beams. Simply supported beams are those that have supports at both end of the beam. …
• Fixed beams. …
• Overhanging beams. …
• Cantilever beam.

Which beam is strongest?

There is no such thing as a “stronger beam” in engineering design. Whether the beam is steel, reinforced concrete, timber, or any other material, it can be sized to withstand whatever load is applied to it (up to a practical limit).

What is a RCC beam?

What Is RCC Beam? Beam can be defined as a structural member which carries all vertical loads and resists it from bending. There are various types of materials used for beam such as steel, wood, aluminum etc. But the most common material is reinforced cement concrete (RCC).

What is a small beam called?

If the component is small in size, it is a ray. Size of Girder: All girders are beams because they are the main horizontal support structure for small beams. If the builder has used the component to support all other small beams, it is called a girder.

Can a beam rest on another beam?

A beam can be connected to a column, a wall or another beam by these nodes. … If a beam supports other beams, it is considered to be the main beam, and some of its nodes may be non-supporting ones. For example, those can be the nodes the secondary beams rest on.

What are tie beams?

What Is Tie Beam? The beam which connects two or more columns/rafters in a roof/ roof truss or in any height above floor level is called tie beam. Tie beams are mainly provided in roof truss and at plinth level.

What are deck joists?

A decking joist is a repeated board used as the structural base for your deck frame that is attached to the ledger via galvanized joist hangers. Typically, joists run perpendicular to the house, while the decking on top runs parallel to the house. Every significant portion of your deck needs to be supported by a joist.

What are ceiling joists?

Ceiling joists are a number of horizontal beams, running parallel from one wall to the opposite wall of the structure. The beams are attached to the top of the wall at what’s known as the wall plate. A ceiling joist at the top floor of a structure may also support a flat roof, as well as the ceiling.

What is a rafter beam?

A rafter is one of a series of sloped structural members such as wooden beams that extend from the ridge or hip to the wall plate, downslope perimeter or eave, and that are designed to support the roof shingles, roof deck and its associated loads.

What are roof beams?

“Roof beams” is a term used to describe the relatively large wood members (load-bearing beams) that support a roof structure. … Their homes are typically the ones that have exposed roof beams projecting out to, or beyond, the roof edge framing.

What is a joist in construction?

joist, ceiling or floor support in building construction. Joists—of timber, steel, or reinforced concrete—are laid in a parallel series across or abutting girders or a bearing wall, to which they are attached, usually by metal supports called joist hangers, or anchors.

What is another word for joist?

In this page you can discover 22 synonyms, antonyms, idiomatic expressions, and related words for joist, like: post, soffit, girder, scantling, strip, beam, support, brace, stud, lath and purlin.

What is the difference between a roof joist and rafter?

The only difference between joists and rafters are the amount of load they must be designed to carry, and their angle – that is generally it. … They primarily use lighter, smaller pieces of wood in their construction that allow them to be cheaper than traditional rafters.

What is the size of roof joist?

Common joists sizes are 200 x 50mm, 175 x 50mm, and 150 x 50mm. The joists will normally be placed at 400mm centres but no more than 600mm centres.

What is the ridge beam?

A ridge beam is a structural member used to support the ends of the rafters at the ridge, transferring it’s loads to posts or gable end walls. Ridge beams are required by code if the roof slope is less than 3 in 12 (IRC section R802. 3).

Which is better truss or beam?

Beam vs Truss Bridges The truss bridges are the strongest since they are able to withstand both the tensile and compressive loads, while all types of beam bridges rely mostly on the tensile loads.

What is major difference between truss and beam?

A solid mass is a beam. A truss is composed of components which make it perform like a solid mass, but without the mass and weight. The internal hinges along the length of the beam reduce bending moment.
