What is the difference between geothermal power plant and geothermal heat pump

Geothermal power plants generate electricity by forcing hot steam or hot steam from the earth’s interior through a turbine. This electricity can be used to power, heat, and cool homes, among other uses. Meanwhile, geothermal heat pumps circulate fluid through underground pipes, where they absorb heat.

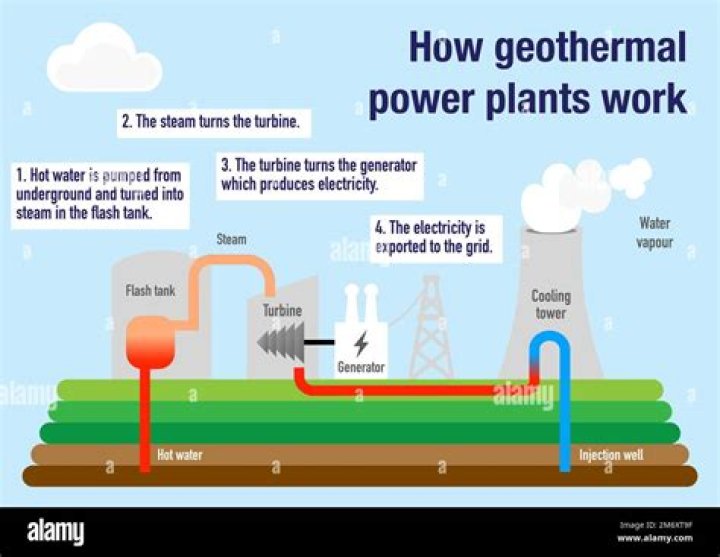

How do geothermal power plants and geothermal heat pumps work?

At a geothermal power plant, wells are drilled 1 or 2 miles deep into the Earth to pump steam or hot water to the surface. … The steam spins a turbine, which is connected to a generator that produces electricity. The steam cools off in a cooling tower and condenses back to water.

How does a geothermal power plant differ from other power plants?

How Geothermal Plants Differ from Other Power Plants. The main difference is that additional heat is not needed. Geothermal reservoirs deep underground heat water that seeps down from above, and then rises, due to a natural process called hydrothermal convection. Therefore, no boilers or heating fuel is needed.

What is geothermal energy plant?

Geothermal power plants are used in order to generate electricity by the use of geothermal energy (the Earth’s internal thermal energy). … Hot water or steam is extracted from the Earth through a series of wells and feeds the power plant.

Why is geothermal not widely used?

Geothermal drilling is also one of the main reasons why world doesn’t use more geothermal energy. … Less expensive drilling, wider area to harness the resource from and reduced capital costs – these are all the solutions on which global geothermal energy industry should build its future progress.

What are the advantages of geothermal power plant?

• Environmentally Friendly. Geothermal energy is more environmentally friendly than conventional fuel sources such as coal and other fossil fuels. …
• Renewable. …
• Huge Potential. …
• Sustainable / Stable. …
• Heating and Cooling. …
• Reliable. …
• No Fuel Required. …
• Rapid Evolution.

What are the three types of geothermal power plants and how do they work?

There are three geothermal power plant technologies being used to convert hydrothermal fluids to electricity—dry steam, flash steam and binary cycle. The type of conversion used (selected in development) depends on the state of the fluid (steam or water) and its temperature.

What are the uses of geothermal power plant?

Geothermal energy can heat, cool, and generate electricity: Geothermal energy can be used in different ways depending on the resource and technology chosen—heating and cooling buildings through geothermal heat pumps, generating electricity through geothermal power plants, and heating structures through direct-use …

What's inside a geothermal power plant?

The main components in a geothermal power plant at The Geysers are the steam turbine, generator, condenser, cooling tower, gas removal system and hydrogen sulfide abatement system. Thermal energy in the form of pressurized steam flows from wells, through pipelines and to the power plant.

How is a geothermal power plant similar to a heat engine?

Geothermal Energy in itself acts similar to that of a perpetual heat engine much like a sterling engine. … The heat from the surrounding ground or water raises the temperature of the fluid flowing through the pipes which then returns to the home, building, or power plant.

Article first time published on

What are the geothermal power plant in the Philippines?

StationCommunityCapacity (MW)Malitbog Geothermal Power StationMalitbog, Tongonan, Kananga, Leyte232.5Upper Mahiao Geothermal Power StationLimao, Kananga, Leyte125Mahanagdong Geothermal Power StationOrmoc, Leyte180Leyte Optimization Geothermal Power StationTongonan and Limao, Kananga, Leyte50.9

What are 3 disadvantages of geothermal energy?

• Environmental issues. There is an abundance of greenhouse gases below the surface of the earth. …
• Surface instability (earthquakes) Construction of geothermal power plants can affect the stability of land. …
• Expensive. …
• Location-specific. …
• Sustainability issues.

Do you need backup heat with geothermal?

Myth #1: You need to buy a fossil fuel heating system anyway to serve as a backup. This simply isn’t true. A properly designed geothermal system will provide all of the heating and cooling that you need. There is no need whatsoever to install a gas or oil boiler as backup.

Can geothermal produce electricity?

Geothermal electricity generation requires water or steam at high temperatures (300° to 700°F). Geothermal power plants are generally built where geothermal reservoirs are located, within a mile or two of the earth’s surface. The United States leads the world in the amount of geothermal electricity generation.

Do geothermal power plants produce pollution?

When geothermal power plants do emit gases, it’s mostly carbon dioxide, which isn’t a pollutant but a greenhouse gas. Still, geothermal power plants emit much less carbon dioxide than fossil fuel power plants.

Where is the best place for geothermal energy?

The most active geothermal resources are usually found along major tectonic plate boundaries where most volcanoes are located. One of the most active geothermal areas in the world is called the Ring of Fire, which encircles the Pacific Ocean.

How much does it cost to build a geothermal power plant?

Power plant construction is usually completed concurrent with final field development. The initial cost for the field and power plant is around $2500 per installed kW in the U.S., probably $3000 to $5000/kWe for a small (<1Mwe) power plant. Operating and maintenance costs range from $0.01 to $0.03 per kWh.

How hot can geothermal heating get?

For direct use of geothermal heat, the temperature range for the agricultural sector lies between 25 °C (77 °F) and 90 °C (194 °F), for space heating lies between 50 °C (122 °F) to 100 °C (212 °F). Heat pipes extend the temperature range down to 5 °C (41 °F) as they extract and “amplify” the heat.

What are the different types of geothermal power plant?

There are three types of geothermal power plants: dry steam, flash steam, and binary cycle.

How much land does a geothermal power plant need?

An entire geothermal field uses 1-8 acres per megawatt (MW) versus 5-10 acres per MW for nuclear operations and 19 acres per MW for coal power plants. Coal power plants also require huge acreages for mining their fuel.

What is the oldest type of geothermal power plant?

At look at Larderello Geothermal Energy plant in Italy, the oldest geothermal plant in the world. Larderello geothermal power plant in Tuscany, Italy.

What does a geothermal heat pump do?

Geothermal heat pumps are used for space heating and cooling, as well as water heating. The benefit of ground source heat pumps is they concentrate naturally existing heat, rather than by producing heat through the combustion of fossil fuels.

What is the first geothermal power plant in the Philippines?

Leyte island is where the first geothermal power plant, a 3 megawatt wellhead unit, started operations in July 1977. Larger-scale commercial production of geothermal power began in 1979 with the commissioning of a 110-megawatt plant at Tiwi field in Albay province.

What is the largest geothermal power plant in the Philippines?

The Malitbog Geothermal Power Station is a 232.5 MW geothermal power plant or an earth steam turbined electric generator—the world’s largest geothermal power plant under one roof located in Malitbog, Kananga, Leyte, Philippines.

What are types of power plants?

• Nuclear power plants. …
• Hydroelectric power plants. …
• Coal-fired power plants. …
• Diesel-fired power plants. …
• Geothermal power plants. …
• Gas-fired power plants. …
• Solar power plants. …
• Wind power plants.

How long does geothermal last?

Geothermal heat pumps last significantly longer than conventional equipment. They typically last 20-25 years. In contrast, conventional furnaces generally last anywhere between 15 and 20 years, and central air conditioners last 10 to 15 years.

How deep should geothermal be?

How deep do you have to dig? For a horizontal loop you only need to dig between 6 – 8 feet deep. For a vertical loop you need to drill between 250 and 300 feet deep.

How much does it cost to install geothermal?

On average, a homeowner can expect to invest about $12,000 to $30,000 as geothermal heating and cooling cost. This cost would cover a complete geothermal installation. For large homes, the cost can range from $30,000 to $45,000 for high-end ground source heat pump systems.

Can geothermal pipes freeze?

If a loop pipe, a loop fitting, the loop pump assembly or any other 30 degree cold surface in the home is left exposed, it will first condense moisture and then the moisture will freeze or at least frost over. This is normal and should not cause any problems with the operation of the geothermal heating.

Does geothermal heat work in cold climates?

The answer to this is yes, geothermal heat pumps can and do work just fine in cold winter climates. … This is because heat energy from the sun is stored in the earth. So, rain, shine, sleet, or snow, it’s always around 55 degrees Fahrenheit at about 10 feet below ground.

Can an auxiliary water heater be operated from a geothermal heat pump?

For water heating, you can add a desuperheater to a geothermal heat pump system. A desuperheater is a small, auxiliary heat exchanger that uses superheated gases from the heat pump’s compressor to heat water. This hot water then circulates through a pipe to the storage water heater tank in the house.
