What is the difference between pulley and sheave

A pulley is one of six types of simple machines. A sheave (pronounced “shiv”) is actually part of the pulley system. The sheave is the rotating, grooved wheel inside the pulley. This is the piece that the rope fits into.

What means sheave?

: a grooved wheel or pulley (as of a pulley block) sheave. verb. \ ˈshēv \ sheaved; sheaving.

What is a sheave in rigging?

1. n. [Drilling] A pulley. In oilfield usage, the term usually refers to either the pulleys permanently mounted on the top of the rig (the crown blocks), or the pulleys used for running wireline tools into the wellbore.

What is a sheave on a ship?

In sailing, a sheave is a single or multiple pulley. One or a number of sheaves are enclosed in an assembly between cheeks or chocks. … A line (rope) is reeved through the sheaves, and maybe through one or more matching blocks at some far end, to make up a tackle.

What is a pulley called?

In this context, pulleys are normally known as blocks. … In the case of a pulley supported by a frame or shell that does not transfer power to a shaft, but is used to guide the cable or exert a force, the supporting shell is called a block, and the pulley may be called a sheave.

What are synonyms for sheaves?

noun. 1’he sat down at the table with a sheaf of papers’ bundle, bunch, stack, pile, heap, mass, armful, collection. informal load.

What is sheave pulley?

A sheave (/ʃiːv/) or pulley wheel is a grooved wheel often used for holding a belt, wire rope, or rope and incorporated into a pulley. … Sheaves can be used to redirect a cable or rope, lift loads, and transmit power.

What type of pulleys are in boat?

Your ‘pulley’, on a boat is called a Block. The grooved wheel is called a sheave and is usualy made of brass. Its axel is called a pin and is usually made of stainless steel. The rope to pull the sail is called up a halyard.

How are pulleys used on boats?

Pulleys on a boat are called blocks (as in “block and tackle”). They are used anywhere you need to change the direction of a pull on a rope, and also to create a mechanica advantage. Pulleys are used in sailing because of the amount of force that is needed to change the shape of the sails.

What is a sheave assembly?

Sheave assemblies are the wheels located on lift towers. Towers are placed on a. lift line to support the cable and transfer the live load of passengers and chairs to. the ground.

Article first time published on

What is a block and sheave?

199 products. Sheaves and pulley blocks are devices that aid the lifting or pulling of loads. They mount to a surface or suspend from equipment and have a grooved wheel (sheave) for guiding a wire rope or aircraft cable that’s attached to the load.

What is a sheave made of?

The grooved wheel components are used alongside ropes, cables, or chains in pulley systems to change both the direction and amount of force employed to facilitate the lifting and lowering of materials and equipment. Traditionally, sheaves have been made from cast iron or steel.

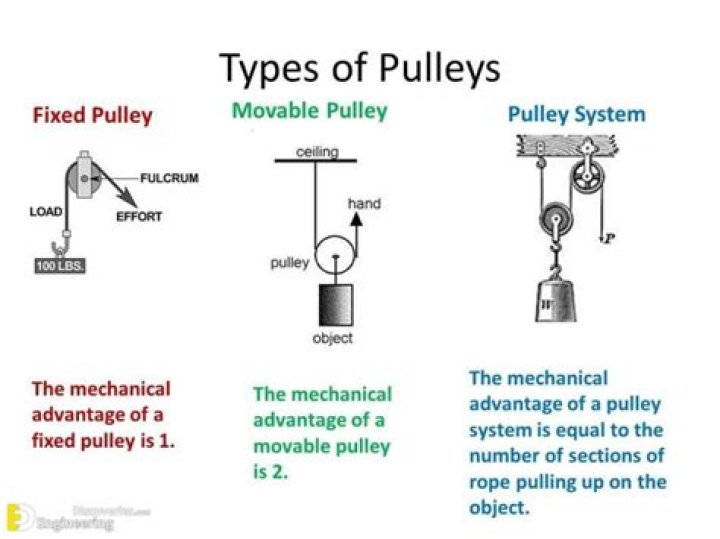

What are the 3 main types of pulleys?

• Fixed pulleys are a very common pulley. These pulleys are secured to a single spot. …
• Movable Pulleys are yet another type of pulley. …
• Compound Pulley Systems are a combination of both movable and fixed pulleys.

What are the 3 kinds of pulley?

There are three main types of pulleys: fixed, movable, and compound.

What are the 5 types of pulleys?

• Fixed.
• Moving.
• Block and Tackle.
• Cone.
• Swivel eye.

What is sheave V belt?

V-belt pulleys (also called vee belt sheaves) are devices which transmit power between axles by the use of a v-belt, a mechanical linkage with a trapezoidal cross-section. Together these devices offer a high-speed power transmission solution that is resistant to slipping and misalignment.

What does the winch and sheave do?

Whether you need a winch to pull vertically, horizontally or through a series of pulleys, Eilbeck Winches, Sheaves and Capstans are the right choice for any mining application. … Winches are manufactured with integrated manual and lockable drum locking systems for secure and safe maintenance and inspection.

How do you make a sheave?

The weight of our cast nylon sheaves is one-seventh the weight of steel sheaves. In heavy cranes with multiple reeving, the weight savings adds up quickly. The total axle load on a large mobile crane (which may use as many as 18 sheaves) can be reduced by almost 2,200 Ibs by using Timco sheaves.

What is the opposite of sheaves?

Opposite of a great amount. lack. deficiency. insufficiency. inadequacy.

What is a sheaf of corn?

A sheaf of corn or wheat is a number of corn or wheat plants that have been cut down and tied together.

How much is a sheaf of wheat?

How Much Grain in a Sheaf? Hebrew scholars equate the term “sheaf,” an amount of grain large enough to require bundling, with the Hebrew term “omer.” An omer was a unit of dry measure equal to 4 dry pints. A sheaf was a size that could be put under the arm.

Why are pulleys called blocks?

Pulleys are grooved wheels designed to be fitted with a cable or rope, and to turn freely within a block. The rotational effect of the wheel allows the user to change the direction of the force being used. … When this is done, it is called a block and tackle.

How is a cargo lift a pulley?

A cargo lift system that allows for items to be hoisted to higher floors is a pulley system. Wells use the pulley system to hoist the bucket out of the well. Many types of exercise equipment use pulleys in order to function. Construction pulleys are used in order to lift and place heavy materials.

What is block in ship?

In sailing, a block is a single or multiple pulley. One or a number of sheaves are enclosed in an assembly between cheeks or chocks. In use, a block is fixed to the end of a line, to a spar, or to a surface. … There are various types of blocks that are used in sailing.

What type of pulley is a sailboat?

Pulleys on boat are called blocks. The actual turning part is called a “sheave”, and the rigid part holding the sheave is called a“shell”. Blocks are named depending how many sheaves they have, the configuration of sheaves, and whether the cheeks can be opened to allow or are fixed.

What is a cheek block?

Cheek Blocks (Cheekblocks) or Turning Blocks are designed to be attached to a flat surface, allowing the line to run parallel to that surface. Mounted on the Deck, they are used as sheet and Foot Blocks, and as Deck Organizer Blocks.

How do you measure a sheave?

Use a Ruler to Measure the Sheave This is simple — lay the ruler’s edge across the center of the sheave and measure the diameter. With that measurement, you can calculate the ID by measuring the depth of the groove. Following the same example as before, suppose you measure 100mm across the sheave – that’s the OD.

What is the meaning of sheaves in the Bible?

Sheaves and Scripture Sheaves of grain are revered in the Bible and in ancient cultures. The bundles were appreciated for the hard work that went into growing, harvesting and drying out these beneficial crops. It was the focus of a popular gospel song in the late 1800s.

What is a sheave in an elevator?

A sheave is just a pulley with a grooves around the circumference. The sheave grips the hoist ropes, so when you rotate the sheave, the ropes move too. … The ropes that lift the car are also connected to a counterweight (4), which hangs on the other side of the sheave.

What are examples of pulleys in everyday life?

• Wells.
• Elevators.
• Exercise Equipment.
• Theatre Curtains.
• Construction Equipment.
• Flagpoles.
• Blinds.
• Rock Climbers.

What is a sheave on an overhead crane?

Sheaves facilitate the smooth and safe operation of overhead crane hoists. Damaged sheaves can wear ropes prematurely and cause other dangerous hazards, such as binding wire rope.
