What is the extension of a spring

An extension spring’s ends attach between two mechanisms. The extension springs hooks and loops store and absorb energy. Through hooks or loops, an extension spring provides return force to connected mechanisms. Tightly wound extension springs typically sit in the no-load position.

How do you find the extension of a spring?

1. Measure the spring wire diameter, preferably to 3 decimal places for accuracy using calipers.
2. Measure the outside diameter of the coils (this may vary slightly coil to coil). …
3. Measure the body length of the spring.

What is the formula of extension?

F = keF = k x ee =e = F ÷ k

What is an extension spring made of?

Just as with other types of springs, extension springs can be made from a range of materials including: High carbon steel.Stainless steel. Alloy steels.

How is an extension of a spring measured GCSE?

1. For each result, calculate the extension: extension = length – unloaded length.
2. Plot a line graph with extension on the vertical (y) axis, and force on the horizontal (x) axis. …
3. Identify the range of force over which the extension of the spring is directly proportional to the weight hanging from it.

What is the difference between extension springs and torsion springs?

Extension springs fully expand and contract when operating an overhead door. Torsion springs turn. Torsion springs are sturdier and last longer. Torsion springs do cost more, but generally last between 15,000 and 20,000 cycles, whereas extension springs last up to 10,000 cycles.

How do I create a spring extension?

1. Calculate Working Loads. To calculate spring load (L), you must multiply your spring’s rate (k) by the distance your spring is required to travel or extend (T) and add the initial tension (IT). …
2. Calculate Rate. …
3. Calculate Travel.

How do you calculate an extension in physics?

1. If you measure how a spring stretches (extends its length) as you apply increasing force and plot extension (e) against force (F);
2. F = ke.
3. F = tension acting on the spring.
4. e is extension = (l-lo); l is the stretched length and lo is original length, and.
5. k is the gradient of the graph above.

Who invented extension of spring?

The first spring powered-clocks appeared in that century and evolved into the first large watches by the 16th century. In 1676 British physicist Robert Hooke postulated Hooke’s law, which states that the force a spring exerts is proportional to its extension.

What does the extension of a spring depend on?

Hooke’s law of elasticity is an approximation that states that the extension of a spring is directly proportional to the load applied to it.

Article first time published on

How do you identify spring Obey's Hooke's Law?

To know if the given spring obeys Hooke’s law or not, record each stretching force in Newtons and the corresponding length of the spring. The extension is the new length minus the unloaded length.

How is spring rate calculated?

To calculate the amount of spring rate you will need on order to meet your working loads, simply divide the load you will be applying on your spring by the distance you expect your spring to travel or compress under that load.

Can you open a garage door with a broken spring?

Garage doors with broken springs should not be opened. Doors in this condition can be difficult to lift because the garage door opener loses the support springs provide in lifting and lowering the door. … We don’t recommend attempting to open a garage door with a broken spring but sometimes it’s an absolute emergency.

What does the spring do on a garage door?

Regardless of the type, your garage springs are responsible for helping the door raise and lower. When the garage door is lowered, the springs gain tension. When raising the garage door, tension is released and the spring assists with the lifting.

What are the 4 types of springs?

Different types of springs: compression, extension, torsion, & constant force springs.

How many types of springs are there?

Again, there are three classes of springs: linear (or constant rate) springs, variable rate springs, and constant force springs.

How do springs work physics?

Springs are great for storing or absorbing energy. When you use a pushing or pulling force to stretch a spring, you’re using a force over a distance so, in physics terms, you’re doing work and using energy. The tighter the spring, the harder it is to deform, the more work you have to do, and the more energy you need.

What is an extension in physics?

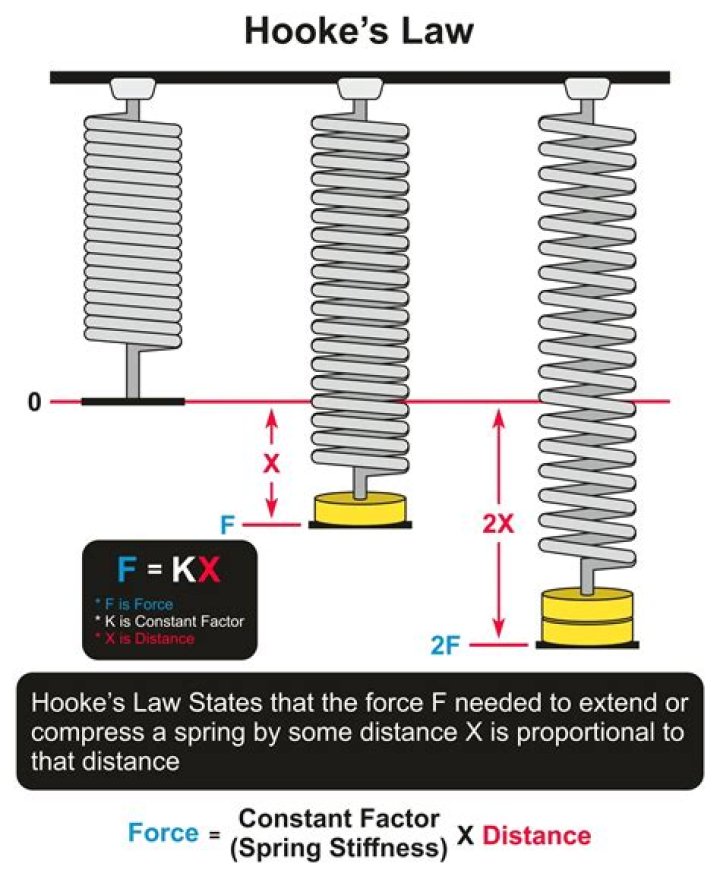

Extension happens when an object increases in length, and compression happens when it decreases in length. The extension of an elastic object, such as a spring, is described by Hooke’s law: force exerted by a spring = extension × spring constant.

How do you find the length of a spring in physics?

The total length L of a spring under extension is equal to the nominal length plus the extension, L = L 0 + x L=L_0 + x L=L0+xL, equals, L, start subscript, 0, end subscript, plus, x.

What is the maximum extension of the spring?

The maximum extension should be 2F/k . F/k is the extension in the spring in the equilibrium position . Maximum extension should be double of that . Work energy theorem also gives maximum extension to be 2F/k .

What is Hooke's Law Year 7?

Year 7 had a fascinating lesson in Physics experimenting on Hooke’s Law which states that the force needed to extend or compress a spring by some distance is proportional to that distance.

What states have Hooke law?

Mathematically, Hooke’s law states that the applied force F equals a constant k times the displacement or change in length x, or F = kx. … Hooke’s law describes the elastic properties of materials only in the range in which the force and displacement are proportional.

How do you calculate how much a spring is compressed?

F = -kx. The proportional constant k is called the spring constant. It is a measure of the spring’s stiffness. When a spring is stretched or compressed, so that its length changes by an amount x from its equilibrium length, then it exerts a force F = -kx in a direction towards its equilibrium position.

What is spring force formula?

The spring force formula is expressed through the equation: F = – kx. … As a formula, it reworks Hooke’s Law and is expressed through the equation: k = – F/x. Where k is the spring constant, F is the force applied over x, and x is the displacement by the spring expressed in N/m.

How do you find the spring constant with mass and extension?

W = kx. W is the weight of the added mass. Therefore, the spring constant k is the slope of the straight line W versus x plot. Weight is mass times the acceleration of gravity or W = mg where g is about 980 cm/sec2.

What is spring rate?

Spring rate refers to the amount of weight that is needed to compress a spring one inch. If the rate of the spring is linear, its rate is not affected by the load that is put on the spring. For example, say you have a 200 lb. per inch spring – it will compress 1” when a 200 lb.

What is spring load?
