What is the fuel pump pressure for TBI

The fuel pressure regulator is set for approximately 12 psi (30 psi on ’94 & ’95 BBC trucks). With a service range of 9 to 13 psi being considered good.

How much fuel pressure does a throttle body injection need?

Injector pressures range from 13 to 16 psi (low pressure system) or 35 to 60 psi (high pressure system), and are kept constant by the fuel pressure regulator. The fuel pressure regulator is a vacuum-operated diaphragm, so that during cold start operation maximum fuel pressure and volume are supplied.

How much pressure does an in tank fuel pump have?

Electric fuel pumps are normally used to supply the higher pressure demanded by the system. The required pressure can be as high as 66 psi with port injection. The pressure on the throttle body injection systems is between 9 and 18 psi.

What PSI should my fuel pressure be?

Fuel pressure for most vehicles should stay in a 5- to 10-psi range.

What is the fuel pressure on a 5.7 TBI?

In stock form a tbi operates 11 to 13 psi running a bit higher makes them run better to a point of about 14.5 with everything stock have you added things like air intake kit throdle body spacer and such then you may be okay If the presure is pushed past 14.5 psi then the computer should be reprogramed for the higher …

What are the symptoms of low fuel pressure?

• Unresponsive Throttle. All cars require proper fuel delivery to their cylinders for them to run properly. …
• Difficulty Starting the Car. Low fuel pressure will also make it hard for you to ignite your car’s engine. …
• Stalling Engine. …
• Check Engine Light Comes to Life. …
• Turbo Lag. …
• Misfires. …
• Low Performance.

What should fuel pressure be at idle?

When an engine is idling, it may be pulling 20 inHg of vacuum, which translates to roughly 10psi. The reference to the regulator will allow it to adjust and lower the pressure in the rail to 48psi, resulting in 58psi effective pressure, which is the same as the base pressure.

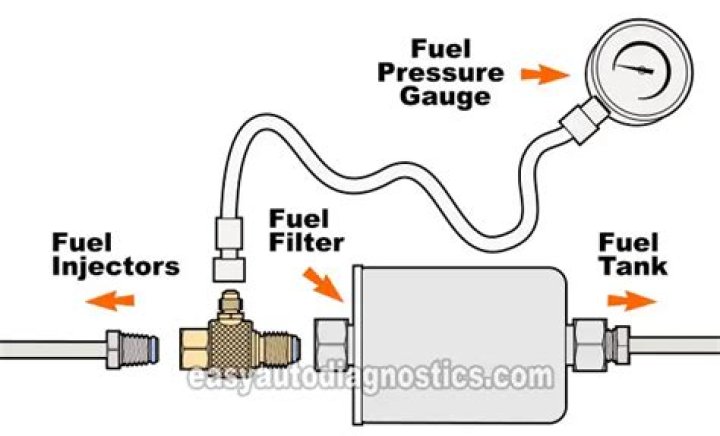

What is a fuel pressure gauge?

Fuel Pressure Gauge Fuel pressure gauges are instruments that are used to measure and indicate the amount of fuel in a fuel tank. Fuel is one of the essential ingredients in combustion, and fuel pressure gages help to ensure that sufficient quantities of fuel are available in order to make combustion possible.

Should rpm increase fuel pressure?

It is strictly for low rpm drivability and idle quality. Unless you have a turbo or supercharged car. Then you need a reference for increasing fuel as boost increases.

How much fuel pressure does a carburetor need?

Fuel pressure should be set between 6 and 8 psi for a gasoline carburetor. An alcohol carburetor is a different animal with very different requirements. The Alky carburetor will require 4 to 5 psi at idle and 9 to 12 psi at wide open throttle.

Article first time published on

How do fuel pressure regulators fail?

Fuel Pressure Regulators Commonly Fail, In One Of Two Ways: When the fuel pressure regulator gets stuck and builds up more pressure then it should; it’ll cause the injectors to deliver too much fuel; causing a rich mixture (high pressure) condition.

What happens if fuel pressure is too high?

Too high of pressure may result in, over fueling of the engine. As a result, this can lead to a rough running engine; poor fuel mileage, and black smoke coming from the exhaust. If your regulator is going bad, your car could display several different symptoms.

How do I know which fuel pump I need?

A good estimator of volume to power is approximately 10 hp per gallon or 2.64 hp per liter. For example if your pump flows at 50 gph it should be able to support a 500 hp engine (50 x 10 = 500). However, to actually know the gph you must also consider the fuel pressure required for your engine.

What is the difference between TPI and TBI?

TBI is basically a high tech carb. The injectors are mounted in the throttle body. TPI is usually multiport fuel injection. There is one injector per cylinder, therefore more effective.

What's better TBI or carb?

So most TBI systems can tolerate radical cams with durations up to about 250° with much more finesse than a carburetor. The engine will run smoother, idle better, start easier and provide better throttle response and cold driveability with TBI than a carburetor.

What causes a throttle body to flood?

This is most likely a throttle body component failure, a fuel line leak or a fuel injector that is always active. It might be a good idea to have a professional mobile mechanic complete a fuel system inspection to determine what is causing this problem.

Where is the fuel pressure regulator on a 1994 Chevy Silverado?

under the hood on top of the left fender apron (relay/fuse block)

Does increasing fuel pressure increase power?

The noob belief amongst amateur tuners is increasing the fuel pressure up a few psi from the regulator will mean the injectors are getting moaar fuel which will increase the horsepower. Wrong. Truth be told, aftermarket FPRs are not necessary and the factory OEM FPR will do the job just fine.

What does a low pressure fuel pump do?

What is a Fuel Pump and What Does It Do? Mechanical pumps run off of the motion of the engine; a diaphragm mounted to the outside of the fuel tank expands and contracts, creating a low-pressure system that forces the fuel out of the tank and into the engine.

Why does fuel pump lose pressure?

Typical causes for low fuel pressure include a dirty fuel filter, weak pump, incorrect tank venting, restricted fuel lines, a clogged pump inlet strainer and faulty electrical control. … The fuel pump driver module on Ford trucks of this vintage is known for corrosion-caused failures.

Is fuel return line high pressure?

In return-type systems, fuel is returned at a lower pressure than that found in the feed line or fuel rail. … These regulators work by allowing the line pressure to build to a level higher than normal line pressure before venting excess pressure back to the tank.

Do you really need a fuel pressure gauge?

Here’s something for you to think about: Your fuel pressure gauge is basically worthless, because fuel pressure doesn’t matter. … But fuel volume is required to maintain the appropriate fuel pressure, so you should be measuring fuel volume rather than fuel pressure.

Where is a fuel pressure regulator?

You will find fuel pressure regulators typically located at the end of the fuel rail on mechanical return systems, or at the fuel tank in mechanical return-less fuel delivery systems.

Where do you put a fuel pressure gauge?

For safety, you MUST mount the gauge outside the driver’s compartment. Bringing fuel into the driver’s compartment is a major fire hazard and safety risk. Most people mount the gauge just in front of the windshield, where the driver can still see it.

What is the fuel pressure on a mechanical fuel pump?

On modern automobiles, the average fuel pump pressure is over 60 PSI (pounds per square inch). On classic cars with mechanical style fuel pumps, however, the pressure is much lower—between four and six PSI. If you suspect that your fuel pump is not producing enough pressure, there are two tests you can perform.

Can you use an electric fuel pump with a carburetor?

Yes, you can and some cars like Chevrolet Vegas and equipment was factory manufactured with electric fuel pumps. Many electric fuel pumps are designed to run in fuel tank or inline outside the tanks , with pre-set fuel pressure for carburetor use.

Do I need a fuel pressure regulator on a carburetor?

A fuel pressure regulator is always needed.

What are the symptoms of bad fuel pressure regulator?

• Engine misfires/poor acceleration.
• Black smoke coming from the exhaust.
• Spark plugs appear black.
• Reduced fuel mileage.
• Gasoline in the vacuum hose.
• Engine backfires.
• Engine won’t crank.
• Excessive fuel pump noise.

How often should you change fuel pressure regulator?

How often should regulators be replaced? Generally, regulators should be replaced every five years. Each regulator is typically stamped by the manufacturer with its date of production.

How much voltage should a fuel pump have?

System voltage should read 11.8 – 12.6v DC or higher with no electrical loads on the system. If voltage reads less, starting and charging system should be investigated before performing fuel system electrical testing. 1. Connect digital voltmeter to fuel pump wiring at fuel pump connector.

Can I use any fuel pump?

As long as a fuel pump provides the Flow Rate your engine needs at the pressure your Fuel Injected or Carbureted system requires, it will work just fine. It is just a matter of deciding which one works best for your installation.
