What is the gap between the coil and flywheel

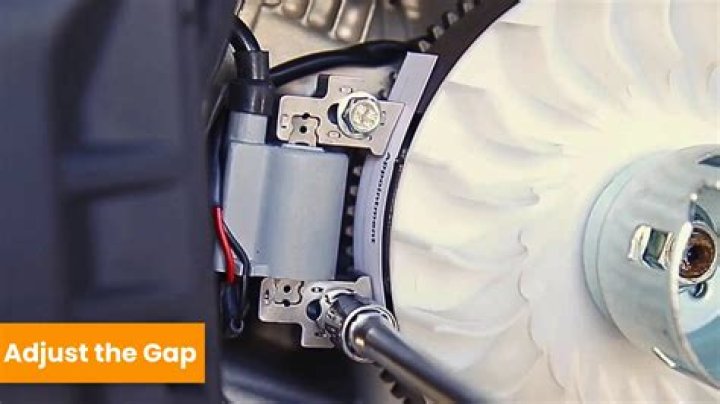

An ignition armature must be set at a precise distance from the flywheel. Your engine repair manual will provide the proper gap for your engine. Common armature gap ranges are . 006 – .

What is the gap between the coil and flywheel? - Google Search

010-inches or between . 010 and . 014-inches. Rotate the flywheel so that the flywheel magnets line up directly with the magnetic coil and filler gauge tool.

What is the spark plug gap on a Briggs and Stratton?

Replacement Part TypeBriggs & Stratton Spark Plug Part NumberSpark Plug GapElectromagnetic Suppression (EMS) (Replaces Champion QC12YC)691043 792015.030”Extended Life Series® OHV Spark Plug Platinum (Replaces Champion RC12YC)696202 5066 (5066D, 5066H).030”

Should magneto touch flywheel?

The magneto should not touch the flywheel. In fact, you have to adjust the gap between the coil and flywheel magnets so that the flywheel magnet lines up directly with the magnetic coil and feeler gauge tool.

What is a magneto and what does it do?

magneto, permanent-magnet generator mainly employed for ignition of compressed gasses in internal combustion engines. Primary applications have been in small aircraft, marine, tractor, and motorcycle engines, which may not have an available battery supply.

How do you test a flywheel magnet?

Be sure the magnet you are testing is rotated away from the magneto when testing takes place. Hold the screwdriver against the magnet, if the magnet pulls the screwdriver in, the magnet is fine. If it seems weak or does not pull the screwdriver in, the magnet needs to be replaced.

What is a magneto on a small engine?

The magneto is a self-contained generator of high voltage that provides ignition to an engine through spark plugs. … The moment the contact points open, a rapid magnetic flow generates a high voltage in the secondary coil, which ignites the spark plug, thus firing the engine.

What is the difference between a coil and a magneto?

A magneto is an engine driven device consisting of a rotating magnet and field poles. It needs no battery, and generates current to spark a spark plug. A coil is a device used in an ignition system that is actually a trsnsformer that steps battery voltage up to approx. 30,000 volts.

Is a magneto AC or DC?

Is a Magneto Ac or Dc? A magneto is an electrical generator that uses permanent magnets to produce periodic pulses of alternating current. Unlike a dynamo, a magneto does not contain a commutator to produce direct current.

What is the gap on a spark plug for a lawn mower?

Checking and Gapping the Spark Plug The gap, or distance between the electrodes, should be between 0.028 and 0.031 inches. Check the gap with a gap gauge and adjust the ground electrode until the gap falls between the two numbers.

Article first time published on

How do I know if my lawnmower coil is bad?

One of the symptoms of a bad lawn mower ignition coil appears when you are mowing the lawn and the mower gets hot and literally shuts off. The mower must cool down over a period of time and will start and run for awhile until it gets hot again, at which time it will shut off again.

What causes no spark on lawn mower?

If no spark appears, check for broken wires, shorts, grounds or a defective stop switch. Once you have confirmed that the stop switch is working, reconnect the spark plug lead.

What is the gap on a Briggs and Stratton Magneto?

Replacing Ignition Coils or Armatures Your engine repair manual will provide the proper gap for your engine. Common armature gap ranges are . 006 – .

When did Briggs and Stratton stop using points?

Magnetron Ignition – This solid state ignition system introduced by Briggs & Stratton in 1982 eliminated the points and condenser system, the performance of which steadily degraded between required periodic maintenance service.

Do old Briggs and Stratton engines have points?

Since 1982, Briggs & Stratton engines have used a solid-state ignition. Models built before 1982 employed a magneto, points and condenser system to generate spark for the spark plug. If you are using an older model Briggs & Stratton engine that has no spark, you might need to set the points.

Do all spark plugs come pre-gapped?

Not always. In the past, it was necessary to gap spark plugs, but today spark plugs are usually pre-gapped. It is advisable to double check that the gap is correctly set to the vehicle’s recommended setting when installing spark plugs.

What will happen if the spark plug gap is too wide?

An engine that hesitates, or stumbles, upon acceleration is often the result of incorrectly gapped spark plugs. If spark plugs are gapped too wide, the ignition spark loses some of its strength as it crosses the spark plug gaps. This can result in engine hesitation.

How do you gap a spark plug without a tool?

Using the gapper is simple. All you need to do is slide the spark plug electrode opening into the gap opener and gently move it over to the smallest side of the gapper. Once it hits the 0.02” area, press the electrode down until it’s flush on each end of the gapper.

How do you check a magneto is working?

Pull the rubber casing off the spark plug. Set the multimeter into the ohms function, or just use an ohmmeter. Manually set the dial or button on the meter to the 40 k range. Do not use auto ranging, as it is unreliable with a magneto.

What are the 3 circuits of a magneto?

4. What are the three major circuits of a high-tension magneto system? The magnetic circuit, the primary electrical circuit, and the secondary electrical circuit.

Who is magneto daughter?

Polaris (Lorna Dane), Magneto’s daughter, makes her live-action debut in this feature. She is the third of Magneto’s children to appear in the X-Men films universe, after her half-brother Quicksilver (Peter Maximoff) in X-Men: Days of Future Past (2014) and her half-sister in Apocalypse.

What is the gap for points?

The Haynes manual recommends a point gap of . 016-. 020 inches for engines used in the P1800.

In what position should the crankshaft be when a magneto is being timed to the engine?

It should be installed in the middle of its slotted flange to allow for fine timing of the magneto to the engine. Attach a timing light to both magnetos. With the engine still in the firing position, the magnetos should be timed by moving them in the flange slots until the breaker points in the magneto just open.

Where is the E-gap position in a magneto?

The position of the rotating magnet in a magneto when the breaker points are timed to open. The E-gap (efficiency gap) angle is several degrees of magnet rotation beyond the magnet’s neutral position.

Why is there a drop in rpms when switching to magneto?

It is possible for the rpm drop on each mag to be within limits but the difference between the mags to be excessive. The most common problem here is improper timing of one or both magnetos. Get it checked out. A very small difference between the mags is all right.

Does a magneto charge a battery?

No, the magneto is not connected in any way to the battery on a stock Model T. To do so without the diode mentioned above would result in discharging the magnets. To use the magneto as a battery charger, you will need the diode and light bulb mentioned above.

How much voltage should a magneto put out?

Math. The voltage generated by a magneto is 50 volts. The coil increases this to 15,000 volts.

How many magnets are on a flywheel?

There is only one magnet in the flywheel. The other piece of steel is a counterbalance and may have only picked up some residual magnetism. If you’ve got strong magnetism in the one piece, your flywheel is good. It’s possible that your ignition coil is bad.

Can a flywheel cause no spark?

The magnets as North and South on a Flywheel. They are usually even labeled, at least in most Stihls. If they are no longer N/S, even if they have magnetism, they won’t make a spark. So yes, it can occur.

Is an alternator a magneto?

A magneto is an electrical generator that uses permanent magnets to produce periodic pulses of alternating current. … It is categorized as a form of alternator, although it is usually considered distinct from most other alternators, which use field coils rather than permanent magnets.

What is ignition harness?

The completely screened set of cables, connectors, and terminals serving spark plugs of reciprocating engines and which carry high-voltage current from the magnetos or electronic ignition to the various spark plugs.
