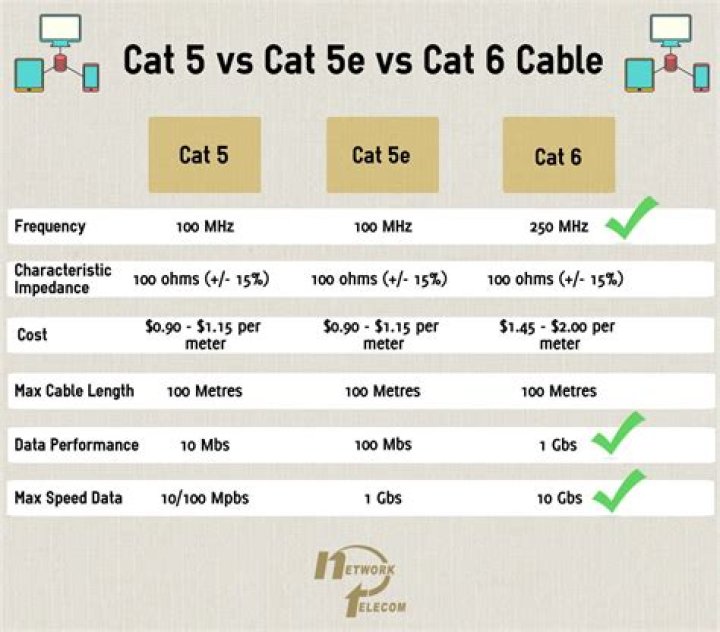

What is the max speed of CAT 5 cable

The Cat 5 speed is capable of 10/100 Mbps and frequencies up to 100MHz all at a length up to 100m (328 Feet). The Cat 5 performance is set by TIA/EIA which are engineering standards set by a group of individuals to give manufacturers, businesses and individuals clear expectations on cable performance.

Is Cat 6 faster than Cat 5e?

Cat 6 is pricier and faster than Cat 5e, but also limited by distance. Cat 6 supports data transfer speeds up to 10 Gbps at 250 MHz with even less (or no) crosstalk interference, due to the cable’s improved insulation. However, its 10 Gbps speed is effective only up to 164 feet.

Can Cat 5 do gigabit?

The old-fashioned Cat 5 cable is no longer a recognized standard, but it technically supports gigabit speeds–just not well. Cat 5e cable is enhanced to reduce interference so that it can reliably deliver gigabit speeds. However, Gigabit Ethernet still pushes the cable to its limits.

What is the max speed of a cat 6 cable?

Both CAT5e and CAT6 can handle speeds of up to 1000 Mbps, or a Gigabit per second. This is more than sufficient for the speed of by far the most internet connections. The chance is small that you currently have an internet connection with which you can achieve up to 500 Mbps speed.

What is the max speed of Cat 7 cable?

As you may have already seen, a Cat7 cable has a max. speed of 10.000 Mbit/s and a Cat6 cable has a max. of 1.000 Mbit/s. Also, the Cat7 has a higher frequency than the Cat6.

Which is better Cat5 or Cat6?

What are the Advantages of a Cat6 Ethernet Cable? Compared to Cat5/5e cables, Cat6 cables have stricter performance specifications and significant higher data transfer speeds at greater distances. They are more tightly wound than Cat5 cables, and the cable conductors and cable sheath are thicker as well.

What's better Cat6 or Cat5e?

Cat5e cables support only up to 1000BASE-T (Gigabit Ethernet). Cat6 cables are usually a better choice than Cat5e, in that technologically moving forward they are more suited to handle faster connection speeds and are worth their slight difference in price. … Cat6 cables provide performance speeds up to 250MHz.

What is Cat 5 Ethernet cable?

Category 5 cable (Cat 5) is a twisted pair cable for computer networks. … The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair up to 2.5GBASE-T but more commonly runs at 1000BASE-T (Gigabit Ethernet) speeds.

What is the difference between Cat 5 and Cat5e?

The difference between Cat5 and Cat5e is that the Cat5e has a higher throughput speed of 1,000 Mbit / s. Also called Gbit / s. This is 10 times faster than the throughput speed of a Cat5 cable. … All systems that work with a Cat5 cable therefore also work with a Cat5e cable.

How can I tell Cat5e from Cat 5?

Easiest way to tell cat5 and cat 5e apart is to look at the number of twists in the green pair. If the green pair has the same number of twists as the orange and blue pairs, then it’s cat5e, if it has the same number of twists as the brown pair, then it’s cat5.

Article first time published on

Is CAT5 good for 4k?

cat5 or cat5e will be absolutely no problem for you – you can go with the cat6 if you want, but there’s no need for it. I have installed many a cable in businesses that depend on their rapid data transfers et cetera – and that cat5 cable, which can handle gigabit no problem, will do just fine for 4k.

Is Cat 5 cable good for CCTV?

Advantages of using a CAT5 cable for CCTV applications To begin with, CAT5 gives long distance video transmission capability. By using a CAT5 cable you can run CCTV colour video footage over 1000 metres. … PTZ camera: When you wire a PTZ camera, you can use one cable to power, transmit video and transmit data.

Does Cat6 fit into CAT5?

A Cat6 cable has a bandwidth capacity of 250 MHz, for example, and it offers you speeds of up to 10 Gbps. It’s also compatible with both Cat5 and Cat5E cables.

Can I use Cat5 instead of cat7?

The Cat 7 cable is compatible with the Cat 6, Cat 5, and Cat 5 cable categories. It offers 90/100m 4-connector channels using shielded cabling and is designed to transmit signals at frequencies up to 600MHz. … This way it allows the user to get maximum speed even with long cables.

What is cat 8 cable used for?

Cat8 cable supports Power over Ethernet (PoE) technology for delivering power and data over a single cable. By eliminating or reducing the need for power cords, Cat8 cable can save space in crowded server rooms and simplify edge computing installations. With a maximum range of 98 ft.

What is difference between Cat5 and CAT 6 cable?

The big difference between Cat5 and Cat6 cables is the amount of data that can be sent. Cat6 has a higher bandwidth compared to Cat5. You can compare this with a water pipe: more water can flow through a wide water pipe, should you compare it to a more narrow water pipe.

What is the fastest Ethernet cable?

Cat 8, the next generation of Ethernet cables, is on the horizon but for the time being, Cat 7a (Cat 7 “augmented”) is the highest-performing Ethernet cord available. Like the Cat 6a and Cat 7 cables, the Cat 7a supports speeds up to 10,000 Mbps, but the max bandwidth is much higher at 1,000 MHz.

What is cat 7 Ethernet cable?

A Category 7 cable (CAT 7) is used for the cabling infrastructure of Gigabit Ethernet with performance of up to 600MHz. Put simply, a CAT 7 cable is what we recommend you use when wiring your smart home.

Is Cat 5 good enough for gaming?

Generally what you look for is cable with a good connector that’s rated for the speed you want. Gaming takes very little bandwidth… I would say 100 mbps speed is way overkill… Therefore any Cat 5, Cat 5e, or Cat 6 cable will do. Any modern cable that’s not falling apart will be great, you can’t do any better.

How Fast Is Cat 5 vs Cat5e?

There are two main differences between the Cat5 and Cat5e network cables. On the one hand, Cat5 Ethernet cable supports speeds up to 100 megabits per second, while Cat5e supports networks up to 1 gigabit (1000 megabits per second).

Why does Cat5 have 8 wires?

The 8 wires make up 4 pairs of transmit and receive. Think of them as lanes on a highway. In 10/100 Mbps speeds, 4 wires or 2 pairs are used, equating to a two lane highway in each direction. It allows decent traffic to pass but gets clogged easy if a few semis (read Ethernet streaming video) get on the highway.

What is the maximum length of a Cat5e Ethernet cable?

Category 5e Cable Length Recommendations The maximum for a CAT5e cable segment is 100 m. Category 5 Enhanced cable supports up to 1000 Mbps (Gigabit) Ethernet speeds as four wire pairs are utilized.

How long has Cat5e been around?

Cat5e was introduced around 2000 and, as its name suggests, served as an “enhanced” version of Cat5. It offered the same bandwidth (100 MHz) but was designed to reduce crosstalk and handle speeds up to 1,000 Mbps, making it the first Cat standard capable of supporting the dream of Gigabit Ethernet.

Is Cat5e good for home network?

Cat5e is fine for most, but Cat6 is still better Whether you’re setting up a home network, replacing old cables, or looking to enhance your workplace LAN, Cat6 cables offer more.

Can Cat6 handle 8K?

8K displays are getting prepped for the holiday season, and 8K with all its pixel-popping glory requires up to 4x the bandwidth of traditional twisted pair cabling. That means Cat 5 and Cat 6 won’t deliver the signals your customers expect. 8K was designed for fiber optics.

Is Cat 5e enough for PoE?

Short answer: Yes, Cat5e can do PoE (Power over Ethernet). PoE (Power over Ethernet) allows cat5e patch leads and cat5e bulk cable to provide electric power as well as a data connection to devices such as switches, HDMI extenders, IP cameras, and routers.

How many cores does CAT5 cable have?

Cat5 cables were just using 4 of the 8 wires, so only 4 are actualy ‘needed’. Why not 12 or 16 wires? There are ethernet cables with more than 8 cores (4 pairs). Remember, Ethernet is not a type of cable!

Can I use CAT5 cable for PoE?

CAT5E and higher will support PoE on all voltages. CAT5 will support lower voltages too. Anything lower is not recommended. Given that CAT5E is a standard for a long time now, chances are high that you currently have CAT5E cables.

Can I use CAT5E for CCTV?

In recent years the invention of the video balun has meant CAT5e cable can be used to connect CCTV cameras to CCTV DVR recorders. All the connections can be made using only a screwdriver, no need for special tools or fiddly components.

Can you use Cat 6 for CCTV?

Never use a CAT 6 cable for analog or HD cctv cameras. Use CAT6 only for IP cameras. The reason is very simple. Analog cameras transmit analog signals which are best transmitted over a coaxial cable.

Which is faster WiFi or Ethernet?

A WiFi connection transmits data via wireless signals, while an Ethernet connection transmits data over cable. … An Ethernet connection is generally faster than a WiFi connection and provides greater reliability and security.
