What is the meaning of brittle material

Brittleness describes the property of a material that fractures when subjected to stress but has a little tendency to deform before rupture. Brittle materials are characterized by little deformation, poor capacity to resist impact and vibration of load, high compressive strength, and low tensile strength.

What are brittle materials with examples?

Brittle materials have a small plastic region and they begin to fail toward fracture or rupture almost immediately after being stressed beyond their elastic limit. Bone, cast iron, ceramic, and concrete are examples of brittle materials.

Where are brittle materials used?

Brittle materials are extensively used in many civil and military applications involving high-strain-rate loadings such as: blasting or percussive drilling of rocks, ballistic impact against ceramic armour or transparent windshields, plastic explosives used to damage or destroy concrete structures, soft or hard impacts …

Why a material is brittle?

A material is brittle if, when subjected to stress, it fractures with little elastic deformation and without significant plastic deformation. Brittle materials absorb relatively little energy prior to fracture, even those of high strength.

What is meant by ductile material?

Ductility is the ability of a material to be drawn or plastically deformed without fracture. It is therefore an indication of how ‘soft’ or malleable the material is.

Is Aluminium a brittle metal?

Aluminium has a ductile fracture behavior at all temperatures. The properties of many metals change when exposed to very low temperatures. These changes occur in strength, toughness, brittleness, and durability. Aluminium is known to sustain or even improve both ductility and toughness at very low temperatures.

Is glass brittle?

The amorphous structure of glass makes it brittle. Because glass doesn’t contain planes of atoms that can slip past each other, there is no way to relieve stress. … As the crack grows, the intensity of the stress at its tip increases. This allows more bonds to break, and the crack widens until the glass breaks.

Is Mirror brittle?

Many optics—both refractive lenses and reflective mirrors—consist of brittle materials.

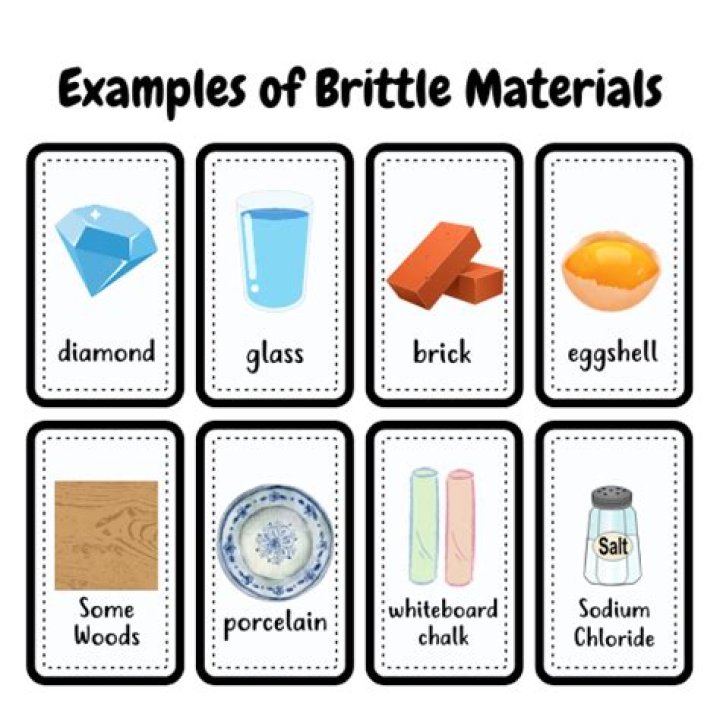

What is brittle example?

Brittle materials include glass, ceramic, graphite, and some alloys with extremely low plasticity, in which cracks can initiate without plastic deformation and can soon evolve into brittle breakage.

Are ceramics brittle?

The two most common chemical bonds for ceramic materials are covalent and ionic. … That is why, generally speaking, metals are ductile and ceramics are brittle. Due to ceramic materials wide range of properties, they are used for a multitude of applications.

Article first time published on

Why ceramic is brittle?

Why are ceramics brittle? Ceramic materials are polycrystalline structures composed of ionic or covalent bonds, so they lack slip systems that can deform the materials. In the process of preparation, it is inevitable to leave micro-defects on the surface of the material, which may form the source of cracks.

Is wood a brittle material?

Wood is an orthotropic material. … In many cases, due to the tension perpendicular to grain dominating the failure, wood is perceived to be a brittle material. However, if designed correctly, wood can fail with a ductile compression failure.

What materials break easily?

A material that has a tendency to break easily or suddenly without any extension first. Good examples are Cast iron, concrete, high carbon steels, ceramics, and some polymers such as urea formaldehyde (UF).

Are metals brittle?

ceramics. Unlike most metals, nearly all ceramics are brittle at room temperature; i.e., when subjected to tension, they fail suddenly, with little or no plastic deformation prior to fracture. Metals, on the other hand, are ductile (that is, they deform and bend when subjected to…

Is Stone malleable or brittle?

Typical brittle materials: glass, concrete, ceramics, stone, gray cast iron.

What is the difference between ductile and brittle materials?

Materials can be named as ductile materials or brittle materials based on their response to an applied stress on them. The main difference between ductile and brittle materials is that ductile materials are able to be drawn out into thin wires whereas brittle materials are hard but liable to break easily.

Are Diamond brittle?

Diamonds are no longer the world’s hardest substance “Whilst its cubic arrangement makes a diamond very hard, it is also somewhat brittle,” says Professor Phillips. … “Today special lasers have also been useful to cut diamonds, especially if they are irregular as they can shatter when being cut.

Are polymers brittle?

As discussed above, at the lowest temperature, polymers are brittle. As the temperature increases they become more tough until they reach Ductile-Brittle Transition.

Is Cast Iron a brittle material?

Cast iron is harder, more brittle, and less malleable than wrought iron. It cannot be bent, stretched, or hammered into shape, since its weak tensile strength means that it will fracture before it bends or distorts. It does, however, feature good compression strength.

Is brass brittle?

Better conductor of heat and electricity than many steels. Corrosion resistant. Brittle, hard, resists fatigue.

Is stainless steel brittle?

Stainless steels can be more ductile than carbon steels because they usually have higher amounts of nickel. However, there are very brittle grades of stainless steel as well, such as the martensitic grades.

Is low carbon steel brittle?

Steel is the most commonly used metal in the world. … This is a low carbon steel with approximately 0.3% carbon content, which ensures it’s neither too brittle nor extremely ductile.

Which of them is brittle?

Your answer is sulphur. Because brittle are those substances which break on beating. It is the opposite of ductile and malleable.

Is ceramic more brittle than glass?

Ceramics are hard, brittle, oxidation resistant, wear-resistant, thermal and electrical insulating, refractory, nonmagnetic, chemically stable and prone to thermal shock. Glass is hard, amorphous, inert, biologically inactive, fragile and transparent.

Is a glass a metal?

Glass, an amorphous solid, has its constituting atoms arranged in a chaotic, random pattern, while in metals there are arranged in an orderly lattice. … These amorphous glassy structures are metal alloys, composed of three or more metals such as magnesium, copper, and yttrium (Mg-Cu-Y).

Is bone brittle or ductile?

It is well accepted that bone is a semi-brittle material with an ability to exhibit plasticity and ductility when the circumstances allow it, whereby either the loading environment (applied strain rates) or the ambient conditions (humidity/dryness) define the degree of its ductility.

Is very hard in brittle?

softhardbrittlea cooked noodle

How is pottery made?

Pottery is made by forming a ceramic (often clay) body into objects of a desired shape and heating them to high temperatures (600–1600 °C) in a bonfire, pit or kiln and induces reactions that lead to permanent changes including increasing the strength and rigidity of the object.

What is malleability and ductility?

Malleability: The property of metals to be beaten into thin sheets is called malleability and the metals are called malleable. example: Iron, Aluminum etc. Ductility: The property of the metals to be drawn into thin wires is called ductility and metals are called ductile.

Why is concrete brittle?

Plain concrete is brittle because it has low tensile strength. … At the appropriate ratio of water and cement, plain concrete structures have high resistance to compression but have low resistance to tension.

What is the most breakable metal?

Tungsten vs Titanium In terms of tensile strength, tungsten is the strongest out of any natural metal (142,000 psi). But in terms of impact strength, tungsten is weak — it’s a brittle metal that’s known to shatter on impact. Titanium, on the other hand, has a tensile strength of 63,000 psi.
