What is the purpose of a trap under the sink

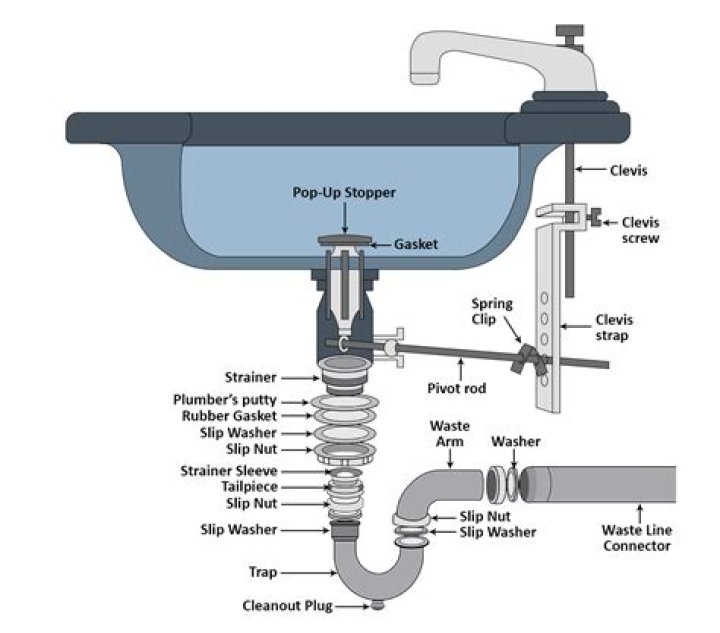

The p-trap under sink plumbing pipe serves the function of capturing a small amount of water inside your drainpipes after the sink is used. This plug prevents sewer gases from coming up the wastewater line and out the sink.

Do I need a trap under kitchen sink?

Beneath a kitchen or bathroom sink drain is a pipe with a sharp bend in it. … You must have a p-trap installed under your sink if you want your home to pass inspection in many places, where the building code requires them. Even if they are not required, you should understand the practical purpose for installing a p-trap.

What is the point of a trap in plumbing?

The piece of plumbing is also called a p-trap because the curve and the long extension that goes into the wall makes the part resemble the letter P. The reason for the plumbing trap is to create a barrier in the drainpipe that prevents sewer gas from rising back up through the drain and into the house.

Is a drain trap necessary?

Plumbing codes require a P-trap be installed anywhere there is an open drain line that expels wastewater into a drain waste-vent system. The P-trap traps solids that can clog the drain or sewer line. The P-trap stops sewer gases from backing into your home through the drain line.

Can a sink trap be under the floor?

1 Answer. All traps must be installed on the same floor as the fixture served with the exception of tubs and showers. If you create a waste pipe for any fixture that needs draining, including a washing machine, and the drain doesn’t have a properly installed P-trap, you’re creating a dangerous situation.

Are running traps legal?

Full “S” traps, bell traps, drum traps, crown-vented traps, and running traps are prohibited. … (5) Trap seal. Each “P” trap shall have a water seal of not less than 2 inches and not more than 4 inches and shall be set true to its seal.

Why is there a dip in sink drain?

The pipe bend known as the trap ensures that there is a water seal separating the sewage system from the inside of your home. Like the rest of the wastewater system, it relies on gravity to keep the water within the bend.

Why are Bell traps prohibited?

The problem with these traps is that they are prone to clogging, and they are less sanitary than the modern P trap. Bell traps were used for floor drains. They also are prone to clogging and are less sanitary. These traps are a reportable deficiency in newer homes.

How deep is a sink trap?

The trap seal depth in the P trap should be a minimum of two inches deep and a maximum of four inches – see the diagram below to know how to measure it. First of all, trim all you can off of the black tailpiece and raise the P trap as high as possible.

How a plumbing trap can lose water?

Evaporation: Overly dry air conditions can cause the water in your plumbing trap to evaporate. … Oscillation: Traps can lose their water from too much wind and the air outside of the house, which could be getting into the pipes and may bounce the water out of the bowl.

Article first time published on

Should the vent be above or below p-trap?

The simple answer is if your trap from the fixture cannot see the vent then it is installed wrong. We must always keep the vent connection above the trap weir to prevent siphoning and keep proper pressures on both side of the trap.

How far does the vent have to be from the trap?

As for the maximum distance between your trap and your vents, that would depend on the actual diameter of the plumbing pipe. If you have 1 ¼-inch pipe, the horizontal distance of the vent should not be more than 30 inches.

What is the pipe under your sink called?

P-Trap: A P-trap is a two-part pipe under your sink that allows waste and water to pass through.

Are house traps required?

House traps are required here according to State & Local Code, they are generally inside the house and used to access the main line leaving the house for snaking purposes. There should be a fresh air vent connected upstream of the trap.

Does a condensate drain need a trap?

For the most part evaporator condensate traps are required by the manufacturer help to meet the energy efficiency standards as without it air will blow through that hole. If there is a trap tell them tho clean it all the time because it’ll clog and when it does they might call you.

What is an interceptor in plumbing?

According to Universal Plumbing Code, “a grease trap/grease interceptor is a plumbing device that is installed in a sanitary drainage system to ‘trap’ or ‘intercept’ non-petroleum FOG from a wastewater discharge.” Wastewater flows from the sink of drain into a tank.

Can a sink trap be too deep?

When the trap is too deep, liquid may flow through it too fast, which can lead to siphoning of the trap seal and sludge buildup. … If installing a sink with a deeper bowl results in a trap seal deeper than 4 inches, you’ll have to open up the wall and relocate the trap arm connection at the drain (see photo, above).

How long should a sink trap be?

2 Answers. The trap is usually attached to the end of the tailpiece, and tailpieces are typically between 6 – 8 inches long (though I’ve seen up to 12). So the “standard” height of a trap would be, 6 – 8″ below the fixture.

Are drum traps bad?

The main problem with drum traps is that they’re not self-scouring. A drum trap holds so much water that the water and solids coming in to the trap will not be pulled directly through, which can allow for the accumulation of solids in the bottom of the trap. This makes drum traps more prone to getting clogged.

What is a crown vented trap?

A “Crown Vent” is a vent that is located within 2 pipe diameters of the trap it is serving. The issue is if the vent is that close it is more likely to be subjected to fouling of hair, soap oils, grease, and other debris.

What is a basin bottle trap?

A bottle trap is an essential part of your basin plumbing. It is attached to the waste plug under the sink and helpsto keep your bathroom hygienic and safe from bacteria. Bottle traps block potentially harmful gases from rising from the drainage systems below and entering your bathroom via your waste.

How do I keep my sink traps from drying out?

The solution to this problem is simple—run water in all sinks periodically or pour water down floor drains from time to time (once a month is recommended). This will keep the traps wet, preventing odors from escaping.

Why is my P-trap drying out?

The water in the P-trap can evaporate due to excessively dry air conditions. Oscillation occurs when too much outside air enters the pipe, displacing the water out of the bowl. When something is stuck inside the pipe and absorbs water from the toilet, a P-trap can empty due to capillary action.

What is a dried out P-trap?

A dried-out or empty P-trap is one of the most common causes of sewer gas odors. A P-trap with a proper vent is used to prevent sewer gasses from leaking into the home. Proper ventilation is important, otherwise, draining will cause the push and pull of air on the P-trap, allowing sewer gasses to leak.

How do I know if my sink is vented?

You can check by running a large amount of water down the drain. If it’s not vented correctly, it will gurgle, bubble and pop. A new drain should run freely.

Does every P trap need a vent?

P-traps need vents 1 – They give the sewer gases a place to vent, so they do not build pressure inside your sewer lines. 2 – They prevent siphoning of the water out of the trap. A great example of siphoning is a toilet.

Can a bell trap be used in a drainage system?

Bell Trap Drain Installed over or inside an ABS DWV Hub to provide water drainage at floor level. Supplied with circular ABS grate with drainage holes. The inside of the trap has a water seal that prevents sewer gas from entering the building.

What is a plumbing trap arm?

The trap arm is the portion of a fixture drain between a trap weir and its protecting vent. The trap weir is the point at the bottom of the trap arm pipe where it connects to the trap. … A vent is supposed to maintain air in the cross-section of the pipe to prevent a siphon from forming.

How do cheater vents work?

A cheater vent (or air admittance valve) is a vent that comes off the fixture — for example, a sink in a new powder room — and is buried in the wall. … AAVs are designed to not allow sewer gas out into your wall cavity. It’s a mechanical vent that allows necessary air into the system to help drains operate efficiently.

Where should a plumbing vent be located?

Vent pipes must be installed so they stay dry. This means that they should emerge from the top of the drainpipe, either straight vertically or at no less than a 45-degree angle from horizontal, so that water cannot back up into them.

Why is my P trap not draining?

Clean the P-trap. If the water is still not draining correctly, there might be a blockage in the P-trap, aka the elbow-shaped pipe under your sink. Food, grease and other debris may be stuck in the pipe, causing your sink to drain slowly or not at all because the water hits a snag on its way down.
