What is the symbol for a 3 way switch

the 3-way switch symbol is used to describe a pair of light switches which are found in areas such as a hallway or stairway where a 3-way switch is located at opposite ends.

What is the symbols of switch?

NameDescriptionPushbutton Switch (N.C)Momentary switch – normally closedDIP SwitchDIP switch is used for onboard configurationSPST RelayRelay open / close connection by an electromagnetSPDT Relay

How do you identify a 3-way switch and line wire?

Remember that one side of the common on the three way is the line side and the other common is the load side or switch leg. The two wires that connect between the 3-ways switches are carriers. If you have a 4-way it simply flips the carriers, two carriers in two carriers out.

How can you tell if a switch is 4 way or 3-way?

A three-way switch has three terminals; a four-way has four. These control a light from two or three switch locations, such as at the top and bottom of a stairwell, at either end of a hallway, or in a large room with multiple entrances.

What is the symbol for a wall switch?

Draw a letter “S” on its side where you want the switch. Draw a horizontal line through the “S.” The symbol should look like a dollar sign rotated 90 degrees to the right. This is the basic mark indicating a light switch.

What are the 4 types of switches?

• SPST (Single Pole Single throw)
• SPDT (single pole double throw)
• DPST (double pole, single throw)
• DPDT (double pole double throw)

What is the symbol for a two way switch?

SwitchesComponentFunction of Component2-way Switch (SPDT)SPDT = Single Pole, Double Throw. A 2-way changeover switch directs the flow of current to one of two routes according to its position. Some SPDT switches have a central off position and are described as ‘on-off-on’.

What's the difference between a two way switch in a 3 way switch?

In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.

Can I use a 4 way instead of a 3 way switch?

A four way switch can be used instead of a 3 way, but the reverse isn’t true. Note that if you want only one switch to control a light (or other circuit) you can use a standard switch. (sometimes called a 1 way, but usually not) You can use a 3 or 4 way switch, too.

Which wire goes to common on 3-way switch?

Black wire: This is a hot wire that carries electricity from the power source to the first switch in a typical 3-way setup. It’s also called the “common wire” or the “line wire.” Unless the breaker is off, this black wire is always hot.

Article first time published on

Where is the neutral on a 3-way switch?

The other wires in a circuit with 3-way switches are the neutral (usually white) and ground (usually bare copper or green). The neutral wire bypasses both 3-way switches but connects to the light fixture. The ground connects to the ground terminal on each switch and to the light fixture.

Will a 3-way switch work if wired wrong?

Finding the common wire: When wiring a 3-way light switch, you’ll need to find the common wire and connect it to the common screw. If you don’t correctly connect this wire, then your lights won’t work from more than one switch.

What does S3 mean in electrical?

If a particular lighting fixture is switched from two locations, the symbols will be S3 to indicate that three items (two switches and one lighting fixture) are connected electrically.

What is duplex receptacle?

A duplex outlet has two receptacles to use for power. A duplex receptacle outlet is very similar to a single outlet where it can be TR, WR, or both! … A duplex outlet can also handle different voltages (V), whether you need 125V for your washing machine or 250V for your electric dryer.

What is L3 in a light switch?

Again, some makes of switch may have alternative markings such as L1 L2 and L3. This type of switch is used where two switches control one light, such as at the top and bottom of a stairway.

Is common L1 or L2?

Wiring a One Way Switch A one way light switch has two terminals which is a common marked as COM or C. The common is for the live wire that supplies the input voltage to the switch. The other terminal is marked as L1 and is the output to the light fixture.

Is L2 live or neutral?

L1 is live and L2 is neutral.

What are the 3 types of switches?

The three types of mechanical switches are linear, tactile, and clicky.

Can you use a 3-way switch as a single pole?

To convert a 3-way switch to single pole, one of the traveler wires is removed from the switch. In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. … 3-way switches can be converted to single pole in several configurations.

Is a double pole switch the same as a 4 way switch?

Double pole light switches, also known as a four-way switch, are two single pole switches put together. Two separate circuits are controlled by one switch. This is typically used to control a circuit from multiple locations in a series of three switches on one circuit.

Why is it called a three-way switch?

They are called 3 way switches. The reason is that there are 3 different states for the circuit. Each switch has 2 possible circuits for the hot wire to pass through. If both switches agree on one circuit for the hot wire, then they pass the current through and the light turns on.

How do you convert a three-way switch to a four way?

All you need to do is find the 4 wire that currently runs from one of your 3 way switches to the other. You will need to cut/break this and add the 4 way switch in between. The 4 way switch will have 2 terminals marked IN and 2 marked OUT.

How can you tell if a switch is 1 way or 2 way?

1 Way Switches: If a light switch is ‘1 way’ this means it is just an on/off switch. This is the simplest type of switch that you can get. The single switch controls a single light (or lighting circuit). 2 Way Switches: A ‘2 way’ switch means there is another switch controlling the same light.

What is the black screw on a three-way switch?

The black screw has the black (common) wire that runs up to the light through the yellow cable. The two grounds are connected together and then to the green ground screw on the switch. To summarize, the black screw gets either the wire from the electrical panel or the wire going to the light.

When should you use a 3-way switch?

Three-way switches are commonly used to control a light fixture from two different locations. For example, a long hallway or stairway might use a pair of three-way switches at each end so that lights can be turned on when approaching one end of the hall or stairway, then shut off from the other end.

Where does the red wire go on a 3 way switch?

The black hot wire connects to the far right switch’s common terminal. Red and blue wires link traveler terminals of both switches. The red wire, which is connected to the first switch’s common terminal, leads back to the fixture.

Is red or black common wire?

Red, Black, and White are the colors of switch wiring for three-ways. Red and Black are connected to the switches if the White is used for neutral. The White is often referred to as Common, but the colored wires are also used as hot wires.

Is common wire hot or neutral?

The “common” is the “neutral” or “ground” wire, depending on the type of circuit. In normal US residential wiring, you’ll have a black “hot” wire, a white “neutral” or “common” wire, and a green or bare “ground” wire.

Does the hot wire go on the top or bottom of a switch?

Is it on the top or bottom of the switch – Quora. If you are speaking of a single pole switch, doesn’t matter. On a 2 pole switch, box mounted, technically it doesn’t matter, but good practices are line at the top, load at the bottom. If a disconnect switch, always line at the top, load at the bottom.

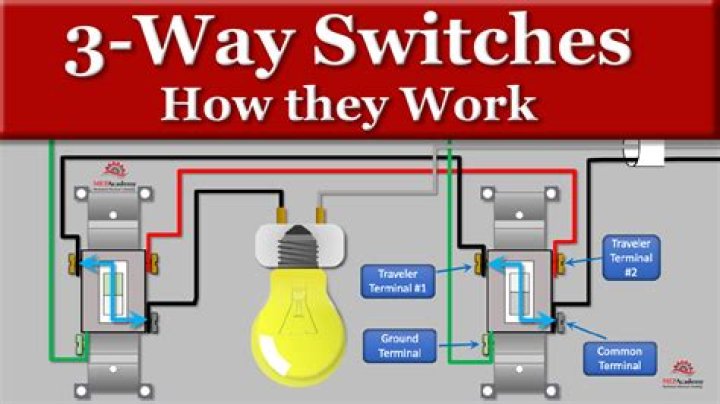

What is inside a 3-way switch?

3-way switches have three terminals, one common (usually black color) and one pair of travelers (usually brass color). … Usually, the common wire is wrapped around the traveler wires for identification in the 3-way light switch electrical boxes. Ground connection is not shown in these diagrams.

Does a three way switch need a neutral?

Well you’re in the right place for a 3-way. The most common wiring requirements of any hardwired automated 3-way light switch is a neutral wire and a traveler. Yes, there are a few… (read very, very, very few) switches that don’t require a neutral, but those will limit you to incandescent only.
