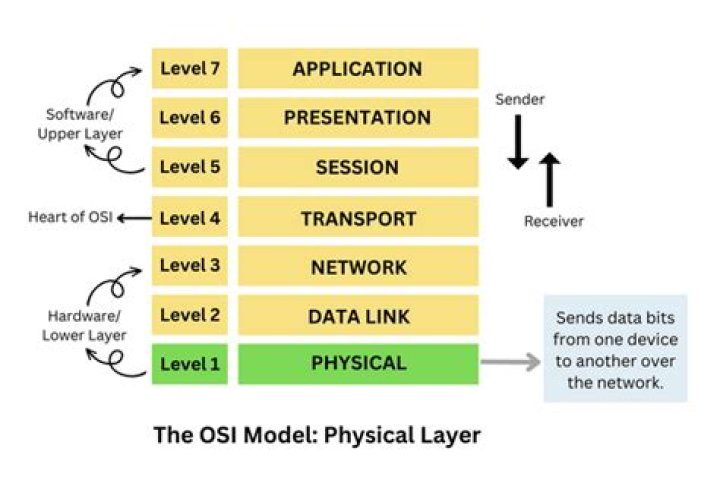

What is used in the physical layer of OSI model

Basic hardware components used in the OSI physical layer include network interface cards (NICs), connectors and interfaces, and cables that facilitate the transmission of data from source to destination.

What are the devices used in physical layer?

Hubs: Hubs are devices commonly used to connect segments of a LAN. …
Cables: In Wired network architecture (e.g Ethernet), cables are used to interconnect the devices. …
Modem: Modem stands for MOdulator/DEModulator. …
Repeaters:

Why hub is used in physical layer?

Why hub is a physical layer device? Hub is used in a physical layer because it is not an intelligent device, it does not maintain any kind of table like a switch. It works like a cable (or connector), it’s just simple blindly forwarding data to all the connected devices like a cable.

What protocol is used in each layer of OSI model?

OSI Ref. Layer No.OSI Layer EquivalentTCP/IP Protocol Examples5,6,7Application, session, presentationNFS, NIS+, DNS, telnet , ftp , rlogin , rsh , rcp , RIP, RDISC, SNMP, and others4TransportTCP, UDP3NetworkIP, ARP, ICMP2Data linkPPP, IEEE 802.2

How many layers are used in the OSI model?

However, the OSI 7-layer model is still widely used, as it helps visualize and communicate how networks operate, and helps isolate and troubleshoot networking problems. OSI was introduced in 1983 by representatives of the major computer and telecom companies, and was adopted by ISO as an international standard in 1984.

Where is hub used?

Hub is commonly used to connect segments of a LAN (Local Area Network). A hub contains multiple ports. When a packet arrives at one port, it is copied to the other ports so that all segments of the LAN can see all packets.

What is the most important layer in the OSI model?

The top layer of an OSI model (layer seven) is the application layer that delivers network services or protocols that comply with an end-user’s data to the end-user. The majority of end-users interact directly with applications that work at Layer 7. As such, it is the most widely recognized OSI layer by end-users.

Where is a hub specified in the OSI model?

Answer: A hub is specified at physical layer in the OSI model. Answer: Hubs regenerate electrical signals, which are specified at the Physical layer.

Is hub a Unicast device?

Answer: HUB is a Broadcast device and Switch is a Unicast device.

What are the two layers of the OSI model?

Physical Layer (Layer 1) : The lowest layer of the OSI reference model is the physical layer. …
Data Link Layer (DLL) (Layer 2) : …
Network Layer (Layer 3) : …
Transport Layer (Layer 4) : …
Session Layer (Layer 5) : …
Presentation Layer (Layer 6) : …
Application Layer (Layer 7) :

Article first time published on

In which layer are bridges used?

In the OSI model, bridging is performed in the data link layer (layer 2). If one or more segments of the bridged network are wireless, the device is known as a wireless bridge.

What is the physical device located at layer 2 of the OSI model?

The OSI framework includes seven total layers. The data link layer (Layer 2) of the OSI moves data across a linked physical network. A layer 2 device on a computing network will transmit data to a destination according to Media Access Control (MAC) addresses, also known as Ethernet addresses.

What is a layer three device?

The layer 3 in the OSI model is the network layer. The device that comes under this layer is the router. The functions include address handling,logical address and names to physical address translation ,routing and traffic management. … Data are sending through the network as a packet.

What tool is used to check the network hub?

1: Ping Tester Ping Tester (Figure A) uses ICMP pings to detect devices on your network. In addition to performing ping sweeps, it performs internet connectivity tests by pinging well known websites, such as Google and Yahoo.

What is hub device?

An Ethernet hub, active hub, network hub, repeater hub, multiport repeater, or simply hub is a network hardware device for connecting multiple Ethernet devices together and making them act as a single network segment. … A hub works at the physical layer (layer 1) of the OSI model.

Which device is used to connect a LAN to a WAN?

Router. A router is a network device that connects together two or more networks. A common use of a router is to join a home or business network (LAN) to the Internet (WAN).

Is defined by physical layer?

Layer 1 of The OSI Model: Physical Layer defines electrical and physical specifications for devices. The physical layer defines the relationship between a device and a transmission medium, such as a copper or optical cable.

What does LAN stand for?

A local area network (LAN) consists of a series of computers linked together to form a network in a circumscribed location. The computers in a LAN connect to each other via TCP/IP ethernet or Wi-Fi.

What is an Ethernet hub used for?

An Ethernet Hub connects broadcasts signals to computers within a Local Area Network (LAN) through a process called frame flooding, also known as unicast.

Which Layer 4 protocol is used for a Telnet connection?

Telnet uses TCP at layer 4.

Which address is used to identify a process on a host by the Transport layer?

8. Which address is used to identify a process on a host by the transport layer? Explanation: A port number is a way to identify a specific process to which an Internet or other network message is to be forwarded when it arrives at a server.

What is the main reason the OSI model was created?

The primary reason the OSI model was created was so that different networks could inter-operate.

Which two layers of OSI model works similarly?

The Internet Protocol layer is comparable to layer 3 in the OSI model. The host-to-host layer is equivalent to OSI layer 4. These are the TCP and UDP (user datagram protocol) functions. Finally, the application layer is similar to OSI layers 5, 6, and 7 combined.

Which two OSI model layers are considered to be included in the top layer?

The top three OSI model layers are included in the top layer of the TCP/IP protocol stack. These top three OSI model layers include the application, presentation, and session layers.

Which three layers of the OSI model make up the application layer of the TCP IP model choose three?

The three upper layers of the OSI model, the session, presentation, and application layers, provide application services similar to those provided by the TCP/IP model application layer.

What layer is the router in OSI model?

Layer 3, the network layer, is most commonly known as the layer where routing takes place. A router’s main job is to get packets from one network to another.

What is OSI model and its layers?

The OSI Model Defined In the OSI reference model, the communications between a computing system are split into seven different abstraction layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

Which layers of the OSI model are host to host layers?

Which layers of the OSI reference model are host-to-host layers? Explanation: In OSI Model, Physical; Datalink and Network layer are hop-to-hop layers whereas Transport, Session, Presentation and Application layer are end-to-end or host-to-host layers.

Is a router a Layer 2 device?

Think of them as functions. Routing is a layer 3 function. Packet switching is a layer 2 function. If a router can packet switch as well as route, it is a layer 2 and layer 3 device.

What is Layer 4 of the OSI model?

Layer 4 of the OSI model, also known as the transport layer, manages network traffic between hosts and end systems to ensure complete data transfers.

What is layer 3 in OSI model?

Layer 3 of the OSI Model: Network Layer provides the functional and procedural means of transferring variable length data sequences from a source host on one network to a destination host on a different network, while maintaining the quality of service requested by the transport layer (in contrast to the data link …
