What is witness disk clustering

Disk Witness – A small clustered disk which is in the Cluster Available Storage group. This disk is highly-available and can failover between nodes. It contains a copy of the cluster database. A Disk Witness isn’t supported with Storage Spaces Direct.

What is witness cluster?

A Windows File Share Witness is a file share that is available to all nodes in a high availability (HA) cluster. The job of the Witness is to provide an additional quorum vote when necessary, to ensure that a cluster continues to run in the event of a site outage.

What is a cluster file share witness?

A file share witness is an SMB share that Failover Cluster uses as a vote in the cluster quorum. … This could be a Storage Spaces Direct cluster, SQL Server Always On Availability Groups (AG), Exchange Database Availability Group (DAG), etc.

What is difference between quorum and witness disk?

The cluster quorum is the majority of voting nodes in the active cluster membership plus a witness vote. A quorum witness can be a designated disk witness or a designated file share witness. No nodes have votes. Only a disk witness has a vote.

What is a clustered disk?

A cluster, in the context of a hard disk, is a group of sectors within a disk and is the grouping by which disk files are organized. A cluster is larger than a sector, and most files fill many clusters of disk space. The hard drive is able to find all the clusters on a disk because each cluster possesses its own ID.

What is a witness server?

A witness server is a server outside a DAG that’s used to achieve and maintain quorum when the DAG has an even number of members. DAGs with an odd number of members don’t use a witness server. All DAGs with an even number of members must use a witness server.

How do I get rid of disk witness in quorum?

1. Open Failover Cluster Manager + connect to cluster.
2. Configure cluster quorum settings.
3. Select Node Majority.
4. Got to “Storage”, take Witness Disk offline.
5. Delete Disk.
6. Remove disk from o/s.

What happens to a running cluster if the quorum disk fails in Windows server 2016 cluster?

The quorum configuration in a failover cluster determines the number of failures that the cluster can sustain while still remaining online. If an additional failure occurs beyond this threshold, the cluster will stop running.

What happens if quorum disk fails?

If the quorum disk fails, the cluster service on ALL nodes in the cluster will stop since none of the nodes will be able to successfully arbitrate for the quorum resource.

What happens to a running cluster of the quorum disk fails in Windows server 2012 cluster?

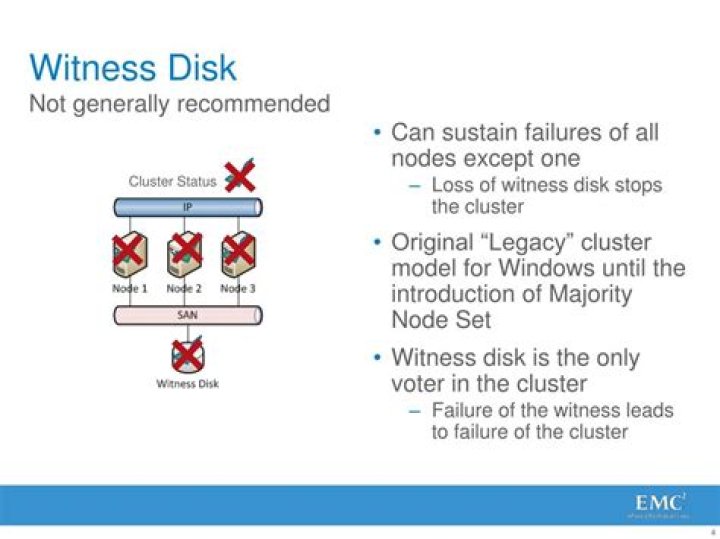

Changes in 2012 Every item in the cluster is considered to have a vote. If the quorum mode is witness-only, then there is only one vote, and if it is lost, then the entire cluster and all nodes in it will stop.

Article first time published on

What is disk witness quorum?

Disk Witness – A small clustered disk which is in the Cluster Available Storage group. This disk is highly-available and can failover between nodes. It contains a copy of the cluster database. A Disk Witness isn’t supported with Storage Spaces Direct.

How does a witness server work?

The witness is an optional instance of SQL Server that enables the mirror server in a high-safety mode session to recognize whether to initiate an automatic failover. Unlike the two partners, the witness does not serve the database. Supporting automatic failover is the only role of the witness.

How do I set up cloud witness?

On the Select Quorum Witness page, select Configure a cloud witness (see figure 8). On the Configure Cloud Witness page, enter the following information: (Required parameter) Azure Storage Account Name. (Required parameter) Access Key corresponding to the Storage Account.

What is disk cluster size?

Cluster size represents the smallest amount of disk space that can be used to hold a file. … On the typical hard disk partition, the average amount of space that is lost in this manner can be calculated by using the equation (cluster size)/2 * (number of files).

How do I add a disk to cluster?

In Failover Cluster Manager, in the console tree, expand the name of the cluster, and then expand Storage. Right-click Disks, and then select Add Disk. A list appears showing the disks that can be added for use in a failover cluster. Select the disk or disks you want to add, and then select OK.

How do I clear a cluster disk reservation?

The Clear-ClusterDiskReservation cmdlet clears the persistent reservation on a disk in a failover cluster. This cmdlet prompts for confirmation unless you specify the Force parameter. Note: This cmdlet cannot be run remotely without Credential Security Service Provider (CredSSP) authentication on the server computer.

How do I get rid of Cloud witness?

To remove the Cloud Witness, choose again to configure the cluster quorum and this time select Advanced Quorum Configuration. Then select Do not configure a quorum witness. Voilà, the Cloud Witness is gone. No you can add the File Share Witness.

How does cluster quorum work?

Each node in the cluster has a vote. The cluster keeps working while more than half of the voters are online. This is the quorum (or the majority of votes). When there are too many of failures and not enough online voters to constitute a quorum, the cluster stop working.

How do I move a cluster quorum drive?

In the actions pane go to More Options and select Configure Cluster Quorum Settings. Follow through the wizard and the only thing you need to change is on the Configure Storage Witness page. On this page, simply select the check next to the new storage disk.

What is a witness node?

Witness node is a separate instance that takes part in quorum voting but requires minimum resources for its deployment. Introducing a Witness node into the StarWind environment ensures that a 2-node cluster will continue running in case any of the nodes fails.

What is vSAN witness host?

The vSAN witness host is basically an ESXi host that does not store VM data but only VM metadata, or in other terms, it stores the witness components for each VM object from a Stretched cluster or a 2-node cluster configuration. Each vSAN witness host can be deployed as a witness appliance.

How big does a quorum disk need to be?

After extending or deleting files, change the quorum model back to use the original setting with the disk. Although the minimum size can be 512MB, it is best to use a 1GB disk.

Why does node have 3 clusters?

Having a minimum of three nodes can ensure that a cluster always has a quorum of nodes to maintain a healthy active cluster. With two nodes, a quorum doesn’t exist. Without it, it is impossible to reliably determine a course of action that both maximizes availability and prevents data corruption.

How do I fix a quorum disk?

1. Shut down the primary node.
2. Replace the cluster quorum shared disk with new disks.
3. Start the primary node. …
4. To restore the original disk signature for the shared disk, run one of the following utilities: …
5. Recreate and reformat the partitions on the non-quorum shared disk.

Which of the following does quorum in failover clustering help to prevent?

A quorum keeps running the failover cluster based on the majority of votes in the group. It uses a voting mechanism to check for the node’s majority. It also helps to avoid a split-brain scenario where none of the nodes owns the resources. We have the following quorum configurations in the Windows server.

Can we configure always on without cluster?

Step 1: We need to enable SQL Always On feature on both standalone SQL instances. To do so, RDP to each server and Open SQL Server Configuration Manager. In this go to SQL Server instance properties and Enable Always On Availability Groups. … We can enable it in SQL Server 2017 or above without failover cluster.

What are the different types of cluster quorum?

• Node Majority. This is the easiest quorum type to understand and is recommended for clusters with an odd number of nodes (3-nodes, 5-nodes, etc.). …
• Node & Disk Majority. …
• Node & File Share Majority. …
• Legacy: Disk Only.

What is the difference between always on and clustering in SQL Server?

An SQL AlwaysOn failover cluster instance provides high availability and disaster recovery at the SQL Server level. AlwaysOn Availability Groups (AAG) provide high availability and disaster recovery at SQL database level. … An AlwaysOn node manages backups of availability databases.

What is the purpose of a failover cluster?

A failover cluster is a group of independent computers that work together to increase the availability and scalability of clustered roles (formerly called clustered applications and services).

How do I create a Windows cluster?

1. Click Start > Windows Administrative tools > Failover Cluster Manager to launch the Failover Cluster Manager.
2. Click Create Cluster. …
3. Click Next. …
4. Enter the server names that you want to add to the cluster. …
5. Click Add.
6. Click Next. …
7. Select Yes to allow verification of the cluster services.

What is the purpose of a quorum disk?

A quorum disk is an MDisk or a managed drive that contains a reserved area that is used exclusively for system management. A system uses a quorum disk for two purposes: To break a tie when a SAN fault occurs, when exactly half of the nodes that were previously a member of the system are present.
