What square footage of ventilation opening is required for a 1500 square foot crawl space

A house has 1,500 square feet of crawl space area. The amount of ventilation required is 1,500/150 = 10 square feet.

How much ventilation is required in a crawl space?

Ventilation. According to the IRC, a crawl space should have one square foot of screened vent for every 150 square feet of space. To further reduce moisture, homeowners can cover bare ground with an approved vapor-barrier material.

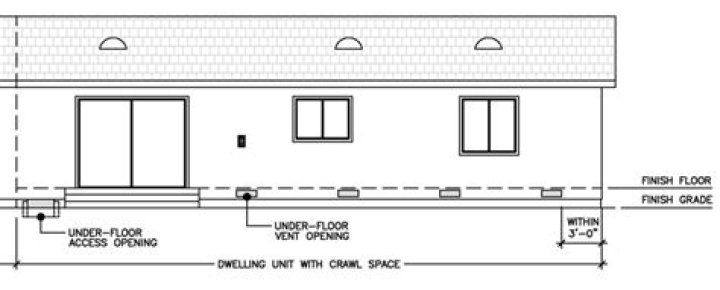

What is the maximum distance between a ventilation opening in an under floor space and each corner of the building?

One ventilation opening shall be within 3 feet (915 mm) of each corner of the building.

What is the minimum size of the required access opening to a crawl space?

Crawl Space Doors: Required! Access openings through the floor shall be a minimum of 18 inches by 24 inches. Openings through a perimeter wall shall be not less than 16 inches by 24 inches.

What is the minimum amount of venting for a crawl space should be one square foot of net free venting for each?

Most building codes require 1 square foot of open ventilation area for every 150 square feet of crawlspace. Generally, Automatic Foundation Vents have 50 inches of net free area per vent. Therefore, install one vent for every 50 square feet of crawlspace.

What are the minimum dimensions for an attic access?

What is the Minimum Size of an Attic Access? The code requires the rough framed opening of the attic access to be not less than 22 inches by 30 inches. When located in a wall, the width must not be less than 22 inches and the height not less than 30 inches.

What size are crawl space vents?

These vents are manufactured in three various dimensions of 4×16”, 6×16” or 8×16” in either unfinished galvanized, pre-painted galvanized, or aluminum metals. This particular vent promotes natural air movement in enclosed spaces such as in foundation walls or crawl spaces.

What is code for crawl space insulation?

Unconditioned Crawlspace: Insulate floor joists with minimum R-30 insulation (or insulation sufficient to fill joist cavity, R-19 minimum), may ventilate crawlspace or use Class I vapor retarder (such as 6 mil plastic) on ground, must heat tape water lines to protect from freezing.

Is a crawl space required to have insulation?

International residential building code requires a crawl space to be insulated. If the crawl space is open or vented, it needs to be insulated. If the crawl space is encapsulated, it needs to be insulated. We take the crawl space insulation a step further.

What is the required ventilation area in square feet for a crawlspace under a 2400 square foot dwelling?

1) Section R408. 1 specifies that the crawl space (under-floor space), which is the area between the bottom of the floor joists and the earth under the building (not including the basement), must have ventilation openings through the foundation walls or exterior walls.

Article first time published on

Where should crawl space vents be located?

The first paragraph of IRC section 408 provides the standard requirement for ventilating crawl spaces: The under-floor space between the bottom of the floor joists and the earth under any building (except space occupied by a basement) shall have ventilation openings through foundation walls or exterior walls.

How do you calculate the square footage of a crawl space?

1. Add the length and width of the space.
2. Multiply that number by two.
3. Then multiply the results by the height. This will give you the square footage needed for the wall.

Should you have vents in a crawl space?

Building codes generally require working vents in the crawlspace to allow outside air to circulate under the floor in the summer to prevent moisture buildup that, among mildew and mold, encourages wood rot.

What are crawl space vents called?

Foundation vents allow air to enter and exit the crawlspace. This airflow helps to remove heat and moisture. The cross flow of air helps protect against foundation problems. Foundation vents allow air to enter and exit the crawlspace.

What is the average size of an attic?

The average size of an attic is typically between 1600 sq. ft and 1800 sq. ft, but that can vary depending on the building’s design.

How tall should an attic be?

Account for Codes and Safety Follow the “rule of 7s”: Enforcement varies, but codes typically say that at least half of a finished attic must be at least 7 feet high, and that this area must be a minimum of 7 feet wide and 70 square feet.

Should you put a vapor barrier in a crawl space?

Yes. You need a vapor barrier in your crawl space. What’s more, a moisture barrier is the minimum amount of protection that you should have in your crawl space. A vapor barrier helps you to avoid expensive repairs.

Do you close vents in crawl space in winter?

These vents allow outside air to circulate under the floor in summer to prevent the moisture buildup that encourages mildew and rot. In winter, when the air is drier, the vents are closed to reduce the chance that the pipes in the crawl space might freeze.

Should you leave crawl space vents open?

Your crawl space vents should always be closed and sealed off from the outside elements. … First and foremost, open vents allow moisture to enter your crawl space. This creates the perfect environment for mold growth and mildew.

Should crawl space vents be closed in summer?

The answer to, “should crawl space vents be opened or closed?”, depends on the season. During the summer, opening air vents can bring in heat to prevent moisture buildup that encourages rot and mildew. … Most people prefer to close vents in the winter so that the pipes in the crawl space don’t freeze.

Which is better vented or unvented crawl space?

Unvented. The principal perceived advantage of a vented crawl space over an unvented one is that venting may limit radon and moisture-related decay hazards by diluting the crawl space air. Additionally, providing a vented crawl space may make sense in flood-prone areas such as coastal zones subject to hurricanes.
