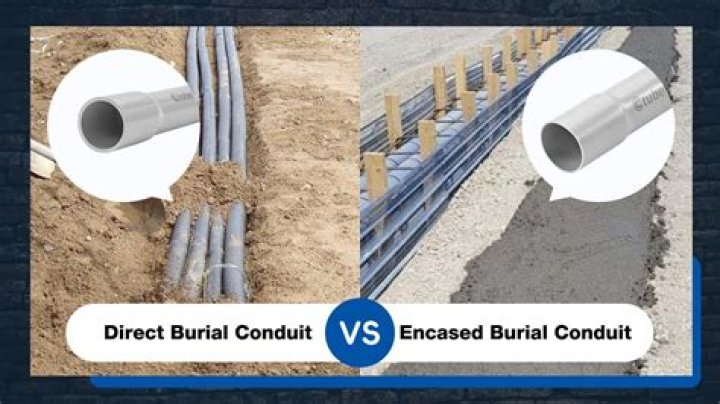

What type of conduit can be buried

At 18 inches, you can use THWN-2 conductors inside a continuous length of PVC conduit, which protects the wire all the way through the trench to the house. At 24 inches you can bury underground feeder cable, using PVC conduit to 18 inches below ground only where the wire comes up.

What type conduit would be used underground?

PVC Conduit: one of the cheapest and lightest conduit materials. It is mainly used for over-ground applications as it can withstand different weather conditions and resist moisture and corrosive substances. PVC conduits come with their very own set of elbows, connectors, couplings, and fittings.

Can PVC electrical conduit be used underground?

PVC conduit provides protection for electrical work that is buried underground. Out of the many conduit forms available, PVC conduit is considered best for outdoor applications. Among all conduit types, PVC is lightweight and versatile.

Can electrical conduit be buried?

In general, bury metal conduits at least 6 inches below the soil surface. You may also run them at a depth of 4 inches under a 4-inch concrete slab. Under your driveway, the conduits must be below a depth of 18 inches, and under a public road or alleyway, they must be buried below 24 inches.

Can EMT conduit be used underground?

Code Change Summary: Electrical metallic tubing (EMT) is now permitted to be used underground where conductors are subject to physical damage.

Can aluminum conduit be buried?

The NEC allows the use of rigid aluminum conduit in concrete or direct buried “where provided with approved supplementary corrosion protection.” This means that additional corrosion protection meeting the requirements of the AHJ is required (see “Supplementary Corrosion Protection” below).

How deep must PVC conduit be buried?

Coated electrical cable in PVC conduit Currently, the National Electrical Code (NEC) tells us that the required burial depth of electrical cables in various rigid non-metallic conduits, such as PVC, is 18 inches.

What is the difference between white PVC and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

Can galvanized conduit be buried?

Galvanized steel RMC, elbows, couplings, and fittings “shall be permitted to be installed in concrete, in direct contact with the earth, or in areas subject to severe corrosive influences where protected by corrosion protection and judged suitable for the condition.”

Can you bury Schedule 40 PVC conduit?

Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight. … It is not designed for use above ground or in walls, floors or ceilings.

Article first time published on

Does underground electrical wire need to be in conduit?

There’s one restriction: It needs a conduit where the cable is exposed on the outside of the house and to 18 inches below the ground. Burying the cable 24 inches requires more digging, so this method only makes sense if you have easy-to-dig soil or are renting a trench digger.

What kind of electrical wire can be buried underground without conduit?

Direct burial wire is a type of outdoor electrical wire that is buried underground, usually without conduit. Naturally, these cables have to possess distinct characteristics to withstand the environment of the ground.

Can you bury an outdoor extension cord?

In general, you can’t bury the outside extension cord. Using a standard extension cord is designed initially only for temporary use. Instead, you can use a more suitable cable type for any permanent outdoor purposes, such as a direct burial UF cable.

Is it permissible to bury rigid metal conduit?

If the wiring method is rigid metal conduit (RMC) then that column only requires a 6 inch burial depth (even without meeting column 4), unless we are in a location such as a one family driveway then the minimum burial depth is 12 inches If the circuit is in RMC under the same driveway without meeting all the conditions …

Can white Schedule 40 PVC be used for electrical conduit?

White Schedule 40 PVC pipe is specifically intended for use with plumbing DWV (drain, waste and vent) systems. By code, Schedule 40 PVC is approved for plumbing use only. Electrical conduits require Schedule 80, gray PVC pipe. By code, this is the only PVC material approved for electrical conduits.

What is GREY PVC called?

There are two common types of PVC pipe – schedule 40 PVC and schedule 80 PVC. Schedule 40 PVC is usually white in color and schedule 80 is usually a dark gray (they can also be found in other colors). Their most important difference, though, is in their design. Schedule 80 pipe is designed with a thicker wall.

Can I glue GREY PVC to white PVC?

White (water) PVC is pressure rated and gray (Electrical) PVC is not. White PVC is softer than Gray so it bends easier. Gray uses the single step clear PVC cement won’t leave blue or read stains as many times it’s in the open and can be seen. (Note you can use the clear cement on white for non pressure uses.)

How long will schedule 40 PVC pipe last underground?

Barring any crushing or displacement from external forces, and assuming the temperature being discharged down it is below 120 degrees, schedule 40 PVC should give good service for many years like 3o or more, schedule 30/34 is nearly as good but a bit more fragile. I have seen both types last in excess of 20 years.

What is difference between schedule 40 and 80 PVC?

Both schedule 40 and 80 PVC are used widely around the world. Each one has its benefits in different applications. Schedule 40 pipe has thinner walls, so it is best for applications involving relatively low water pressure. Schedule 80 pipe has thicker walls and is able to withstand higher PSI (pounds per square inch).

Can Thhn WIRE be direct buried?

THHN wire can be used in a conduit but is not rated for direct burial alone. Our 8 awg THHN is also THWN-2 dual rated which means this conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90° C or not to exceed 75°C in oil or coolants.

Does outdoor wire have to be in conduit?

Generally speaking, yes, outdoor wiring needs to be in conduit to protect it from physical damage. Type UF cable needs conduit when exposed, no need for conduit on the buried sections.

Can Romex wire be buried?

Romex is a brand name for non-metallic paper bonded cable (NM-B, as printed on the jacket) with a PVC jacket. This is why type UF is suitable for burying and wet locations (or dry) where NM-B cable is suitable only for very specific dry locations.

How far can I run 12 2 wire?

You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.

Can Carflex be used outside?

What are the applications for Carflex? Indoor/outdoor wet, damp, or corrosive areas.

Can you bury an extension cord in PVC?

No. Even quality extension cords are not usually designed to be buried. You could maybe get away with it short term but… If you need to do that, run a PVC pipe in the dirt and some outdoor rated electrical wire through the pipe.

How long will galvanized conduit last underground?

Just as the acidity of the atmosphere influences the rate of corrosion, so too does the acidity of the soil. The zinc coating of hot-dipped galvanized steel will last in the harshest soil is 35 to 50 years and in less corrosive soil 75 years or more.

What does IMC stand for conduit?

In an effort to continue providing affordable solutions to the Electrical Industry, Allied Tube & Conduit® developed Intermediate Metal Conduit (IMC) as an alternative to Galvanized Rigid Steel Conduit (GRC, RMC) for those applications that need more protection.

Is EMT rigid conduit?

Electrical Metallic Tubing—EMT EMT is also called “thin-wall” conduit because it is thin and lightweight, especially compared to RMC. EMT is rigid but can be bent with a simple tool called a conduit bender.
