Whats the difference between 208v and 240v

208V is *not* the same as 240V. 208V is the voltage between phases of a 3-phase “Y” circuit that is 120V from neutral to any hot. 480V is the voltage between phases of a 3-phase “Y” circuit that’s 277V from hot to neutral.

Is 208V the same as 240V?

208V is *not* the same as 240V. 208V is the voltage between phases of a 3-phase “Y” circuit that is 120V from neutral to any hot. 480V is the voltage between phases of a 3-phase “Y” circuit that’s 277V from hot to neutral.

Can I plug 240V into 208V?

You can’t get it directly, though there’s a lot of equipment rated for 240V (usually specified at 230V) operation, that will still function at 208V, though it will produce 25% less power at that voltage.

Is 240V better than 208V?

Instead, when a typical 208/230v motor is connected to 208v, it usually slips more and runs at a lower output than on 230v or 240v. … However, on 208v, the motors start with a lower voltage. Therefore, the same amount of drop will have a greater effect on the system.

Can I use a 230 volt motor on 208?

This is a NEMA requirement. So, a 230 volt motor can operate as low as 207 volts. When a motor is rated at 208/230 volts this means the motor will operate at the 208 volt rating, not 10% under the 208 volt rating.

What is 208 volts used for?

208 volts is Line-to-Line Voltage. This three Phase voltage is frequently used in small businesses.

Will a 220V motor run on 208V?

Most devices designed for 220 will run on 208 and in shops all over the place this is commonly done. Purely resistive components (like heaters) will run at a slightly lower power. So, your machine will work, but will take longer to come up to temperature.

Is 208 230V single phase?

Since the label says single-phase 208/230 it means it requires two hots legs and NO neutral. A 3-phase A/C unit rated @ 230v would only require 3 conductors and a ground.

How many wires can be in a 208V circuit?

A 208V three phase, 20A, L21-20R outlet is connected to all three hot wires plus ground and neutral wires.

Does 208 need neutral?

Although phase balanced can occur, there is no neutral connection on 208 circuits, therefore no physical way for current to flow. The only purpose for a neutral would be for 120 convenience outlets.

Article first time published on

Can you have 208V single phase?

120/208V single phase is derived from 208V three phase power. … When using 120/208V single phase, you will use any two of those same three hot conductors, with the two waveforms peaking 120 degrees apart from each other.

Can you get 240V from 120 208V?

The short answer is that in general, it’s not — most 240V appliances also work fine at 208V by design, to handle this exact situation. If you actually need to get a true 240V from a 208V supply, you can use a step-up transformer, but most likely you’ll have no need to.

What is 240V single phase?

Single Phase 120/240 It may also be called Split Phase 240. This configuration consists of 2 voltage legs that are 180 degrees apart. The voltage between the two legs (called phase to phase or line to line) is 240V and the phase to neutral voltage is 120V.

Does 208 have a ground?

The 208V is phase-to-phase, between any of the 3 phases, and has no reference to ground, whereas the 120V is phase to neutral – hence the phase voltage to ground is 120V – if and only if the neutral is indeed tied to ground.

How do I know what size wire I need?

Divide the voltage running through the cable by your target current. If, for instance, 120 volts will act on the cable, and you want 30 amps to run through it: 120 / 30 = 4. This is your target resistance, measured in ohms. 30,000 x 1.724 x 10^-8 = 0.0005172 ohm sq.

Does a 240V outlet need a neutral?

Any 120V or 120/240V equipment must be supplied with a neutral conductor. In a 240V-only circuit, there is no neutral, and the ground can be either insulated or uninsulated.

How many wires does 240V single phase?

Residential 240V outlets usually have three or four connectors, which provide two hot 120V wires and either a ground wire, a neutral wire, or both (see Figure 3). The neutral wire provides a way for the appliance to use just one of the hot wires for 120V appliances like a clock or fan.

What is 208V 3 phase?

208V 3 Phase power has 3 electrical legs (phases) evenly spaced in a circle (360 degrees / 3 phases = 120 degrees) around a center (neutral). Each leg (phase) provides power (phase voltage) at a unique angle (phase angle) to the center (neutral).

Is 240V single phase or 3 phase?

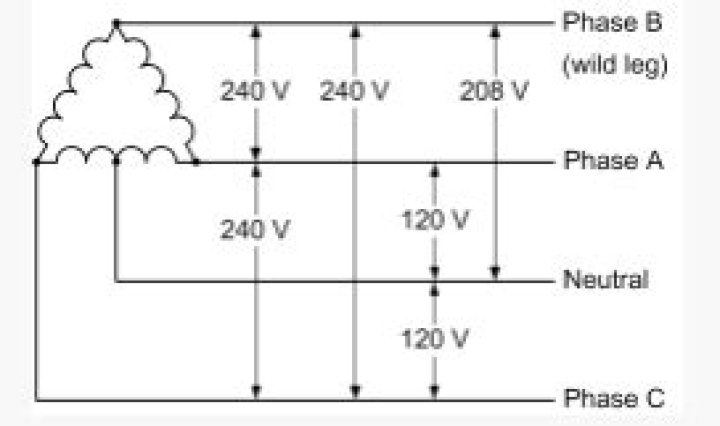

240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads. In parts of the world 240V Single Phase 2 Wire is the standard for homes.

What is 240V called?

Why is 240V called “Single-Phase“? – HVAC School.

What is the voltage to ground of a 120 208 volt 3 phase 4 wire system?

Always keep in mind that one trigger for the GFPE requirement is that the voltage TO GROUND is more than 150 volts. This rules out the typical 120/208 volt system where the voltage TO GROUND is 120 volts. In a 277/480 volt system, the voltage to ground is 277 volts.

What is the nominal voltage of 120 208?

The most common commercial building electric service in North America is 120/208 volt wye, which is used to power 120 volt plug loads, lighting, and smaller HVAC systems. In larger facilities the voltage is 277/480 volt and used to power single phase 277 volt lighting and larger HVAC loads.
