Where is AC drain line outside

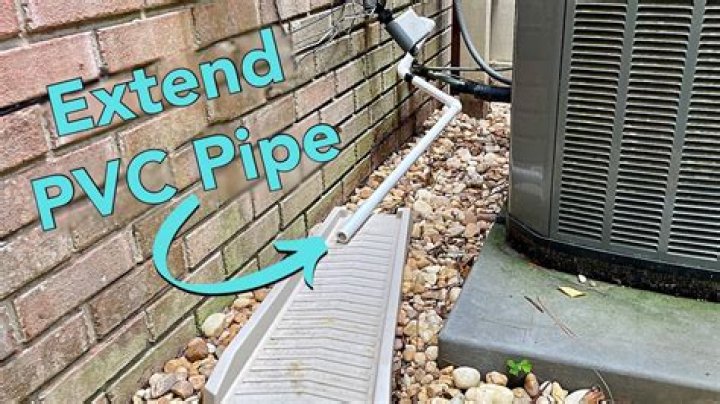

Your air conditioner has a condensate drain line that runs from the indoor unit to the outside of your home. You’ll find a white PVC or copper pipe located near your outdoor unit—this is where the drain line ends.

How do I find my outside AC drain line?

Find your AC drain line. Most AC drain lines are located outside, near the condenser unit. Push the stiff, thin brush into the end of the drain line. This might clear any clogs located near the end of the drain line.

Do all AC units drain outside?

It’s completely normal for your AC to drain 5-20 gallons of water outside of your home (via the condensate drain). It’s NOT normal for your AC to drain any amount of water inside your home (around your indoor AC unit).

Where does AC condensate drain to?

If it gets clogged, then the condensation water backs up into the air conditioning unit and goes into the secondary emergency drain pan or drain line. This is usually plumbed to the exterior of the home and terminates in the soffit above a window or in another conspicuous spot.

Should my exterior AC drain pipe be dripping water?

Under normal conditions, the exterior AC condensate drain pipe should only drip water or produce condensation while the air conditioner is turned on. The small puddle of water this process creates should dry up quickly in warm weather.

How far from house should AC drain line?

The condensate drain line is a white circular drain pipe not less than 3/4 of an inch in diameter. The problem that I see often as a Licensed Home Inspector is that most a/c condensate drain lines are routed outside, which is ideal, but stop or terminate 2 to 3 inches from the homes foundation.

How do you know if your AC drain line is clogged?

1. Musty, moldy smell near your indoor unit or in air from the registers/vents.
2. Standing water near the indoor unit.
3. Water damage in areas near the indoor unit.
4. AC system is not cooling your home.
5. AC system shuts down or doesn’t turn on.

Where does Window AC drain?

Most modern window air conditioners create condensation which drips down to the pan on the bottom of the unit. There are no drain holes or plugs used to remove the water as was the case with older style window AC units. When the water builds up it is distributed by the fan sling and thrown up against the condenser.

How do I clear my AC condensate drain line?

1. Turn off your air conditioner. …
2. Remove the cap from the pipe. …
3. Check to see if there is any debris stuck in the drain. …
4. Remove any visible debris and retest for proper drainage. …
5. Pour in Vinegar. …
6. Replace the drain cap. …
7. Remove the drain cap.

Where is my AC drip pan located?

A drip pan sits right underneath your system’s evaporator coils and collects all of the moisture that drips off of them.

Article first time published on

Why does AC drip water outside?

Poor airflow due to a dirty air filter or low refrigerant levels preventing heat absorption are common causes. When ice buildup on the coils melts, this could lead to an excess of water runoff to be flushed out through the condensate drain line, forming what appears to be an AC leak outside.

Can condensate drain to ground?

Both air conditioning condensate and refrigeration condensate are on the list of allowable discharges, provided that such water is distilled pure water taken from the atmosphere. However, any cleaning water or washwater can not be discharged to the ground, but must be captured for disposal in the sanitary sewer system.

What happens when AC drain line is clogged?

A Clogged Line Will Freeze Your AC System A clogged condensate drain line will trap water in your air conditioner. As a result, the evaporator coil will eventually turn to ice. The moisture in the drain line can also freeze, which will cause your air conditioner to turn off.

How much does it cost to unclog an AC drain?

Clogged Drain Line To flush the line or repair it can cost anywhere from $75-$250. In the case that the evaporator coil needs replacing, you are would pay between $400 to $950.

How do you divert condensation on an air conditioner?

Solution 1 – Use a water hose that connects to the drip hole. You could use a PVC plastic bushing (if the A/C drip hole is threaded) then attach the water hose and divert the water wherever you wish. Attach the hose horizontally against the top portion of the wall and hold it in place with wire ties.

How do you get condensation from AC?

No filtering or settling is necessary when using AC condensation for plants. One of the simplest ways to harvest the water is to collect it in a bucket outside the home. If you want to get fancy, you can extend the drip line directly into nearby plants or pots. The average home will produce 1 to 3 gallons (4-11 L.)

How do I find my AC condensate drain line?

You’ll find a white PVC or copper pipe located near your outdoor unit—this is where the drain line ends. Near your indoor unit, you’ll find a vertical PVC pipe with a cap on it, which acts as the access point for the condensate drain.

Is it normal to hear water in your window air conditioner?

Water Sounds Inside Unit From time to time, you may hear water sloshing around in your window air conditioner unit. The sound may be alarming, but it’s actually normal. Your window unit cools the room by drawing in warm, moist air and passing it through the indoor coil to cool it before blowing it back into the room.

Do all window air conditioners drip water?

All room air conditioners drip — or at least they should. However, drips in the wrong place or the wrong volume of dripping water may be a sign of a problem with the air conditioner. Find out how much air conditioner leaking water is normal, and when it signals trouble.

Do you have to drain window AC unit?

DO NOT drain a hole in the unit. Doing so will void your warranty. In instances where there is an excess amount of condensation there is a ¾in opening near the rear of the unit where the water would drain from. The fan is designed to sling water onto the coils to maintain a cool temperature, hence the splashing.

What is the small pipe on the side of house dripping water?

The pan is drained by gravity, or is pumped out, through a small PVC pipe called the “condensate line” or “condensate drain.” A little clog in your condensate drain can create a huge problem!

Can you drain condensate outside?

A furnace produces condensate as it works (it’s part of the combustion process), and this condensate must be drained and removed to the outside. If the pipe that runs the condensate to the outside of the house freezes over, your furnace won’t be able to work!

Can AC condensate drain into sewer?

Most condensate drains tie into the home’s sewer line and are equipped with a U-shaped trap to keep sewer gas odors from entering the HVAC system. If you notice a noxious odor coming from the supply vents when the blower is running, a dry drain trap may be the culprit.
