Where is the starter relay on a 2000 Ford Focus
Rachel Hunter
Published Mar 23, 2026
Starter relay is in the main fusebox in the cabin.
Where is the starter relay located?
The starter relay is most often located under the car hood, found in the power distribution center. It can also be located in the fuse block in the cabin.
What are the symptoms of a bad starter relay?
- The Vehicle Is Dead. The most obvious symptom is a completely silent car that does not respond when you turn the ignition key. …
- Starter Making Clicking Sounds. …
- Occasional Failures In Starting The Vehicle. …
- Starter Does Not Get Switched Off.
Where is the starter relay on a Ford?
The relay plugs into the vehicle in a box located inside the engine compartment, typically on the passenger’s side on the inner fender well.Is a starter relay and ignition relay the same thing?
A starter relay is an ignition system component specially designed to transmit power from the car battery to the starter solenoid. This implies it is a switch between the starter solenoid and the starter motor. It is solely designed to transmit current from the car battery to the starter properly.
How much does a starter for a Ford Focus cost?
Ford Focus Starter Replacement Cost Estimate. Labor costs are estimated between $103 and $130 while parts are priced between $271 and $318. This range is based on the number and age of Ford Focus’s on the road.
How do I know if my starter relay fuse is blown?
If your starter relay has gone bad, the electrical signal will never make it from the battery to the starter motor. As a result, your engine won’t turn over – no matter how many times you turn the key. A faulty relay often produces an audible clicking sound when you turn your car.
How do you check if starter relay is working?
Set your multimeter to be on the Ohms scale. Place one probe on the lead on the ignition circuit terminal and the other on the ground lead. The reading should be less than 5 Ohms. If it’s more than that, the starter relay is faulty and needs to be replaced.Where is the starter on a 2002 Ford Focus?
( Hey this is not 1966 you know…) It’s located right under the intake Manifold at the back of the engine and can be seen from under the car or partially from the top if you remove de Air Filter Box entirely. Next I removed the battery and battery tray tray to give myself more room to work.
How do you check a Ford solenoid?- Open Your Vehicle’s Hood. …
- Find The Starter. …
- Identify The Starter Solenoid. …
- Observe A Clicking Sound While Someone Turns On The Ignition Switch. …
- Test The Battery. …
- Check For Current Resistance Using A Jumper Wire. …
- Check For Current Resistance Using A Test Light.
What causes a starter relay to go out?
Starter relays rarely become faulty, but when they do, it can mean a lot of trouble because your car will not start. Several things can cause a starter relay to fail, including corroded contacts, a faulty circuit, contacts that weld together, or just a relay that’s too old.
How do you tell if it's your starter or ignition switch?
Test the Starter It is under the hood, usually on the passenger side at the bottom of the motor next to the transmission. The ignition switch is a set of electrical contacts that activates the starter and usually is located on the steering column.
How do you check if a relay is bad?
The only tool required to check a relay is a multimeter. With the relay removed from the fuse box, the multimeter set to measure DC voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located).
Can you jump a car with a bad starter?
Jump-starting a car with a bad starter motor will not help start the engine. Jump-starting will only boost battery power. A manual transmission car with a bad starter maybe push or tow started but an auto transmission car can not.
How much is it for a starter?
A brand new starter could cost you around $50 – $350, while labor costs from a qualified mechanic could range between $150 – $1,100. In total, replacing a bad starter motor could amount to between $200 – $1450.
How much does a starter cost for a 2008 Ford Focus?
Car2008 Ford FocusL4-2.0LServiceService typeCar Starter RepairEstimateEstimate$596.77Shop/Dealer PriceShop/Dealer Price$727.22 – $1096.05

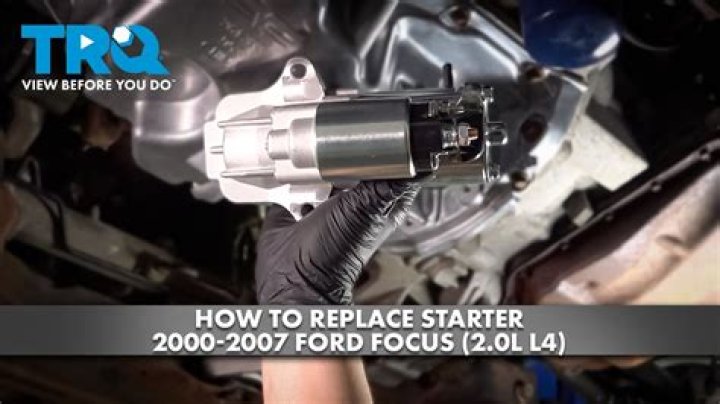

How do you change a car starter?
- Safety First. Disconnect the battery. …
- Remove the Wiring. Remove the wiring and positive battery cable from the starter solenoid.
- Remove the Starter and Bolts. Remove the starter retaining bolts. …
- Compare to Verify. …
- Transfer Heat Shield. …
- Replace with New Starter. …
- Secure and Tighten. …
- Connect the Wiring.
What is the starter relay fuse?
A starter relay is a small electrical device located in the high-current motor’s starting circuit. A relay is simply a remote switch that regulates the current in a high-current circuit. A starter relay in a car uses the modest ignition switch current to close the considerably more powerful starter circuit.
