Which of the following topologies connects each device to a trunk cable

The bus topology connects all devices to a trunk cable.

What topology connects all devices to a trunk cable?

The bus topology is the simplest to install. All devices on the network are connected to one primary trunk cable. Bus topology is typically used with a contention network.

Which topology connects devices?

Star network topology — The most common network topology, star topology connects each device in the network to a central hub. Devices can only communicate with each other indirectly through the central hub. Hybrid network topology — Any combination of two or more topologies is a hybrid topology.

Which topologies connects each device to a neighboring device?

TopologyWhat it isP2PThe network consists of a direct link between two computersBusUses a single cable which connects all the included nodesRingEvery device has exactly two neighboring devices for communication purposeStarAll the computers connect with the help of a hub.

Which topology all device connect to a common shared cable?

c) Bus Topology : Bus topology is a network type in which every computer and network device is connected to a single cable.

Which of the following topologies connects each network to a central hub?

Star topology has become the dominant physical topology for LANs. The star was first popularized by ARCNET, and later adopted by Ethernet. Each node is connected directly to a central device such as a hub or a switch, as shown in Figure 5.17.

Which topologies connects multiple devices to one central device?

The mesh topology connects all devices to each other. When every device is connected to every other device, a failure of any cable or device along a connection does not affect the network. The mesh topology is used in WANs that interconnect LANs.

In which of the following topologies does each device on the network act as a repeater sending the signals to the next device?

A ring topology exists when all of the nodes on the network are connected in a circle. Each node in the network acts as a repeater keeping the signal strong as it travels through the network.

Which network component connects a device to transmission media?

Which network component connects a device with the transmission media and allows it to send and receive messages? The network interface card (NIC) allows a device to send and receive messages over the transmission media.

What is mesh topology diagram?

Updated: 11/13/2018 by Computer Hope. A mesh topology is a network setup where each computer and network device is interconnected with one another. This topology setup allows for most transmissions to be distributed even if one of the connections goes down. It is a topology commonly used for wireless networks.

Article first time published on

Which device is used to connect a LAN to a WAN?

Router. A router is a network device that connects together two or more networks. A common use of a router is to join a home or business network (LAN) to the Internet (WAN).

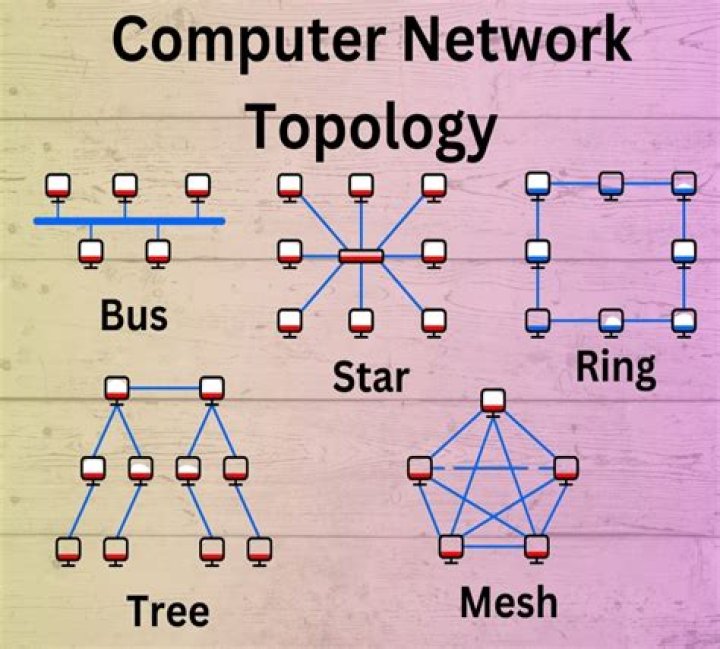

What are the five types of network topology?

• Mesh Topology.
• Star Topology.
• Bus Topology.
• Ring Topology.
• Hybrid Topology.

Which of the following computer networks is built using USB cable?

PAN is the computer networks is built using USB cable.

What is hierarchical topology?

A hierarchical or extended star topology is a star network with an additional network device connected to the main network device. Larger networks such as companies or universities use the hierarchical star topology. … The mask topology connects all devices together.

What is topology in DCN?

A Network Topology is the arrangement with which computer systems or network devices are connected to each other. Topologies may define both physical and logical aspect of the network. Both logical and physical topologies could be same or different in a same network.

What is networking topology and its types?

Network topology refers to the physical or logical layout of a network. … There are two types of network topologies: physical and logical. Physical topology emphasizes the physical layout of the connected devices and nodes, while the logical topology focuses on the pattern of data transfer between network nodes.

Which of the following represents a topology constructed with a router switch and three PCs connected to it?

Which of the following represents a topology constructed with a router, switch, and three PCs connected to it? A star network is the most common network in use today. Ethernet networks with computers connected to a switch (or a less commonly a hub) form a star network.

How many network topologies are there?

• Bus Topology.
• Ring Topology.
• Star Topology.
• Mesh Topology.
• Tree Topology.
• Hybrid Topology.

What is a hub and what does it do?

Hub is commonly used to connect segments of a LAN (Local Area Network). A hub contains multiple ports. When a packet arrives at one port, it is copied to the other ports so that all segments of the LAN can see all packets. Hub acts as a common connection point for devices in a network.

Which network device requires a device driver in order to connect hosts to the network segment?

Which network device requires a device driver in order to connect hosts to the network segment? Network interface card (NIC).

Which kind of connector do you use to connect a modem to a standard telephone line?

Which kind of connector do you use to connect a modem to a standard telephone line? A standard telephone line connector is an RJ-11. RJ-45 jacks are used for Ethernet twisted pair cables.

Which of the following geographic network types is made up of an interconnection of LANs?

A Campus Area Network is made up of an interconnection of LANs within a specific geographical area.

Which of the following connectors are used with fiber optic cables?

The ST connector is used with fiber optic cable and uses a twist-type connector. To remember the difference between ST and SC connectors, use the mnemonics Set-and-Twist and Set-and-Click. SC and LC connectors are used with fiber optic cables, but plug in instead of twist.

Which of the following are characteristics of a coaxial cable?

It has a center conductor covered with an insulator, then braided or solid outer conductor, and then insulation. It has heavier insulation than most cables. It is vulnerable to high frequency interference.

Which of the following standards is typically used in a rollover cable?

Which of the following standards is typically used in a rollover cable? RS232 is the standard for serial communications.

How do switches and bridges learn where devices are located on a network?

How do switches and bridges learn where devices are located on a network? – When a frame enters a port, the source MAC address is copied from the frame header. … – When a frame enters a port, the source MAC address is copied from the frame header. An eight-port switch receives a frame on port number 1.

What is the frequency of a 802.11 a networking?

802.11a supports bandwidth up to 54 Mbps and signals in a regulated frequency spectrum around 5 GHz. This higher frequency compared to 802.11b shortens the range of 802.11a networks.

Which of the following devices operate at OSI Model Layer 2 select two?

Explanation: A network interface card and a switch operate at layer 2 (Data Link) of the OSI model.

Where is hybrid topology used?

The hybrid topology is more useful when you need to fulfill diversity in Computer Network. In this topology, all network sections can include the configuration of different Network Topology. For instance, you can have a Hybrid network made by two different networks Star Backbone and the Ring Network.

What is hybrid topology with example?

Notes on Hybrid topology: Star-‐Ring and Star-‐Bus networks are most common examples of hybrid network. These are two examples of hybrid topology: … In such cases the linear bus provides a backbone that connects multiple stars. Star Ring: The Star Ring is a combination of ring and star topologies.

Where are mesh topologies used?

Mesh topology is a type of networking where all nodes cooperate to distribute data amongst each other. This topology was originally developed 30+ years ago for military applications, but today, they are typically used for things like home automation, smart HVAC control, and smart buildings.
