Why does aft CG save fuel

When you start loading an aircraft with a more aft CG you start to lose some of that stability and it may become more difficult to recover from a stall, but this will also decrease drag resulting in higher cruise speeds and better fuel efficiency.

Does CG move forward or aft with fuel burn?

They add useful load and / or range. One nice thing about them is that their load is usually at your CG point. Thus, when you consume the fuel from the tips, the CG moves forward.

How would moving fuel aft in flight affect fuel efficiency?

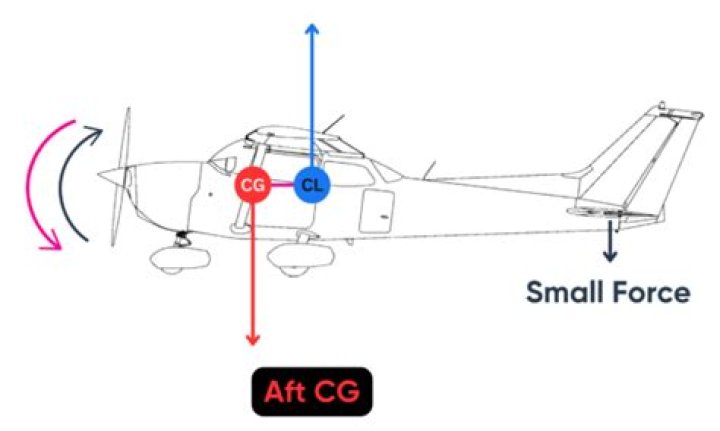

The farther aft the c.g. is the lower the fuel burn because as you move the c.g. aft (toward the center of lift of the wing), the pitch down moment of the wing lift decreases and thus the tailplane has to supply less downward force, which means there will be less overall drag and fuel efficiency goes up (the …

Why is a forward CG more stable?

The summary is that forward CG is better than aft CG because a nose heavy plane that is slow will drop the nose and accelerate away, where a tail heavy plane will fully stall and not be able to get the nose low to exit the stall.

Does forward cg increase stall speed?

The effect of forward CG is to increase tail-down force, main-wing loading, and the stalling speed. The tail-down force opposes wing lift and increases effective weight. … As the CG moves rearward, less tail-down force is required and the stalling speed decreases.

Is forward or aft CG better?

To keep it simple, loading the aircraft with a forward CG within limits will increase the aircrafts stability as opposed to loading an aircraft with a more aft (rearward) CG within limits of course will decrease stability.

What happens if CG is aft?

The aft CG limit is the most rearward position at which the CG can be located for the most critical maneuver or operation. As the CG moves aft, a less stable condition occurs, which decreases the ability of the aircraft to right itself after maneuvering or turbulence.

Which direction does the CG shift as fuel is burned off in your aircraft?

On swept wing airplanes with a center tank, the center tank is almost always burned first and it causes an aft shift of C of G as its fuel is burned, followed by a forward shift as the wings are consumed.

What happens to CG as you burn fuel?

As you burn fuel in flight, the CG may move beyond the limit. … But as you burn off fuel in flight, in the case of the Bonanza, the weight shifts aft. If the CG shifts beyond the aft limit, you could potentially get into trouble as pitch control becomes compromised.

What is the performance benefit of an aft CG on a large passenger airliner?

Flying at an aft CG will reduce the download on the tail and improve cruise performance. When airplanes are operated near the aft CG limit, download on the tail is minimized and angles of attack and drag are reduced.

Article first time published on

How does CG affect longitudinal stability?

The longitudinal static stability of an aircraft is significantly influenced by the distance (moment arm or lever arm) between the centre of gravity (c.g.) and the aerodynamic centre of the airplane. The c.g. is established by the design of the airplane and influenced by its loading, as by payload, passengers, etc.

How much fuel does a 787 burn per hour?

A Boeing 787-9 burns about 5400 litres of fuel per hour. At a cruising speed of 900km/h, that equates to 600 litres/100km.

How much fuel does a A320 burn per hour?

An Airbus A320–200, consumes around 2500 kg/h. It uses Jet A-1 type fuel. It has a density of 800 kg/cubic metre. This amounts to 3125 litres per hour.

What is lateral stability of aircraft?

Lateral Stability (Rolling) Stability about the aircraft’s longitudinal axis, which extends from the nose of the aircraft to its tail, is called lateral stability. Positive lateral stability helps to stabilize the lateral or “rolling effect” when one wing gets lower than the wing on the opposite side of the aircraft.

Why do flaps lower stall speed?

Reduced Stall Speed With Flaps Extending flaps reduces your aircraft’s stall speed for a fairly simple reason. Because your wing creates more lift with the flaps down, you don’t need to as much angle-of-attack to balance the four forces of flight.

What causes induced drag?

Induced Drag is an inevitable consequence of lift and is produced by the passage of an aerofoil (e.g. wing or tailplane) through the air. Air flowing over the top of a wing tends to flow inwards because the decreased pressure over the top surface is less than the pressure outside the wing tip.

Why does stall speed increase in a turn?

When you turn, you need to increase your total lift to maintain altitude. You increase your total lift by increasing your angle of attack, which means you’re closer to stall than you were in wings-level flight. And, your stall speed increases in proportion to the square root of your load factor.

How does moving CG affect takeoff and en route performance?

Center of Gravity: The farther forward the CG the longer the takeoff roll. More authority is required to lift a heavy nose. This can be amplified with heavy takeoff weight. As CG moves forward, the difference between nose-wheel lift-off and takeoff speed decreases.

What is aft aircraft?

If you go aft in a boat or plane, you go to the back of it. If you are aft, you are in the back.

How does a pilot know the weight of a plane?

The airline crews don’t know the weight of their passengers. This is taken usually from a chart X number of passengers times X pounds. These pounds plus cargo, fuel weight, aircraft weight are all factored into the gross weight of the aircraft for take off, etc..

Why weight and balance of aircraft is important?

Weight and balance have a direct effect on the stability and performance of the aircraft. If a plane is too heavy, it may never get off the ground. If it’s out of balance, it may be uncontrollable when it does take flight. … Maintaining proper weight and balance is an extremely important balancing act.

Where would the CG be located aft of datum?

The CG is located 98 inches aft of datum, which is 1 inch aft of limits. If luggage which weighs 90 pounds is moved from the rear baggage compartment (145 inches aft of datum) to the front compartment (45 inches aft of datum), what is the new CG? A) 96.13 inches aft of datum. B)

What are some characteristics of an airplane loaded with the CG at the aft limit?

An aircraft is loaded with the CG at the aft limit. What are the performance characteristics compared with the CG at the forward limit? a. The aft CG provides the highest stall speed and cruising speed.

Why do planes have unusable fuel?

Aircraft have a certain amount of unusable fuel because in certain flight attitudes some of the total fuel can become inaccessible, particularly with low fuel levels. … Unusable fuel is really a safety mechanism to ensure that the engine is properly fed fuel in all phases of flight.

What is maneuver point?

Definition of maneuver point: that point on the con- figuration where the location of the e.g. would result in the control force required per gr maneuver to be equal to zero.

What happens if CG is too far back?

In extreme cases, a CG location that is beyond the forward limit may result in nose heaviness, making it difficult or impossible to flare for landing. Manufacturers purposely place the forward CG limit as far rearward as possible to aid pilots in avoiding damage when landing.

Why is 787 so fuel-efficient?

New, lightweight composite materials make up half of the 787’s primary structure, including the fuselage and wing. The aircraft’s wing design and construction enable speed and fuel efficiency. … The 787 is powered by new, more fuel efficient models of jet engines produced by General Electric and Rolls-Royce.

How many gallons per hour does a 777 burn?

A Boeing 777, specifically the 777-200LR burns ~6.8t of fuel per hour while the 777-300ER burns ~7.5t of fuel per hour while cruising at 892 km/h @ 30,000 ft. A 2016 upgrade package increases fuel efficiency by 2%. This decreases fuel consumption on the -200LR to ~6.66t per hour and the -300ER to ~7.35t per hour.

How expensive is jet fuel?

170.8 Cents (US dollars) per Gallon.

How much fuel does 747 use?

A plane like a Boeing 747 uses approximately 1 gallon of fuel (about 4 liters) every second. Over the course of a 10-hour flight, it might burn 36,000 gallons (150,000 liters). According to Boeing’s Web site, the 747 burns approximately 5 gallons of fuel per mile (12 liters per kilometer).

How much fuel does a 787 burn on takeoff?

It burned 3700 pounds of fuel in its first 6 minutes of climb, or a 37,000 pounds an hour fuel flow. The climb took 28 minutes from takeoff until top-of-climb, and used 13,000 pounds of fuel. The fuel load was 163,000 pounds for the flight, including taxi fuel.
