Why does metal warp welding

Distortion in a weld results from the expansion and contraction of the weld metal and adjacent base metal during the heating and cooling cycle of the welding process. Doing all welding on one side of a part will cause much more distortion than if the welds are alternated from one side to the other.

What causes warping in metal?

Here are 8 reasons steel parts can warp upon quench and tempering: Rapid heating. Overheating. Non-uniform heating.

How do you fix a warped metal after welding?

Heat straightening is a welding correction process whereby you apply heat to deformed part. This allows heating and followed by a natural cooling action to fix the deformation and get the metal back into its original condition. Although this process is not straightforward, welders find it highly desirable.

How do you stop metal from warping?

Place welds near the neutral axis, or the center of the part. Reduce warpage by providing less leverage for the shrinkage forces to pull the plates out of alignment. Balance welds around the neutral axis. Welding on both sides of the plate offsets one shrinkage force with another, to minimize warpage (Figure 4).

How do you prevent warping when welding aluminum?

Consider the use of restraints such as clamps, jigs and fixtures and back-to-back assembly. Locking the weldment in place with clamps fixed to a solid base plate to hold the weldment in position and prevent movement during welding is a common method of combating distortion.

How do you keep metal cool while welding?

Welding Heat Sink– Applying a heat sink behind the weld or on the surrounding metal of a weld will help keep the the heat from spreading and allows you to weld without damaging the metal surrounding the weld as much.

What is weld warping?

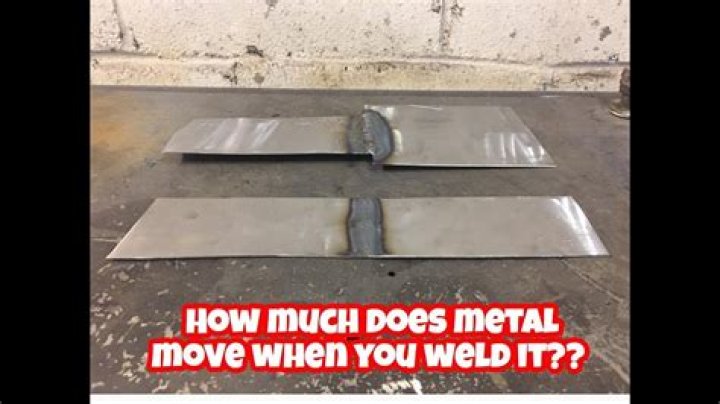

Weld shrinkage plagues experienced and amateur welders alike. Shrinkage causes distortion of the weldment. Warping of the base plate is caused by heat from the welding arc. Distortion results from the expansion and contraction of the weld metal and adjacent base metal during the welding process.

How do you straighten a warped steel plate?

The steel should be heated slowly to around 600/620°C and straightened at that temperature before being allowed to cool slowly and naturally. The heated area should extend well beyond the area to be straightened and, if a gas torch is used, a high heat output nozzle is required rather than a cutting nozzle.

How do you remove welding distortion?

Distortion is corrected by applying heat to spots on the convex side. Many small spots are substantially more effective than only a few large ones. Line heating: Heating the component in a straight line along the welded joint on the opposite side to the weld often corrects angular distortion.

How do you prevent warpage and distortion?

Weld the assembly from inside to outside to avoid high shrinking stresses. Avoid the need to force, spring, or restrain components during welding. Avoid over-welding and use as few weld passes as possible. Continuously weld thick sections; however, thin sections may benefit from staggered welding.
