Why is the drying process used in penetrant testing

Which of the following is a purpose of the drying process used in penetrant testing? -After the application of a wet developer, the drying process aids in securing a uniform developer coating.

What is the main principle behind liquid penetrant testing?

The principle of liquid penetrant testing is that the liquid penetrant is drawn into the surface-breaking crack by capillary action and excess surface penetrant is then removed; a developer (typically a dry powder) is then applied to the surface, to draw out the penetrant in the crack and produce a surface indication.

What is the method used to apply non aqueous developer that is considered most effective?

Which of the following methods for applying non-aqueous developer is normally considered most effective? Spraying. Excellent, non-aqueous wet developer is usually applied by spraying from a pressurized gun.

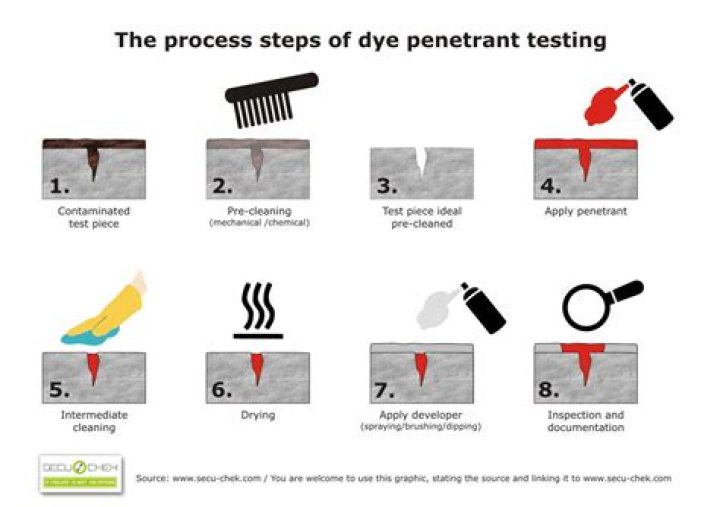

What is the process for dye penetrant test process?

Pre-clean part. This can range from grinding and wire brushing to merely wiping the part with a rag moistened with the cleaner/ remover. …
Apply penetrant. …
Remove penetrant. …
Apply developer. …
Evaluate indications. …
Post-clean part.

Which is an advantage of penetrant testing penetrant testing can?

Advantages of the penetrant method of Non-Destructive Examination are: It is a very sensitive method, capable of finding extremely fine flaws. It can be used on magnetic and non-magnetic metals, some plastics and glass. Small objects, with awkward shapes, can be inspected.

Why precleaning is important in liquid penetrant testing?

Pre-cleaning of parts is critical since contaminants can mask defects, and post-cleaning is required to remove residues. Liquid penetrant inspection can be used successfully on nonporous and fairly smooth materials such as metals, glass, plastics and fired ceramics.

Should the penetrant be allowed to dry on the part?

Generally, there is no harm in using a longer penetrant dwell time as long as the penetrant is not allowed to dry. The ideal dwell time is often determined by experimentation and may be very specific to a particular application.

What are the limitations of dye penetrant inspection?

With this method, only surface breaking defects can be detected.
It is possible to inspect only materials with relatively nonporous surface.
It is necessary to pre-clean the material since contaminants can mask defects.
Metal smearing from machining, grinding, and grit or vapor blasting must be removed.

How do you use penetrant dye?

Penetrant. Apply the penetrant to the test area. Allow the penetrant to dwell for 10-30 minutes. …
Developer. Apply the developer to the test area. Allow the developer to dwell for 10-60 minutes.
Inspect. Examine the part for any bright, clear indications.

What are the five essential stages of dye penetrant?

Pre-cleaning: …
Application of Penetrant: …
Excess Penetrant Removal: …
Application of Developer: …
Inspection: …
Post Cleaning:

Article first time published on

Which of the following developers requires the test piece to be dried prior to its application?

Q.Which of the following developers requires the test piece to be dried prior to itsapplication?B.Water suspendableC.Non-aqueous suspendableD.All of the above

Which penetrant process is best suited to the detection of discontinuities in a test piece having threads and keyways?

Q.Which penetrant process is best suited to the detection of discontinuities in a test piece having threads and keyways?B.Water washableC.Post emulsifiableD.FluorescentAnswer» b. Water washable

Which of the following is are a type of developer used in penetrant inspection?

Liquid penetrant testing developer consists of 5 different types as following: Dry powder (fine powder form) water soluble (used for liquid dip tanks application) water suspensible (used for liquid dip tanks application)

What are the advantages and disadvantages of penetrant testing?

The method has high sensitivity to small surface discontinuities.
The method has few material limitations, i.e. metallic and nonmetallic, magnetic and nonmagnetic, and conductive and nonconductive materials may be inspected.

What is the disadvantage of the liquid penetrant test Mcq?

What is the disadvantage of the liquid penetrant test? Explanation: LPI is a fast, non-expensive and reliable test. It is limited by the depth of the defect. So disadvantage of Liquid penetrant testing is depth restriction.

Which type of material is penetrant testing not recommended?

Penetrants can be used to inspect ferrous and nonferrous metals. Penetrant inspection will find discontinuities open to the surface on ferrous and nonferrous metals. Penetrant testing should not be done on porous surfaces, as the pores will act as discontinuities to trap penetrant and prevent accurate inspection.

What are the different penetrant application techniques used?

Method A – Water Washable.
Method B – Post-Emulsifiable, Lipophilic.
Method C – Solvent Removable.
Method D – Post-Emulsifiable, Hydrophilic.

What are the properties of good penetrant?

spread easily over the surface of the material being inspected to provide complete and even coverage.
be drawn into surface breaking defects by capillary action.
remain in the defect but remove easily from the surface of the part.

How do you clean penetrant dye?

Removing Penetrant When sufficient penetration time has been allowed, wipe the surface clean with a clean towel or cloth. Repeat if necessary. Some surfaces will require only wiping. In general, however, remove excess surface penetrant with clean cloths premoistened with cleaner/remover.

How many types of penetrant are there?

three basic types of penetrant: Colour contrast. Fluorescent. Dual purpose (fluorescent / colour contrast)

Which defect Cannot be detected by dye penetrant?

7. Which of the following defect is not detected by dye penetrant test? Explanation: Dye penetrant test is one of the methods of non-destructive testing of the components. Leaks, cracks and forging defects are some defects which can be identified by using dye penetrant test.

Which type of developer should not be used with a visible dye penetrant process?

Water soluble developers may not be used with Type 2 visible dye penetrants because, like dry powder developers, water soluble developers do not produce an adequate white contrasting background that is necessary for visible dye penetrant inspection.

What is magnetic particle inspection used for?

Magnetic Particle Inspection (MPI) is a non-destructive testing method that can detect surface and subsurface flaws in ferromagnetic materials. Magnetic particle inspection is often carried out to help determine an item’s fitness for use or conformity.

Which of the following material can be tested by magnetic particle testing?

3. Which of the following materials can be tested using magnetic particle testing? Explanation: Among the following materials, only ferrous materials can be tested using a magnetic particle test, which is therefore steel. Brass and bronze are copper alloys and solder is an alloy of zinc, lead and tin.

What is a disadvantage of solvent removable penetrant?

Q.What is a disadvantage of the solvent removable penetrant process?A.It is the least sensitive of the penetrant processesB.It is not well suited for use on rough surfacesC.It is highly portableD.No water is required for its use

Which penetrant process is most sensitive to detect discontinuities?

Q.Which penetrant process is the most sensitive to detect fine discontinuities?C.Post emulsifiable fluorescentD.Water washable fluorescent

Which type of penetrant is a visible penetrant?

Penetrant materials come in two basic types: Type 1 – Fluorescent Penetrants: they contain a dye or several dyes that fluoresce when exposed to ultraviolet radiation. Type 2 – Visible Penetrants: they contain a red dye that provides high contrast against the white developer background.

Which type of penetrant process would be best suited to the detection of wide shallow discontinuities?

Q.Which penetrant process is best suited to detect shallow discontinuities?D.FluorescentAnswer» c. Post emulsifiable

Which type of penetrant process is least susceptible to over washing?

Q.Which type of penetrant process is least susceptible to over washing?B.Water washableC.Post emulsifiableD.FluorescentAnswer» c. Post emulsifiable

Which penetrant method is the easiest to use?

Since visible dye penetrants do not require a darkened area for the use of an ultraviolet light, visible systems are more easy to use in the field. Solvent removable penetrants, when properly applied, can have the highest sensitivity and are very convenient to use.

Which of the following is a limitation of liquid penetrant testing is?

Limitations. The major limitation of liquid penetrant testing is that, it can detect only imperfections that are open to the surface. Another factor that may inhibit the effectiveness of liquid penetrant testing is the surface roughness of the object being tested .
