How do variable air volume boxes work

VAV stands for Variable Air Volume. In its simplest form, VAV systems use varying airflow at a constant temperature to heat and cool buildings. This is opposite of a CAV (or Constant Air Volume) system, which supplies consistent air flow at varying temperatures to heat or cool a space.

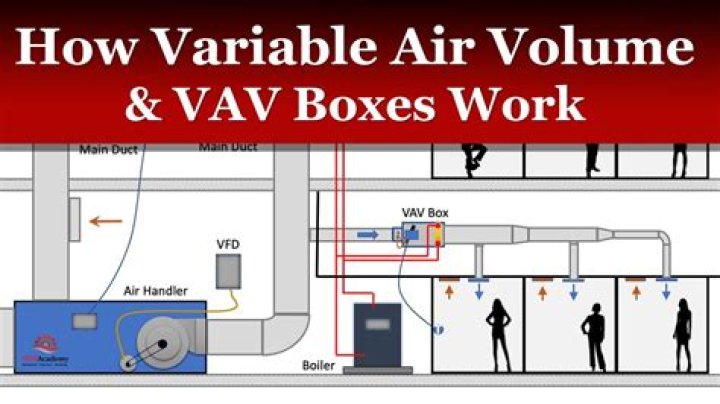

How does a VAV box system work?

The VAV regulates the volume of the air to the zone by opening or closing the damper, thus controlling the amount of conditioned air directed to the zone. Each zone in a building has a thermostat that controls the VAV, telling it when to open or shut the damper based upon the needs of the zone.

How does a dual duct VAV box work?

In dual-duct systems, the air handling unit has two coils, a continuously operating cooling coil and a continuously operating heating coil. The cooling coil feeds chilled air into a cold air duct. The heating coil feeds hot air into a hot air duct. … At each space, air is tapped from the two ducts by a terminal unit.

What is a variable air volume box?

A VAV terminal unit, often called a VAV box, is the zone-level flow control device. It is basically a calibrated air damper with an automatic actuator. The VAV terminal unit is connected to either a local or a central control system.

Do VAV systems use water?

Advantages of VAV systems include the following points: VAV systems are very cost effective from a chilled-water and heating-water-pumping perspective. … This is because there is no chilled water coil at the VAV terminal and, where non-fan powered VAV terminal are used, there is no filter at the unit.

Does a VAV box need power?

POWER SUPPLY IS INSTALLED ARE NOT REQUIRED WHEN THE ENCLOSURE & BACKPLATE LOCATION(S). NUMBER OF BOXES & MECHANICAL CONTRACTOR FOR SUPPLY(S). COORDINATE WITH SUPPLY & INSTALL POWER MECHANICAL CONTRACTOR TO VAV BOX 24V POWER SUPPLY(S).

Do Vavs Have filters?

Each VAV terminal box is connected to a supply air source. This is a ducted connection that provides air from an AHU. Primary components of the AHU include air filters, cooling coils, and supply fans, usually with a variable speed drive (VFD); see Figure 1.

What is the difference between VAV and CAV?

HVAC engineers can choose between CAV and VAV systems depending on the application. While a CAV system uses variable air temperature and constant airflow, a VAV system keeps constant temperature and variable airflow.

How does VAV reheat work?

Typical VAV with Reheat System The supply air temperature is held constant at 55°F. When a zone falls below its set point, the damper closes and reheat is enabled. When a zone is above its set point, the damper opens fully to allow as much 55°F air as possible into the zone to cool the space quickly.

What is VAV actuator?

Variable Air Volume (VAV) is a type of heating, ventilating, and/or air-conditioning (HVAC) system. … The VAV Zone Controller has a built-in actuator and maintains zone temperature by operating the terminal fan and regulating the flow of conditioned air into the space.

Article first time published on

What is variable air volume system & dual duct system?

Dual duct variable air volume (DDVAV)) systems are used to obtain zone temperature control by mixing the cold and warm air in various volume combinations. The fan is sized for the anticipated maximum coincident hot or cold volume, not the sum of the instantaneous peaks.

On which side of the refrigeration machine is the variable air volume system placed?

So the main difference in a VAV system, compared to a CAV system, is the VAV terminal. This is located just on the branch coming off of the main duct. Each VAV box serves a certain zone (room or group of rooms). The VAV box is connected via a cable to a thermostat which is located within the room, or the zone.

How does a dual duct warm air system regulate air temperature?

In the dual-duct system, warm air and cool air travel through separate ducts and are mixed to reach a desired temperature. A simpler way to control temperature is to regulate the amount of cold air supplied, cutting it off once a desired temperature is reached.

What is night purge ventilation?

What is night cooling or passive cooling? Also called night purge ventilation or night flushing, it uses the building’s thermal mass as a sink during the day as it absorbs heat gains from occupants, equipment, and the sun.

What is the difference between VAV and VRF?

VRF, variable refrigerant flow, is a more recent HVAC technology than VAV and uses refrigerant as its medium to heat and cool. … Whether it be a separate office or conference room, or an independent store, a VRF system allows each area or zone unique temperature control without affecting the rest of the building.

How much does a VAV box cost?

Installed cost of a VAV box with controls is usually between $2000 and $35001. Installed cost for box zones with 4 to 8 diffusers or smaller is more than for VAV diffusers.

Why is it necessary to put reheat coils in VAV boxes?

Reheat is used sometimes for humidity control, and sometimes for occupant comfort. The latter use happens when zone cooling loads are low and too much cold air is supplied to a space. In a VAV system, a damper modulates the amount of cool air supplied to the zone.

What does a variable refrigerant flow VRF or variable refrigerant volume VRV system do?

Also known as Variable Refrigerant Flow (VRF), VRV refers to the capacity to control the flow of refrigerant to multiple evaporators of varying capacities. This allows for exceptional individual comfort contouring and the ability to simultaneously provide both heating and cooling in different zones.

How does electric reheat work?

Reheat for dehumidification is simply cooling the air with the air conditioner to pull out the moisture. But instead of throwing the heat outside, the reheat coil simply puts that heat back Into the original air stream. It forces an air conditioner to act like a poorly designed dehumidifier.

Where are CAV systems used?

CAV systems are usually used in spaces with large open areas, few windows and uniform loads. Examples of theses types of spaces include lobbies, department stores, theaters, auditoriums and exhibition halls.

Which is better a split system or a package unit system?

A split system is more energy-efficient than a package unit. Because homeowners prioritize high energy-efficiency, installing a split system can increase the resale value of your home. On the other hand, a package unit has an average energy-efficiency.

What is a dump zone in a zoned air system?

Dump zone – a room or rooms where the duct does not have a damper and will receive air flow any time the hvac system is running.

What type of HVAC system delivers both warm and cool air?

Hybrid Heat Pump HVAC System An electric heat pump and a furnace are used in tandem in a hybrid heat pump system. When it’s cold outside, the furnace heats your home. The heat pump acts as an efficient, additional heat source during milder weather and provides cool air when it’s warm.

What is the purpose of dual duct system in air conditioning?

An air-conditioning system in which two supply ducts run to each space being conditioned, one for cold air, the other for warm air; at each individually controlled space, air from the two ducts is blended in a sheet-metal box (called a mixing box) and then supplied to the conditioned space.

How long does it take to install a VAV box?

The estimated installation rate is 3.5 man-hours17.

What is a pressure independent VAV box?

Pressure Independent. A device is said to be pressure indepen dent when the flow rate passing through it is maintained constant regardless of variations in system inlet pressure. The pressure independent control is achieved with the addition of a flow sensor and flow controller to the VAV box.

How many types of VAV are there?

There are two primary types of VAV systems—single-duct and dual-duct.
