What does cardioid polar pattern mean

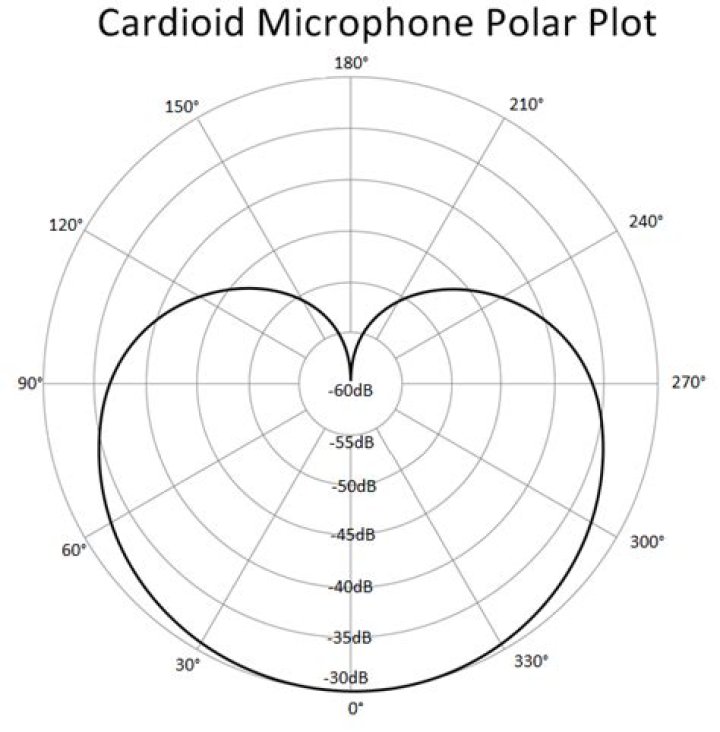

Cardioid (kar-dee-oid) is the most common directional polar pattern, with the highest sensitivity to sound coming in from directly in front of the microphone capsule (0º), practically no sensitivity to sound coming directly from behind (180º), and a reduced sensitivity to sound coming in from the sides (90º/270º).

What is a cardioid polar pattern used for?

Cardioid polar pattern It is most sensitive to sounds coming from in front of the mic and least sensitive directly behind the mic. A cardioid mic has a useful pickup angle of 131 degrees, so it can accommodate one or two singers and is forgiving enough to still pick up a vocalist with a wandering mic technique.

How is a cardioid polar pattern created?

If the delay inside the mic is set the same as the delay outside the mic, sounds arrive at the front and rear of the diaphragm at the same time, in phase. … Rear sounds cancel out. You have created a cardioid polar pattern. Sounds coming from the front do not cancel out.

What are cardioid mics good for?

Cardioid microphones are great for recoding vocals and anything that’s supposed to sound “dry” and “close”. Figure-8 microphones are equally sensitive to sound from the front and from the rear, but have great rejection for sound coming from the sides.

Which polar pattern is best?

An omni pattern provides the best bass response, flattest frequency response, and is the least sensitive to handling or wind noise in comparison to all other polar patterns. It will shine in good sounding rooms and time-based stereo recordings.

Where do you put a cardioid mic?

To place a cardioid microphone, cover one ear and cup your hand behind the other ear and listen. Move around the player or sound source until you find a spot where the frequencies from the instrument are the most balanced. For a stereo pair, cup your hands behind both ears.

What cardioid means?

Definition of cardioid : a heart-shaped curve that is traced by a point on the circumference of a circle rolling completely around an equal fixed circle and has an equation in one of the forms ρ = a(1 ± cos θ) or ρ = a(1 ± sin θ) in polar coordinates.

Is a cardioid mic a condenser?

The two are not mutually exclusive, because condenser microphones are also cardioid. Dynamic mics are cardioid too! The main takeaway is this: cardioid is a polar pattern, while condenser is a type of microphone.

What microphone does Drake use?

Singers, Rappers Drake has been reported using Neumann TLM 103 Condenser Microphone (Condenser Microphones).

Can both condenser and dynamic microphones have a cardioid polar pattern?

Most dynamic microphones will usually have either a cardioid or super cardioid, whereas condensers can have pretty much any pattern, and some may even a switch that can change polar patterns!

Article first time published on

What is the cardioid symbol?

The cardioid pattern is symbolised by a heart like shape with the point of the heart representing the front of the microphone. A Cardioid pattern picks up sound mostly from the front, a little from the sides and virtually nothing from the rear.

How does a cardioid condenser microphone work?

Cardioid mics primarily are sensitive to sound on one side or end of the microphone—that is, they are unidirectional—and reject sound from the sides and rear of the mic. Other polar patterns found in condenser microphones are: Hypercardioid.

What is a shotgun mic?

A type of microphone characterized by an extremely directional polar pattern. Shotgun mics may be condenser or dynamic, but are almost always built with a long (8 to 24 inch) tube protruding from the front.

What is cardioid pickup?

A cardioid pickup pattern is a highly flexible pickup pattern that is great for all-purpose use. … A cardioid mic, while slightly directional, should not be confused with a hypercardioid or supercardioid mic. Cardioid mics will still pickup background noise if they are not in a controlled environment.

What is a half cardioid polar pattern?

Half-cardioid Polar Pattern This boundary microphone has a cardioid polar pattern in the hemisphere above the mounting surface. Keep sound sources within a 60° range above this surface.

What polar pattern is best for acoustic guitar?

When using one microphone, a cardioid polar pattern generally yields the best result by allowing for a combination of sound from the guitar’s soundhole and fretboard.

What makes a cardioid?

A cardioid is a mathematical shape that resembles a heart or the cross section of an apple cut in half. A cardioid shape can be created by following the path of a point on a circle as the circle rolls around another fixed circle, with both of the circles having the same radius. … r = a ± cosθ is a horizontal cardioid.

How do you trace cardioid?

Imagine if you had a circle of a given radius and you rotate another circle of equal radius around it. Fix a point on the rolling circle and trace that point’s path as the circle rolls around the circumference of the stationary one. The path that point traces is a cardioid.

What is the difference between a cardioid and a Limacon?

When the value of a is less than the value of b, the graph is a limacon with and inner loop. When the value of a is greater than the value of b, the graph is a dimpled limacon. … When the value of a equals the value of b, the graph is a special case of the limacon. It is called a cardioid.

Is a cardioid mic omnidirectional or unidirectional?

That means whether you stand in front, behind, or to the sides of the mic, the sound it picks up will mostly be the same. In contrast, a cardioid mic, a type of unidirectional mic, is most sensitive to sounds more-or-less in front of it. That’s at 0° on the circle.

What are polar patterns in microphones?

Polar patterns refer to the sensitivity of any given microphone to sounds arriving from different angles, to its central axis. As we can see, the shape of the polar pattern touches the outermost circle at zero degrees, falling below -5 dB at the 90 and 270 decibel points.

What mic does Kendrick Lamar use?

“I mostly use our Stephen Paul-modified Telefunken U47 to record Kendrick, going through a Neve 1073 mic pre and then a Tube-Tech CL1B compressor, which gives a great, fat, warm vocal sound, especially in conjunction with the U47. Sometimes I’ll run his vocals through a Pultec EQP-1A3.

What microphone does Lil Wayne use?

If you want a dry Lil Wayne or Drake style vocal the Rode NT1A is a good budget microphone. But again it really depends on your voice and recording technique. This mic is great for getting good clarity however it can make the vocals too bright. Lil Wayne apparently uses this mic.

What microphone does Jay Z use?

Neumann U 87 Z at Roc The Mic, Young Guru relates, “My signal chain is normally a Neumann 87 or 67 going into an Avalon 737.

Which is better condenser or cardioid mic?

The cardioid mic is directional and is good at rejecting noise from behind. However, it can often be quite sensitive to plosives! … (For the curious, dynamic microphones rely on the movement of a coil around a magnet to turn sound into an audio signal, while condenser microphones use a capacitor.)

Do cardioid mics need phantom power?

Nope. Not only do dynamic mics not need phantom power, they don’t need any power to work.

What type of microphone is best for vocals?

In my experience, and most musicians and sound engineers’ experience, the best microphone type for live vocals is a cardioid dynamic microphone. It’s preferred if this microphone also has a boost in the presence range of its frequency response as well as a low and high-end roll-off.

Which polar pattern is best for vocals?

The most commonly used polar pattern for recording vocals is cardioid, which is more sensitive to sound arriving from the front of the mic than the back. Cardioid mics have the advantage of reducing ambient noise; however, they will also colour the sound more than an omni-directional design.

Is a condenser mic better for vocals?

Condenser microphones are best used to capture vocals and high frequencies. … While condenser mics are great for capturing acoustic guitars, drum overheads, or vocals, they don’t often work well for louder sounds such as guitar or bass amplifiers. For purposes like these, dynamic microphones can be a better option.

Which is better dynamic or condenser microphone?

The difference between a dynamic and a condenser microphone is a dynamic microphone is better for capturing loud, strong sounds (drums or loud vocals), particularly in a live setting, whereas a condenser microphone is used to capture more delicate sounds and higher frequencies (studio vocals for example), particularly …

What is the usual polar pattern of a lavalier mic?

Omnidirectional. The first pattern is omnidirectional. This means that sound is being picked up equally right around the mic. Omnidirectional polar patterns are usually the default setting in lavalier mics because of the way they pin to the clothing and aren’t directly in front of the mouth.
