What is vinyl Undersill used for

The undersill trim is installed behind the window casing, i.e., underneath a window to support the siding panel. The beveled vinyl siding may protrude slightly from the wall; an undersill can help round off and lock the hanging siding. The undersill also helps to direct water out and away from the siding when it rains.

Where is vinyl Undersill trim used?

The undersill trim is installed under every window above the ground line. It conceals the top edge of the vinyl siding and is also used at the soffit line.

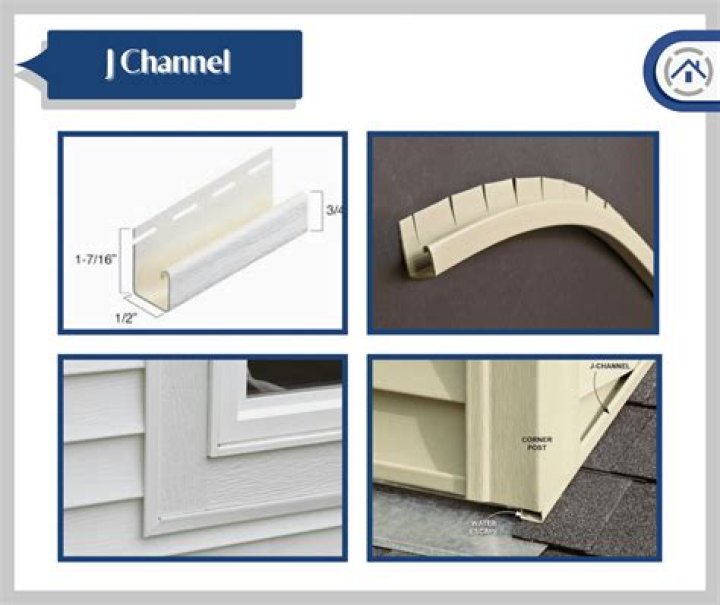

What is J channel used for?

J channel is often used for corners and edges, and around openings like windows and doors. Not only does the J channel seal off the siding, but it also helps hold the pieces of siding together. The siding is inserted into the folded J channel. Without J channel trim in place, the siding would look messy and slipshod.

Is Undersill trim same as finish trim?

Utility Trim: a piece of trim used any time the top lock has been removed from the siding, to secure a siding panel. Also referred to as “undersill” or “finish” trim; double utility trim is also available.

How do you keep vinyl siding straight?

Select galvanized roofing nails to hold the siding firmly in place and to stand up to weather properly after the siding is installed. Make sure that they’re are at least two inches in length, but use longer nails if the siding is going over top of rigid foam instead of right up against sheathing.

Can you put siding on top of siding?

It is possible to install vinyl siding over an existing siding as long as the siding below is fastened tightly and is still in good condition.

What nails do you use for vinyl siding?

Use aluminum, galvanized steel, or other corrosion-resistant nails, staples, or screws when installing vinyl siding. Aluminum trim pieces require aluminum or stainless steel fasteners. All fasteners must be able to penetrate a minimum of 1 1/4” (32mm) into nailable material, such as wood sheathing and framing (Fig.

Do you nail vinyl J-Channel tight?

Windows and Doors Nail it to the wall, but remember not to nail it tightly. Leave at least one-sixteenth of an inch between the nail head and the vinyl to allow for expansion and contraction and to prevent dimpling. … For the doors, cut your side J-channel pieces similar to the way you did for the windows.

What is an Undersill?

The Undersill Trim is installed under every window above the groundline. Conceals the top edge of the vinyl siding. Also used at the soffit line. Used to secure cut siding pieces on top of walls Installed into J_trim.

Should you caulk around J-channel?

TOM: Nah, it’s not necessary. It should be watertight the way – if the installers put it in correctly, it should be watertight as it is. If they need – if it needed to be caulked, they would have done that. … And you generally don’t have to caulk between the back of the J-channel and the side of the window.

Article first time published on

Can you replace J-channel without removing siding?

Install J-Channel Without Removing Siding To do avoid removing your siding, you’ll trim the old J-channel off, trim the punctured edges off your new pieces and place it over the top edge. … Don’t worry, you won’t need these punctured edges the way you’re installing this J-channel with existing siding.

What is vinyl siding J-channel?

J-Channels The bottom curves around, hiding the end of a piece of vinyl siding. J-channels typically are used to hide the ends of siding as it butts up against windows, doors or similar objects.

Should I put foam board behind my vinyl siding?

Basically, in order to get a good insulation value out of foam board, it has to installed directly on the sheathing of the house. … Basically, if you want extra R-value for your walls but do not want to tear off your siding, don’t bother with the foam board.

What is behind vinyl siding?

Underlayment Underlayment or weather resistive barrier (WRB) is installed between the siding and the sheathing. This can be tar paper or a house wrap such as HardieWrap® or Tyvek HomeWrap®. HardieWrap® is great for keeping water out and at the same time letting water vapor escape from the house.

Does Undersill trim go inside J-channel?

J-channel receives the ends of siding panels where they abut windows, doors or other walls. … Where soffit panels meet the wall of the house, they are supported by J-channel, undersill trim or window casing.

How long does vinyl siding last?

According to Siding Authority, vinyl siding can last anywhere from 20 to 40 years. Some other types of siding can last as long with proper maintenance, but comparatively, vinyl siding generally needs the least amount of maintenance to remain in top condition for 20 years or more.

Can you paint vinyl siding?

Can Vinyl Siding be Painted? Yes: You can paint vinyl siding. Painting your vinyl siding is not only less expensive than replacing it, selecting paint for vinyl siding with our Colors for Vinyl palette gives you the creative freedom that comes with choosing a fresh color scheme for an entirely new look.

How much does vinyl siding cost installed?

On average, installing vinyl siding around a home costs $9,324, with most homeowners paying between $4,999 and $16,836 or between $2.50 and $10.75 per square foot. Low-end vinyl siding projects cost an average of $3,060, while extensive vinyl siding projects average around $22,133.

How do you stagger vinyl siding?

Stagger the siding end laps so that no two courses (rows of panels) are aligned vertically, unless separated by at least three courses. Always overlap joints away from entrances and/or away from the point of greatest traffic. This will improve the overall appearance of the installation (Fig. 37).

How long should vinyl siding nails be?

Choose the Right Nails The nails should measure at least 1-3/4 inches in length, long enough to penetrate into the nailable base at least 3/4 inch.

Is vinyl siding nailed?

Vinyl siding tends to expand and contract considerably with temperature changes. For this reason, manufacturers design it to hang loosely on the nails rather than to be tightly nailed like wood siding.

Why is my vinyl siding buckling?

Usually, the siding was nailed too tightly. Vinyl siding expands significantly as it’s heated. That’s why it has oval-shaped nailing slots that allow it to slide back and forth under the nailhead. Nail it too tightly and you prevent this movement—and cause buckling.

Can you put vinyl siding over rotted wood?

And this is, do you have to replace rotted wood before installing vinyl siding? And the short answer is, yes you do. … And basically what they do is, they seal the window from the siding, allowing the water to just flow around the window and out.

Can you put vinyl siding over old wood siding?

You can only install vinyl over wood siding if the wood is in good condition, without rot or mold. … If there isn’t a moisture barrier beneath the old wood siding, you’ll want to install one over it before you add the new vinyl siding. Window and door frames may need to be adjusted to match the new thickness of the wall.

What is the best type of siding?

Siding TypeOptionsDurabilityVinylExcellent20-30 yearsAluminum & SteelGood30-50 yearsFiber Cement & CompositeGood35-50 yearsWoodExcellent50+

What is F channel used for in vinyl siding?

F-channel is used to hold the soffit onto your house. Soffit is the vinyl siding that makes a ceiling under an overhang. The F-channel is a thin vinyl strip that is sold where siding is sold. The upside down F creates a shelf for the soffit to slide into and rest on.

How long is J channel for vinyl siding?

Most vinyl siding manufacturers make two or three sizes of J-channel. For vertical siding, these channels typically have openings of 3/8 inch to 1/2 inch to receive siding panels and soffit materials. For horizontal siding, J-channels with openings of 3/4 inch to 1 inch are commonly used.

How do you fill the gap between foundation and siding?

Seal small cracks and gaps in your siding, under 1/4 inch wide, using an acrylic latex caulk. Simply apply this inexpensive into the cracks to seal. Paint works well over it.

How are the corners of a vinyl window sealed?

Seal the top corners of the window with a 1/4″ bead of sealant. … Seal the ends with self-sealing flashing or building wrap tape. 3. Ensure weep holes/ channels are clear of debris for proper water drainage; do not seal weep holes/channels if present.

How do you seal vinyl siding around a window?

1. Remove any loose dirt or debris from the seams of the window frame to prepare it for sealing. …
2. Use a pair of sharp scissors or a utility knife to cut a small bit of the nozzle on a tube of butyl caulk.

What can I use instead of J channel?

J-channel is still available, but the better choice would be a flat trim board that surrounds windows and doors. These flat boards come with a rabbited edge that creates a hidden recess for the siding to slide behind. It works the same way the older J-channel works, but it’s much better looking.
