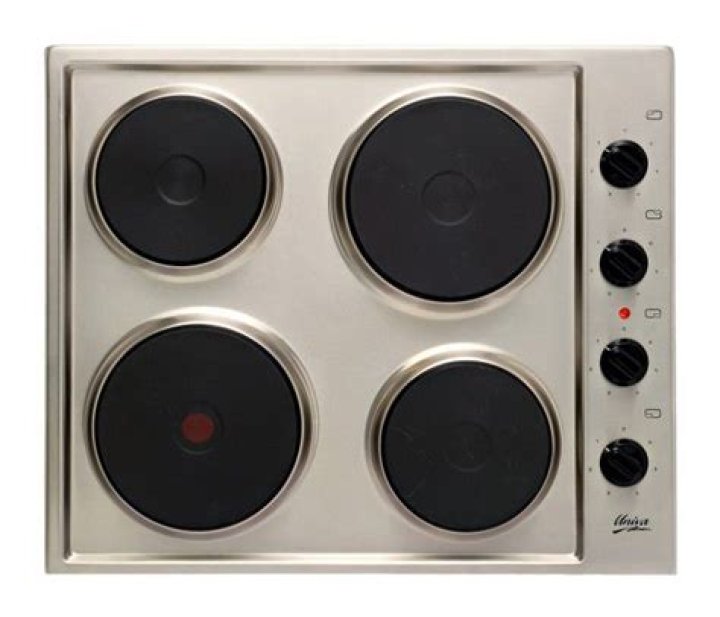

How do you test a stove plate

Touch one probe to the surface of the burner element and the other probe to one of the terminals. Then, touch the probe to the other terminal (keeping the one touching the surface in place). If your tester detects continuity either time, then the burner element is grounded to itself, which causes it to short out.

How do you test a solid stove plate?

Test for element continuity by touching one test lead to each of the two terminals. Depending on the manufacturer and the size and wattage of the element used, the reading should be between 19 and 115 ohms. If there is no continuity, the element should be replaced.

How many ohms should a stove element have?

There should be continuity, with readings ranging from 19 to 115 ohms. Readings will vary from manufacturer to manufacturer and according to unit size and the wattage. Be sure to check your manual for the manufacturer’s specifications.

How do I know if my stove element is bad?

1. The Element Isn’t Bright Orange. …
2. The Element Has Signs of Wear. …
3. Food Isn’t Cooked or Is Partially Cooked. …
4. The Oven Is Dirty. …
5. Your Electric Bill Has Noticeably Increased.

How do you troubleshoot an electric stove?

1. Check for a blown fuse or tripped circuit breaker.
2. Test the electric outlet for current.
3. Make sure the power cord is plugged in securely.
4. Inspect the connections to the terminal block.
5. Test the power cord.
6. Eliminate use of an extension cord, if any is being used.
7. Check the outlet voltage.

Why is my stove not getting hot?

An oven that won’t heat is usually the result of a faulty igniter (for a gas oven) or heating element (for an electric oven). If both your gas oven and your gas burners have stopped working, the problem is most likely with the gas line, and will require professional repair.

What causes a stove plate to trip?

Your breaker might be tripping because your stove has damaged wiring, a bad terminal block, or one or more problematic burner switches. It’s also possible that your stove is fine but your breaker is undersized to work well with that particular model or just weak and requires replacement.

What happens when oven heating element goes bad?

The upper heating element should be bright orange if it is working correctly. If the upper heating element is not bright orange, it needs replaced. If parts of the heating elements are turning orange and other parts are not, the heating element is damaged and needs to be replaced.

How do you test a heating element with a multimeter?

Touch one of the multimeter probes to the loosened screw. Touch the other probe to the other screw attached to the face of the heating element. If the heating element is functioning properly, the multimeter should read between 10 and 30 ohms.

What is the resistance of a stove?

In case you’re curious, a large cooktop surface burner is usually in the area of 27 ohms, a small 45 ohms. A bake or broil oven element’s resistance may be in the area of 20 to 40 ohms depending on its wattage.

Article first time published on

Should oven element glow red?

After a preheating period on the broil setting, the coil should glow bright orange or red. If you notice patches that are not glowing or are glowing a different color, this is a good sign that you will need to replace your broil element.

Can stove plates be replaced?

Whether you’re dealing with a stove with a fitted hob or a freestanding hob, the process of replacing the burner is the same. Replacing a broken hob plate isn’t difficult, and you can buy appliance spares for a wide range of stove models.

How does a stove plate switch work?

It uses a bi-metallic strip conductive connection across terminals that disconnects with increased temperature. As current passes through the bimetal connection, it will heat and deform, breaking the connection and turning off the power. After a short time, the bimetal will cool and reconnect.

How do you clean a stove plate?

Use a damp emery cloth and gently rub the plates in circular motion. This will help you achieve a more thorough clean. Mix 2 table spoons of baking soda with 1/2 cup of vinegar into a bowl. Use to a toothbrush to evenly distribute the mixture onto the affected areas and gently scrub until the rust is gone.

How many ohms is a stove burner?

Typical burner readings should be somewhere between 19 and 115 ohms, depending on the range manufacturer. If there is no continuity, the burner is defective.

Why is my stove working but not my oven?

In most common cases, this specific issue means that the broil element and the baking element remain functional. However, there’s probably a blown internal fuse. If it’s not the fuse, it could be the temperature sensor, broken or frayed wiring, or even a breakdown of the oven control board.

Where is electric stove fuse?

Look for a removable panel, usually near the stove controls or near where the power comes in. Most ranges use plug fuses, the type found in old electrical panels. They have a threaded base, like a light bulb, and a flat, glass top marked with an amperage rating.

Why is my stove tripping the earth leakage?

Originally designed to be an insulator, this powder has now become a conductor. Now with a conductance between the heating coil and the rest of the oven through the heating element, the oven will trip every time it is switched on. This is called an earth leakage trip.

How do I stop my appliances from tripping the breaker?

Circuit overload is one of the most common reasons for circuit breakers tripping, and you can prevent it from happening by running fewer appliances at the same time on that circuit. The best long-term solution, however, is to have an electrician update your home’s wiring to add additional circuits.

Should a stove be on its own breaker?

Appliances drawing enough power to require their own circuit include ovens, stoves, dryers, washing machines, dishwashers and hot tubs. Some garbage disposals, space heaters, microwaves, refrigerators, freezers and garbage disposals also might require enough wattage to demand separate circuits.

How do you reset a stove?

Turn the circuit breaker to the OFF position or remove the fuse. Wait one minute, then turn the circuit breaker back to the ON position or install the fuse to reset power to the unit. This should reset the electronic controls on the range or wall oven.

How do you test an oven switch?

Set the infinite switch on high and place your ohmmeter on the L2, H2, P and H1 terminals to check for continuity. If there is no continuity between L1 and H1 or between L2 and H2, the infinite switch is defective. If there is no continuity between P and H1, the indicator light circuit is defective.

How do you test a ceramic heating element?

Use the ohm or continuity setting on your multimeter to check the heater elements for continuity. The needle should move across the face or a digital meter should read low ohms (less than 10) or beep. These indicate a good element.

How do you test a 240v heating element?

Use a multimeter to find resistance. Set the multi-meter to the resistance setting with an appropriate measuring scale selected. Measure the resistance by disconnecting the heating element from any power source, and connecting the multimeter leads to the terminals of the heating element.

Are stove infinite switches the same?

They do work the same way as they would in a coil style top, which is your more affordable brand. Which will be that coil, Calrod, that you’ll have there or you’re going to have your radiant style, which is underneath the glass top. So same infinite switches for them. They work the same way.
