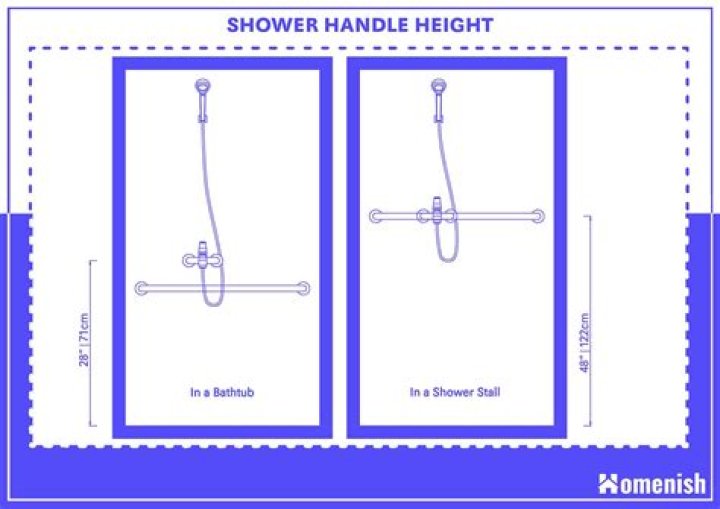

What height should shower controls be

The ideal height range for the shower controls is between 40 to 50 inches above the floor. You can lower the controls slightly if you’re constructing a seated shower.

What height should a shower mixer bar be?

Shower controls should be placed at a height 40”-50” (102-127 cm) above the shower floor and out of direct line of the water path to avoid being caught in extremely cold or hot water when operating. For safety, horizontal shower grab bars should be installed 33”-36” (84-91 cm) above the floor.

Where should shower controls be placed?

Shower controls should be placed 38 inches to 48 inches off the floor, according to NKBA Bathroom Planning Guidelines. Offsetting the controls toward the front of the shower will make them accessible both inside and outside the water spray.

How far out should a shower valve be installed?

Your goal is to center the shower valve between studs 12 inches apart. A little mark at the midpoint of the plates, in line with where you expect the faucet and shower valve to be, helps for the next stage of this project. Next, mark 6 inches on either side of the midpoint.

What height should a rain shower head be installed?

Wall Or Ceiling Installation When installing, most rainshower heads are installed a little higher than standard showerheads at 80 inches to 84 inches from the shower floor. However, installing the rainshower head about 84 inches from the shower floor is recommended to accommodate taller users.

Do I need a rough-in valve?

A Rough Valve is a REQUIRED PART OF EVERY SHOWER. … Regardless of the shower trim kit style, the valve fixture basically does the same thing. It mixes hot and cold water to create warm water suitable for your shower. Most shower rough-in valves have 4 ports.

How far should a rain shower head be from the wall?

Answer: The best size for a rain shower head is 12 inches. This allows enough water to pour out without creating a flood.

What type of shower valve do I have?

Check behind the shower handle at the center of the trim plate to find the manufacturer symbol or brand name. “K” is for Kohler, “M” for Moen while Price Pfister, Delta and American Standard have their full names on the faucet.

How thick should walls with plumbing be?

The standard thickness for plumbing walls is 6 inches. With plastic pipes, you can get away with the walls being 4 inches thick instead. The thickness of the plumbing wall does depend on the types of pipes in your home. Metal pipes, which are very common pipes to find in older homes, are larger in size.

How do you install a shower mixer diverter?

Wet the faceplate body and diverter seal. Slide plate onto mixer body and position with notch in plate towards the bottom. Push handle on to cartridge pin, tighten grub screw firmly with hex key provided and cap the grub screw hole with the chrome cover. IMPORTANT: Before you begin, turn off the water supply.

Article first time published on

Does shower head need to be centered?

If your shower head isn‘t centered, the water could drench your entire bathroom floor space. And if you mount the shower head more towards a window or the wall, you would barely be underneath the water, making it a very unsatisfactory shower.

Where should a rain shower head be placed?

2. Be wise about the placement of your rain shower head. This comes down to personal preference, but a rain shower head tends to be ceiling mounted and the direction of spray can cover a large area. This means, a person standing in the shower will be directly under the flow of water, the whole time they shower.

Are rainfall shower heads good?

A rain shower head will sprinkle low-pressure water down directly on top of your head, giving the feeling of showering in a gentle rain. A regular shower head will provide a much higher-pressure stream with multiple spray pattern options.

Can I use a tub and shower valve for shower only?

Although it is easier and more cost effective to use a fixture designed with only a shower head control, you can use a tub and shower faucet in a shower-only installation. Most tub and shower combination faucets can be installed in a shower without using the tub spout.

Are there shut off valves for showers?

Shower/Bathtub – Some shower or bathtub shutoff valves may be underneath the sink, but if they’re not, check in the basement (if you have one) directly below the bathroom.

What is a rough in valve for a shower?

The rough-in valve is the heart of system. This is the part of your shower system, in-wall faucet or deck mounted tub filler that lives behind the wall, precisely controlling water temperature and volume.

Do plumbing walls need to be 2x6?

All plumbing walls shall be 2 x 6 studs (minimum) in single family dwellings and townhouses. … It shall be the plumber’s responsibility to notify the general contractor when 2 x 6 walls are not provided for plumbing, and to have the proper framing installed before proceeding on any further work.

How thick should a bathroom wall be?

Most construction of bathroom walls around the shower or tub area is based on 2×4 studs so total wall thickness may well reach 5 inch thick total, at least the walls that contain waste and water supply pipes.

How thick do bathroom walls need to be?

A two-by-four wall stud is 3 ½ inches wide, and an interior wall typically has ½-inch drywall installed on both sides, bringing the wall thickness to 4 ½ inches. Walls that contain plumbing, such as walls behind sinks, however, should be thicker than standard walls.

What is a 4 way shower diverter?

This Thermostatic Valve has a four-way diverter that gives you the perfect setup to switch between an overhead shower, hand shower, tub spout, or other enhancements you have installed in your bathroom. … The valve included with this system can be arranged to run two spray functions simultaneously.

What side is the hot on a mixer shower?

Check the instructions that are included with the valve and feed the hot and cold supplies to the correct sides – hot is on the left and cold is on the right.

What is 3 way diverter?

The three-way diverter allows you to alternate between any of your selected shower outputs by directing the water from the shower head to each additional accessory, one at a time. The diverter will not adjust the water temperature or turn the water off or on.

Are shower mixers standard size?

5 Answers from MyBuilder Plumbers Most mixer showers should be 150mm centres, but if you measure your existing outlets centre to centre you will know if the new mixer is compatible.
