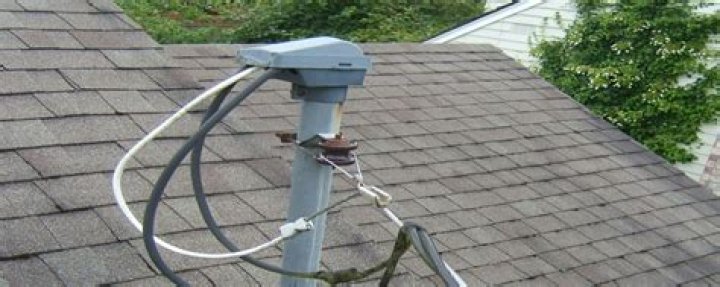

What is an electrical Weatherhead

A weatherhead is sometimes called a weather cap, a service head, or a service entrance cap. … Together, they provide protection from rain and rough weather. Because this is the point where electrical power coming from the overhead cables and telephone lines connect into your home, it has to be installed correctly.

What does a electrical weatherhead do?

A weatherhead is sometimes called a weather cap, a service head, or a service entrance cap. … Together, they provide protection from rain and rough weather. Because this is the point where electrical power coming from the overhead cables and telephone lines connect into your home, it has to be installed correctly.

What does an electrical weatherhead look like?

Simply put, an electrical weatherhead is a rounded cap, meant to keep the water out of the pipes. … Shaped like a hood, the weatherhead is facing down at an angle of at least 45°. It also has a rubberized gasket to ensure a tight seal.

How much does it cost to replace weatherhead?

That means repair costs are left up to the property owner and could range from $700 to $1700.

Is a weatherhead required?

Weatherheads are required by electrical codes or building codes. They are also used on utility poles where overhead power lines enter a conduit to pass underground.

Where is weatherhead located?

The point where the service drop wires connect to the service entrance conductors inside the vertical mast is known as the service point, and it usually represents the point of official transfer between the utility provider and the utility customer.

How high does a weatherhead have to be?

The top of the weatherhead shall be a minimum of twenty-four inches (24″) above the roof. If additional riser height is needed for service conductor clearance as required by applicable electrical codes, the riser shall be rigidly braced or guyed from a point within eight inches (8″) of the weatherhead.

Can I touch the power line going to my house?

Misconception #2: Power lines are insulated, so they’re safe to touch. This is a common misconception that many people have about power lines. Power lines are not insulated and you should always avoid contact with them. It is quite possible for people to get electrocuted if you touch power lines.

Who replaces meter boxes?

Gas meter boxes can either be installed by the property owner or the supplier. Once installed the meter box is under the responsibility of the property owner for its maintenance.” Electric meter boxes: Similar to gas meter boxes, electric meter box maintenance falls under the responsibility of the homeowner.

How much is an electrical mast?

Electrical meter risers cost an average of $15 to $40 per linear foot. The standard length of a riser is two feet, making the cost per riser about $30 to $80.

Article first time published on

What are the 3 wires from pole to house?

The service drop leads from the utility pole lines to a home. It is made up of three conductor wires. Two of them are insulated wires that carry electricity from the transformer; the third is a bare neutral wire that connects to the grounding wire. These lines have a voltage of 120 to 240 volts.

Who is responsible for the wire from pole to house?

The customer/owner is responsible for installing, maintaining and repairing all equipment beyond theservice connection point except for the electric meter. If you receive overhead electric service, your electric system con- sists of the following: 1. Electric Lines that run from the utility pole to your residence.

Who is responsible for the weather head?

3. Weatherhead and Service Entrance Cable – You are responsible for the weatherhead and the wire that runs along the outside of your home into the meter, as well as from the meter to your service panel or fuse box. The weatherhead protects the service entrance cable from weather conditions..

What is an electrical mast made of?

The typical service mast consists of 2-inch rigid metal conduit. Sometimes you’ll see a through-the-roof service mast that appears to be leaning from tension in the overhead service drop conductors. This can be repaired by adding a brace, tie back or guy-wire supports.

Can you touch a service drop?

Never attempt to move or handle a service drop. In the event of a downed power line resulting from high winds, falling trees, etc., call DTE to have the line de-energized and safely restrung.

What is the purpose of a porcelain standoff fitting?

Porcelain standoff insulators are important components in various electrical applications and are used to isolate power sources from making contact with conductive surfaces. Typically, porcelain insulators are used to support copper and/or aluminum bus bar in switchboards, motor control centers and panel boards.

Does the weatherhead have to be above the roof?

You’d either have to extend the weather head up, to keep the conductors 8 ft. above the roof. Or move the weather head, so that the conductors do not have to overhang the roof by more than 6 ft..

Does the weatherhead have to be above the point of attachment?

According to 230.26, the point of attachment for service-drop conductors must not be less than 10 ft above the finished grade and must be located so the minimum service conductor clearance required by 230.9 and 230.24 can be maintained.

How high does a weatherhead have to be off the ground?

OVERALL LENGTH OF POLE SHOULD BE 20′ WITH 4′ IN GROUND, LEAVING A 16′ CLEARANCE FROM GROUND TO TOP OF POLE.

What is electrical connection to house called?

The common type of home electrical wiring is non-metallic, or NM, cable. You may also know it as Romex cable, which is the most popular brand name of this type of electrical wiring.

What is underground electrical service?

Underground service cables are connected to the utility company’s pole and are fed down a pipe into the ground. Then, they run horizontally through a bored hole in the ground and up into a ground-based transformer. The primary connection to the transformer is called the line connection.

What is an electric drop?

An electric service drop is the bundle of electrical cables (or three individual wires, in older installations) that run from the electric utility company’s power pole to the connection at your house.

Who owns the electric meter in my house?

Who owns the electric meter? Your utility owns the meter on your house. They are responsible for installing, maintaining, and reading your meter. Your meter is sealed and tampering with it is a prosecutable crime (not to mention highly dangerous).

Who owns the gas meter in my house?

Gas meter boxes can be installed by the homeowner before the supplier installs the supply, or the gas supplier might install the meter box through some agreement with the consumer. However, once the meter box is installed it appears that the consumer (usually the property owner) is responsible for its maintenance.

How can I hide my gas meter?

Use Tall Plants Install plants in front of the gas meter, leaving about 4 feet between the plants and the meter. Pick plants that grow tall enough to hide the meter completely but are simple to trim. Keep the back of the plants pruned so the plants don’t encroach the 4-foot open space.

Can a human sit on a power line?

Yes, but getting on and off will be hard if you don’t fly. As long as you are not grounded, you can touch the wire with no harm, but if you are grounded the current will run through you and most likely you would not survive.

Why do birds not get electrocuted?

Birds can sit on power lines and not get electric shocks because the electricity is always looking for a way to get to the ground. The birds are not touching the ground or anything in contact with the ground, so the electricity will stay in the power line.

Why do squirrels not get shocked on power lines?

Then why don’t they get shocked every time they run on a wire? It’s because the electricity would not get from one end of the wire to the other any faster by traveling through the squirrel; that would be a diversion from its path.

What is the recommended height of a meter socket from the ground?

The National Electric Code doesn’t specify minimum, ideal and maximum height for electrical meter boxes, but the utility company does. The center of the meter box should be between four and six feet above the ground according to most utility companies.

What size wire do I need for a 200 amp service?

Installation of 200 amp electrical service needs a #2/0 AWG copper wire or #4/0 AWG for aluminum or copper-clad wire inside a 3″ conduit. Wiring a 200 amp electrical service is not a DIY job. It often requires a permit and professional installation by a qualified electrician following local electrical codes.

What are the black boxes on telephone lines?

Black boxes were devices which, when attached to home phones, allowed all incoming calls to be received without charge to the caller. The black box (as distinguished from blue boxes and red boxes) was a small electronic circuit, usually a resistor or zener diode in series with the line.
