What thread size are brake lines

Get a standard American 3/8′ fine thread bolt or a standard American 3/16″ brake line; this will have a 3/8″ x 24 unf thread nuts on it. You will use the bolt (or nut) for your gauge.

What size are standard brake line fittings?

The two most common brake lines found are 3/16″/4.75mm and 1/4″. The smaller size is 3/16″/4.75mm brake line, CNF-3; and the larger size is 1/4″, CNF-4. 3/16″ is found on virtually all cars and trucks made in the world.

What is the most common brake line size?

Brake lines are most often 3/16- or 1/4-inch diameter and, while there will be no pressure difference between the two, there will be a difference in the amount of fluid delivered.

Are brake line fittings NPT?

National Pipe Thread is a tapered machine thread for threaded pipes and fittings . NPT threads can be referred to as “Male pipe thread” or “Female pipe thread”. … We use these in the Street Rod and Racing industries for fluid fittings such as oil lines, brake lines, and coolant lines.

Are brake lines metric or standard?

Premium Member. There are two issues. Rigid brake lines – 4.75mm is the stock size. Brake line fittings – Yes, you need metric.

What size nut is on a 3/16 brake line?

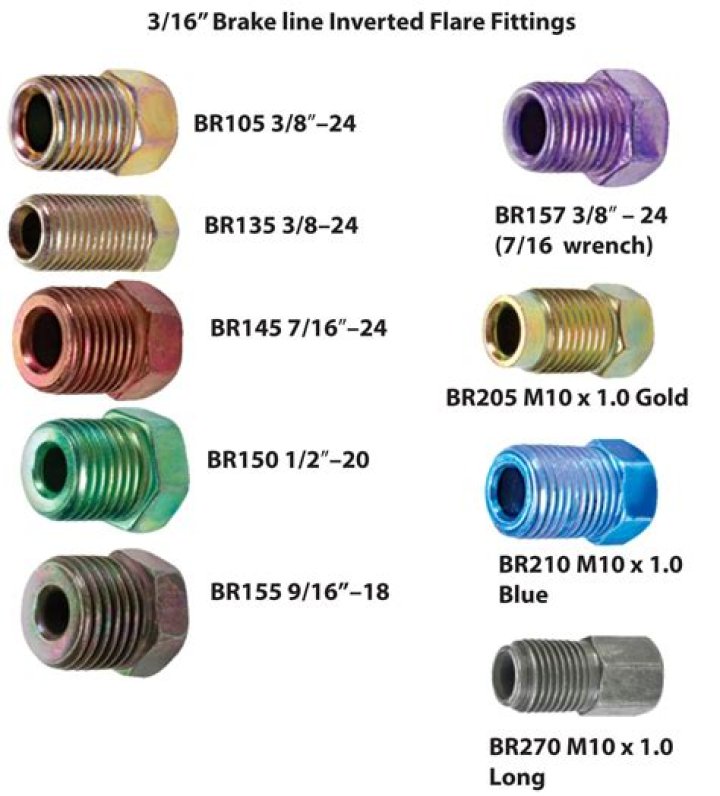

3/16″/4.75mm American Thread brake line nuts and fittings.

How do you measure brake line threads?

First, use calipers to measure the thread diameter. The male threads will be slightly smaller than the nominal size, and the female threads will be slightly larger than their nominal size. Next, measure the pitch. For imperial sizes, count the number of crests within a ½” section and multiply it by two to get TPI.

What size is brake line nut?

Brake line wrenches (often called flare nut wrenches or simply line wrenches) serve a specific purpose in a mechanic’s toolbox. Several styles exist, but determining which brake line wrench is right for my vehicle isn’t really that hard. Most domestic cars use a 7/16-in.size, while imports typically use a 10 mm.

Is it OK to use Teflon tape on brake line fittings?

You cannot safely, nor should you attempt to use Teflon tape on brake lines. A brake system should not rely on anything to stop a leak. The system relies on pushing a solvent under high pressure in a closed system for safe operation, and Teflon tape will threaten the integrity of that system.

Can you use an fittings on brake lines?

Because your brake system creates a substantial amount of pressure, the compression fittings are prone to failure. … You cannot, under any circumstances, use compression fittings to repair the lines on a public transportation vehicle. Many states have banned the use of this repair on passenger vehicles, too.

Article first time published on

Do brake lines need to be double flared?

All brake lines need to be double flared, due to the high hydraulic pressure. If your brakes leak or the hoses crack, it could prove to be fatal. Single flared lines are suitable for low-pressure lines in other applications, but not your vehicle’s brakes.

Are 3/16 and 4.75 brake lines the same?

The two most common brake lines found are 3/16″/4.75mm and 1/4″. The smaller size is 3/16″/4.75mm brake line, CNF-3; and the larger size is 1/4″, CNF-4. 3/16″ is found on virtually all cars and trucks made in the world.

What size nut is on 1/4 brake line?

For 1/4″ line there are only two sizes of m/c nuts, 1/2″ x 20 unf and 9/16″ x 18 unf. It’s becoming common practice to upgrade the brakes on older cars.

What size brake line is on a Chevy s10?

The size of the Chevy S-10 brake line iS3/8″ and 3/16″.

How tight should brake line fittings be?

As a general rule from finger tight, continue tightening the nut until you feel it draw down tight, then tighten approximately 1/6″ turn more. Do not over-tighten.

What size is VW brake line?

The hard lines all feature 10×1. 00mm threaded fittings and are roughly 4.5mm in outer diameter. The fittings secure the double bubble European flared ends to master cylinders, brake hoses, unions, wheel cylinders or brake calipers. Brake lines are held to the chassis at junction points with Brake Line Clips.

What are the different types of brake line flares?

There are two basic types of flares used on OEM automotive brake systems throughout the world. The SAE/double (inverted/45degree) flare and the DIN/ISO bubble flare. We will refer to them as SAE or DIN flare. The most common is the SAE flare.

What is an inverted flare fitting?

Inverted Flare Hydraulic Fittings are widely used in hydraulic brake, power steering, fuel lines and transmission cooler lines. Inverted flare fittings are inexpensive and reusable. Inverted flare provides excellent vibration resistance. Seats and threads are internal and protected.

What is the difference between double flare and bubble flare?

Just like the double flare, the bubble flare may also be called something else such as DIN or ISO. When creating a bubble flare, you have one less step. When someone is making a double flare, they actually start out by making a bubble flare before that.

How do you seal brake line fittings?

Unscrew the brake line from the fitting.
Clamp the appropriate-sized collet around the line.
Connect it to the Surseat lapping tool.
Spray some lubricant to the lapping head before using it.
Rotate the lapping head back and forth about 6-10 times.
Clean and inspect the flare.

Can you use Loctite on brake lines?

Registered. You never use any type of sealant on brake lines, also the only lubricant you should use during assembly of the brake threads is brake fluid itself.

Are brake line unions safe?

What you can’t do is use compression fittings or single flare plumbing unions to make a brake line splice. That’s not only bad practice, it’s just not safe. … in your home’s plumbing system, but a single flare can crack and leak at braking pressures up to 2,000-psi.

What are flare nut wrenches for?

Obviously, flare-nut wrenches are best for tightening or loosening hexagonal nuts and fittings. This makes them versatile and useful, especially for working on cars or plumbing. The most popular industry to use flare-nut wrenches is the automobile industry.

Can you use aluminum fittings on brake lines?

Generally, it is recommended to only use steel fittings for brake applications. It is possible that someone makes aluminum fittings that will work for brake applications, but I’d check with the manufacturer before ordering.

What size fits a 3/8 brake line?

Get a standard American 3/8′ fine thread bolt or a standard American 3/16″ brake line; this will have a 3/8″ x 24 unf thread nuts on it. You will use the bolt (or nut) for your gauge.

What degree are brake line flares?

The 45-degree inverted flare is the most common style of flare used in automotive hard lines like brake, fuel, and transmission fluid transfer.

Is copper nickel brake line safe?

While steel lacks inherent rust and corrosion resistance, brake lines made from nickel-copper alloy offer that protection in spades. Made from a mix of around 90-percent copper and 10-percent nickel for added strength, nickel-copper brake lines are practically impervious to rust and highly resistant against corrosion.

Do front brake lines have to be the same length?

The brake lines in any car are going to vary not only in length from wheel to wheel but also in diameter from front to back. The length of the brake lines does not affect braking power. This is because the hydraulic pressure continues to be equal as long as the fluid levels are adequate and there is no air in the line.
